MSI PRO H610M-S DDR4 Motherboard Intel H610 LGA 1700 DDR4 64GB PCIe 4.0 HDMI mATX – PRO H610M-S DDR4
In Stock
In Stock
Add to Wishlist
Add to Wishlist
Complete Your Build
This item: MSI PRO H610M-S DDR4 Motherboard Intel H610 LGA 1700 DDR4 64GB PCIe 4.0 HDMI mATX - PRO H610M-S DDR4
In Stock
Original price was: ₱5,160.00.₱4,495.00Current price is: ₱4,495.00.
Original price was: ₱5,160.00.₱4,495.00Current price is: ₱4,495.00.
Original price was: ₱13,400.00.₱11,695.00Current price is: ₱11,695.00.
Original price was: ₱16,700.00.₱14,595.00Current price is: ₱14,595.00.
Original price was: ₱25,900.00.₱22,595.00Current price is: ₱22,595.00.
- Supports 12th/13th/14th Gen Intel Core, Pentium Gold, Celeron (LGA 1700)
- 2x DDR4 up to 64GB, 3200 MHz, Dual-Channel
- Core Boost for enhanced multi-core performance
- Memory Boost for stable, high-speed data signals
- PCIe 4.0 x16 with Steel Armor for durability
- 1x M.2 (PCIe 3.0 x4), 2x SATA 6Gb/s
- Audio Boost with Realtek ALC897 Codec, 7.1-channel
- Realtek RTL8111H Gigabit LAN, HDMI 1.4 (4K 30Hz)
- mATX form factor, SKU: PRO H610M-S DDR4
Description
MSI PRO H610M-S DDR4 Motherboard
The MSI PRO H610M-S DDR4 motherboard is designed for efficient and reliable performance, supporting 12th, 13th, and 14th Gen Intel Core, Pentium Gold, and Celeron processors on the LGA 1700 socket. Its compact mATX form factor houses up to 64GB of DDR4 memory at 3200 MHz, optimized by Memory Boost for stable, high-speed data transfer. Core Boost technology enhances multi-core performance with a premium power layout, while the PCIe 4.0 x16 slot, reinforced with Steel Armor, ensures durability for heavy graphics cards. The motherboard features one M.2 slot with PCIe 3.0 x4 support and two SATA 6Gb/s ports for versatile storage options. Audio Boost with Realtek ALC897 Codec delivers immersive 7.1-channel high-definition sound, complemented by Realtek RTL8111H Gigabit LAN for reliable networking. Connectivity includes multiple USB 5Gbps Type-A ports and an HDMI 1.4 output for 4K 30Hz displays. FROZR AI Cooling intelligently adjusts fan speeds for optimal thermal management, and EZ Debug LEDs simplify troubleshooting. Tailored for professional workflows, this motherboard combines user-friendly design with robust components for long-lasting performance.
| Specification | Details |
|---|---|
| Chipset | Intel H610 |
| CPU Support | Intel Core 14th/13th/12th Gen, Pentium Gold, Celeron processors for LGA 1700 Socket |
| Memory | 2x DDR4, up to 64GB, 3200/3066/3000/2933/2800/2667/2400/2133/1866 MHz, Dual-Channel, non-ECC, un-buffered |
| Onboard Graphics | 1x HDMI 1.4 with HDR (4K 30Hz) |
| Expansion Slots | 1x PCIe 4.0 x16 (From CPU), 1x PCIe 3.0 x1 (From Chipset) |
| Audio | Realtek ALC897 Codec, 7.1-Channel High Definition Audio |
| Storage | 1x M.2 (PCIe 3.0 x4, 2280/2260/2242), 2x SATA 6Gb/s |
| USB | 4x USB 2.0 (Rear), 4x USB 2.0 (Front), 2x USB 5Gbps Type A (Rear), 2x USB 5Gbps Type A (Front) |
| LAN | Realtek RTL8111H Gigabit LAN |
| Internal I/O | 1x ATX_PWR, 1x CPU_PWR, 1x CPU Fan, 1x System Fan, 2x JFP, 1x JCI, 1x JAUD, 1x JCOM, 1x TPM 2.0, 4x USB 2.0 |
| LED Features | 4x EZ Debug LED |

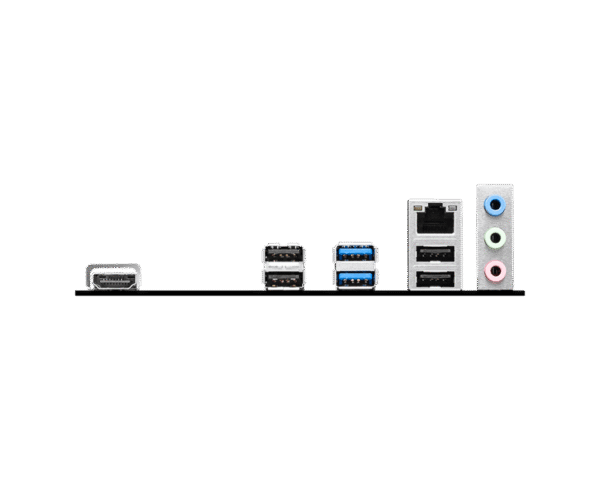

| Back Panel Ports | HDMI, 2x USB 5Gbps Type-A, 4x USB 2.0, LAN, Audio Connectors |
| Operating System | Windows 11 64-bit, Windows 10 64-bit |
| Form Factor | mATX, 200mm x 236.16mm |
Additional information
| Weight | 0.9 kg |
|---|---|
| Dimensions | 20 × 24 × 6 cm |
| Brand | MSI |
| Desktop RAM | DDR4 |
| Socket | LGA 1700 CPU |
