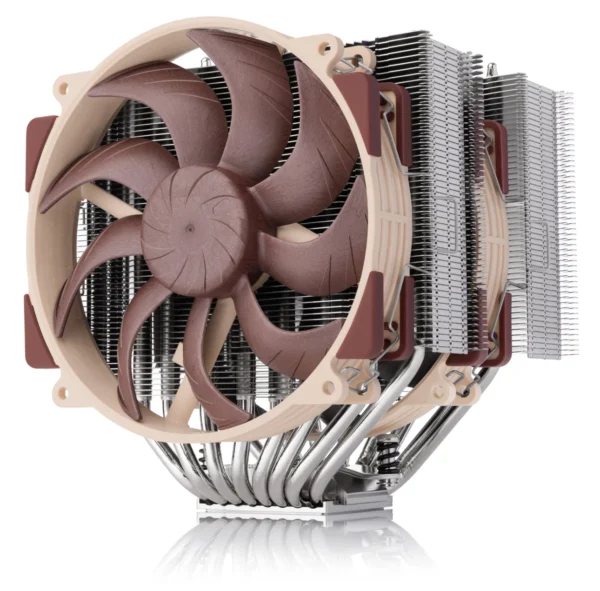

Noctua NH-D15 G2 Low Base Convexity Dual Tower CPU Cooler with Dual NF-A14x25r G2 Fans – NH-D15 G2 LBC

The Evolution of a Legend: Next-Generation Flagship Air Cooling

The Noctua NH-D15 G2 LBC represents the pinnacle of thermal engineering, serving as the heavily anticipated and further improved second generation of Noctua’s iconic NH-D15. Building upon a legacy that defined high-end PC cooling for an entire decade, the G2 variant incorporates state-of-the-art speed-offset NF-A14x25r G2 PWM fans, eight high-capacity heatpipes, and meticulously optimized asymmetrical fin-stacks. Designed to handle extreme heat-loads of 250W and beyond, this flagship cooler achieves unprecedented quiet cooling performance, effortlessly rivaling the thermal efficiency of high-end AIO water cooling solutions while maintaining supreme reliability.

Specialised Low Base Convexity (LBC) Optimisation for Flat CPUs

Recognizing that modern processor platforms vary significantly in heatspreader flatness and hotspot locations, the NH-D15 G2 is engineered in dedicated variants. The specialised Low Base Convexity (LBC) version is meticulously optimized to deliver flawless contact quality on relatively flat CPUs. It is ideally tailored for AMD AM5 processors—even without offset mounting—as well as AM4, LGA2066, and LGA2011 systems, direct-die setups, or custom lapped IHS configurations. By ensuring optimal thermal contact right across the core, the LBC variant minimizes thermal resistance, unlocking maximum turbo clock headroom and peak efficiency.

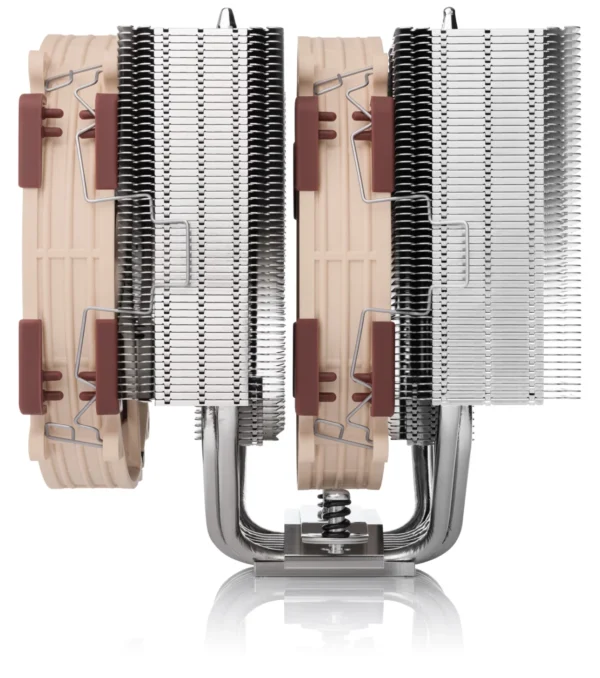

Advanced Asymmetrical Fin-Stacks and Increased Fin Density

Through careful computer modeling and aerodynamic tuning, the NH-D15 G2 maximizes the superior pressure and airflow characteristics of the new NF-A14x25r G2 fans. The fin-spacing has been tightened from 1.9mm down to 1.6mm, allowing engineers to integrate 26 extra fins and expand total fin surface area by 20 percent. Furthermore, the front fin-stack width has been trimmed by 5mm to balance thermal loading evenly between both cooling towers, all while slightly reducing overall depth compared to the original model for superior component clearance.

Eight Heatpipes and Soldered Copper-Aluminium Interface

To conquer extreme thermal dissipation demands, the NH-D15 G2 upgrades to eight high-performance 6mm heatpipes, expanding thermal capacity significantly over the legacy six-heatpipe design. This enhancement shines brightest under severe workloads exceeding 250W, where temperature deltas drop noticeably. To ensure long-term durability and prevent the thermal degradation common in press-fitted designs, the aluminium cooling fins are entirely soldered to the copper heatpipes, maintaining an uncompromised thermal interface across years of rigorous thermal cycling.

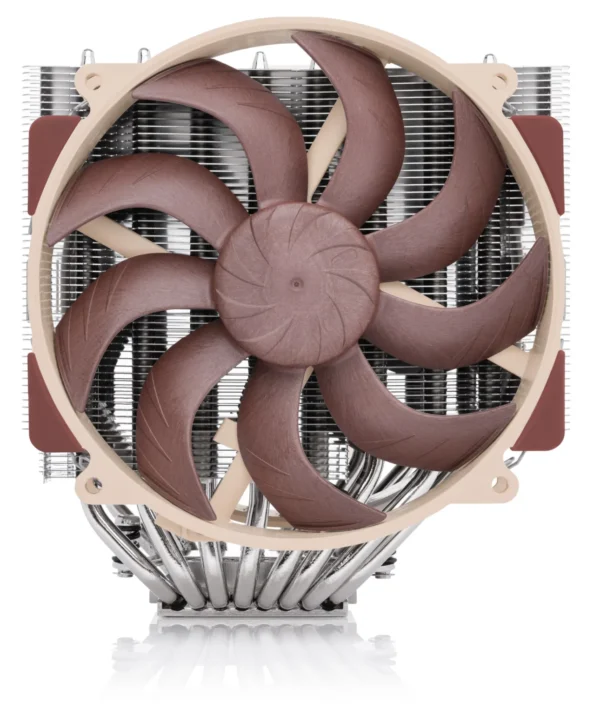

Dual NF-A14x25r G2 PWM Fans with Speed-Offset Acoustics

At the driving heart of the cooler are two custom-engineered NF-A14x25r G2 PWM fans that set a new benchmark for round-frame 140mm performance-to-noise efficiency. Because dual-fan push-pull setups running at identical speeds often trigger undesirable acoustic harmonics or humming phenomena, the two fans feature a slight speed offset of approximately 25 RPM. This intelligent offset harmonizes the acoustic profile into a smooth, agreeable sound signature. Powered by comprehensive PWM control down to 300 RPM and featuring 0% PWM stop capability for semi-passive silent idle modes, these fans deliver extraordinary versatility.

SecuFirm2+™ Torx-Based Mounting and Comprehensive Premium Accessories

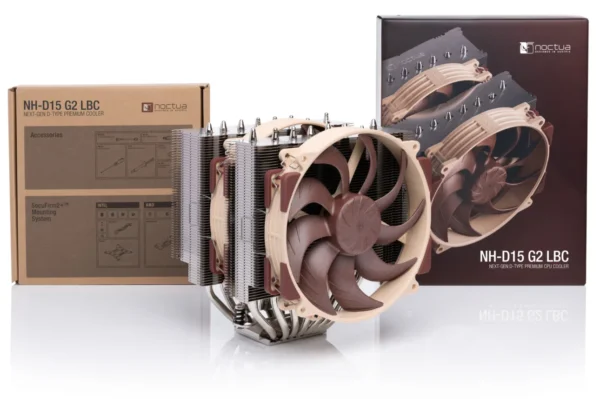

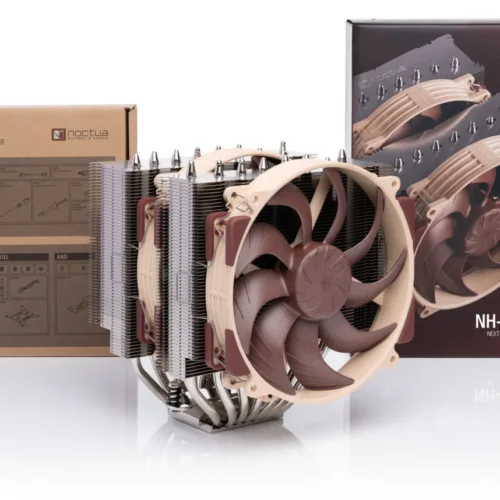

The NH-D15 G2 LBC is equipped with Noctua’s professional-grade SecuFirm2+™ multi-socket mounting system utilizing Torx®-head fasteners for superior handling, longevity, and secure pressure application, complete with the included NM-SD1 T20 screwdriver. Broad socket compatibility covers AMD AM5 and AM4 alongside Intel LGA1851, LGA1700, LGA1200, and LGA115x sockets. The rich accessory bundle further includes premium NT-H2 thermal compound, an NA-TPG1 thermal paste guard for AM5 to keep excess paste cleanly contained, Low-Noise Adaptors, cleaning wipes, and a metal Noctua case-badge, all backed by a full 6-year manufacturer’s warranty.
