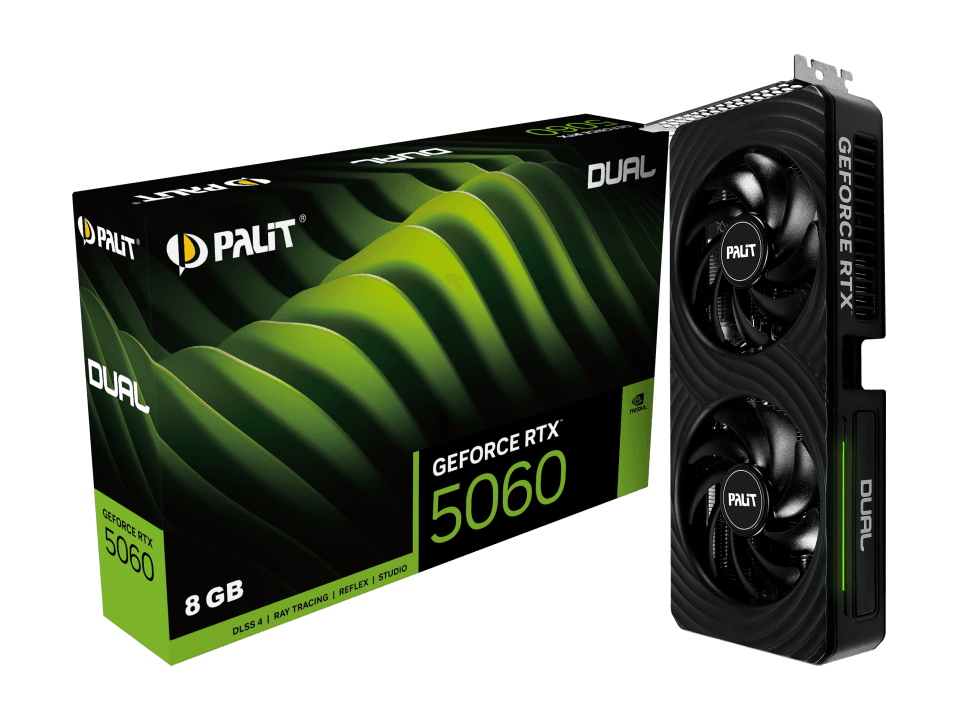

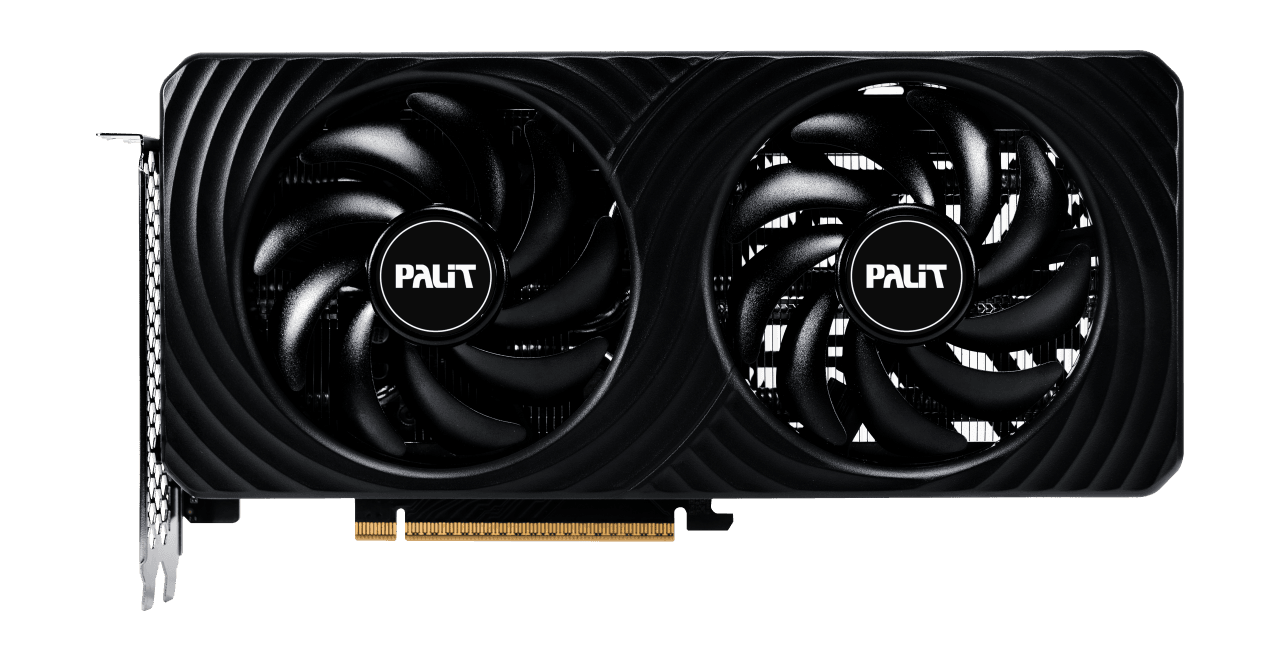

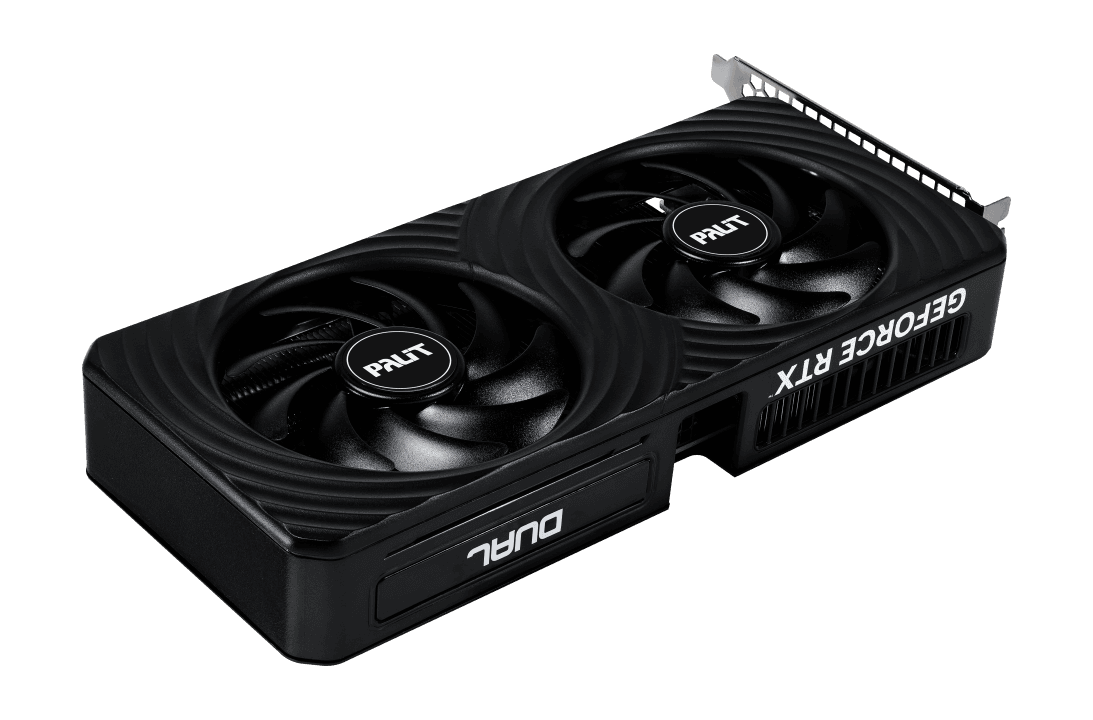

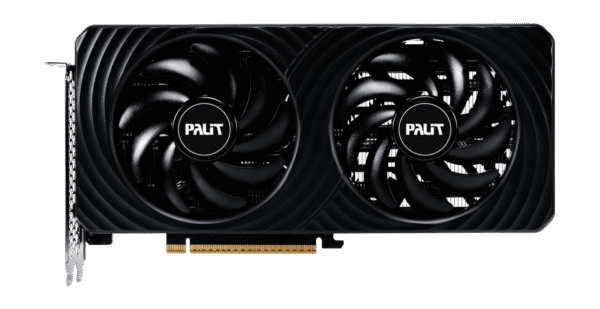

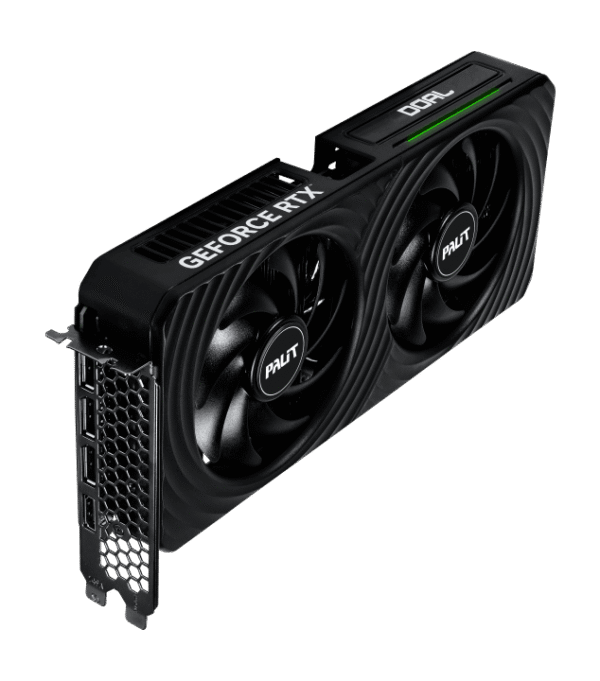

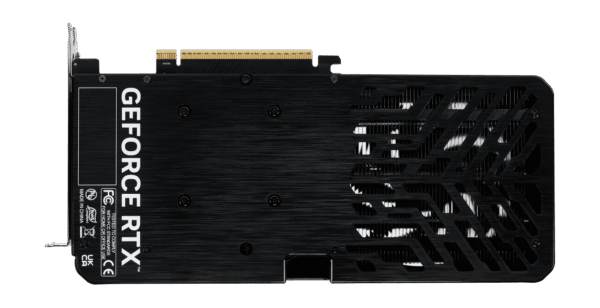

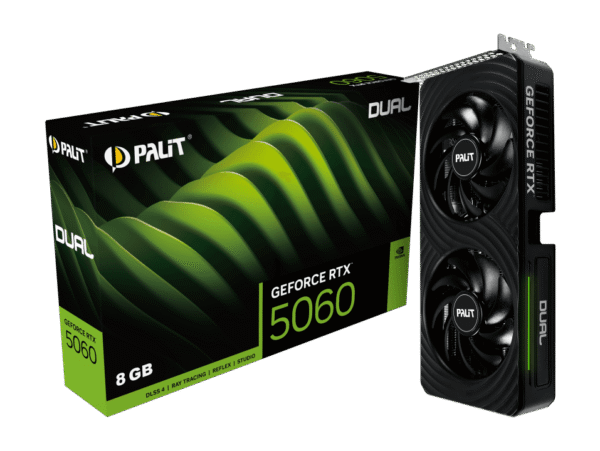

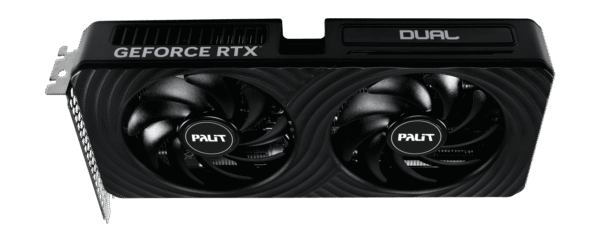

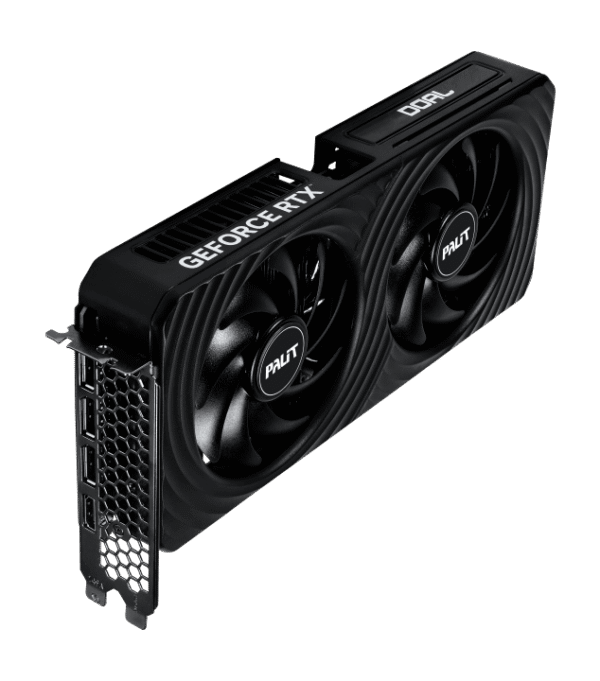

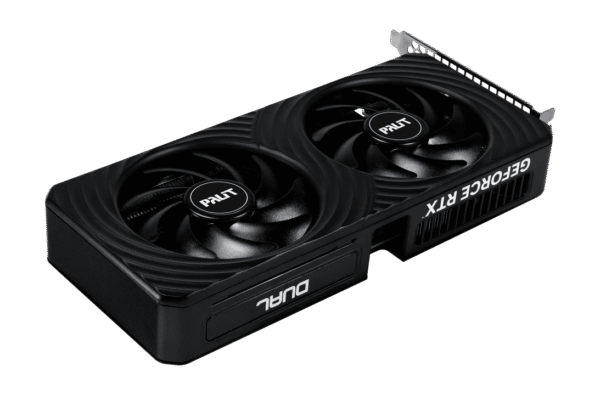

PALIT GeForce RTX 5060 Dual 8GB GDDR7 Blackwell Graphics Card Dual Fan DLSS 4 – NE75060019P1-GB2063D
- NVIDIA Blackwell RTX 5060 with 3840 CUDA cores for 1080p/1440p gaming
- 8GB GDDR7 memory at 28 Gbps with 448 GB/s bandwidth
- Boost clock up to 2497 MHz for smooth performance

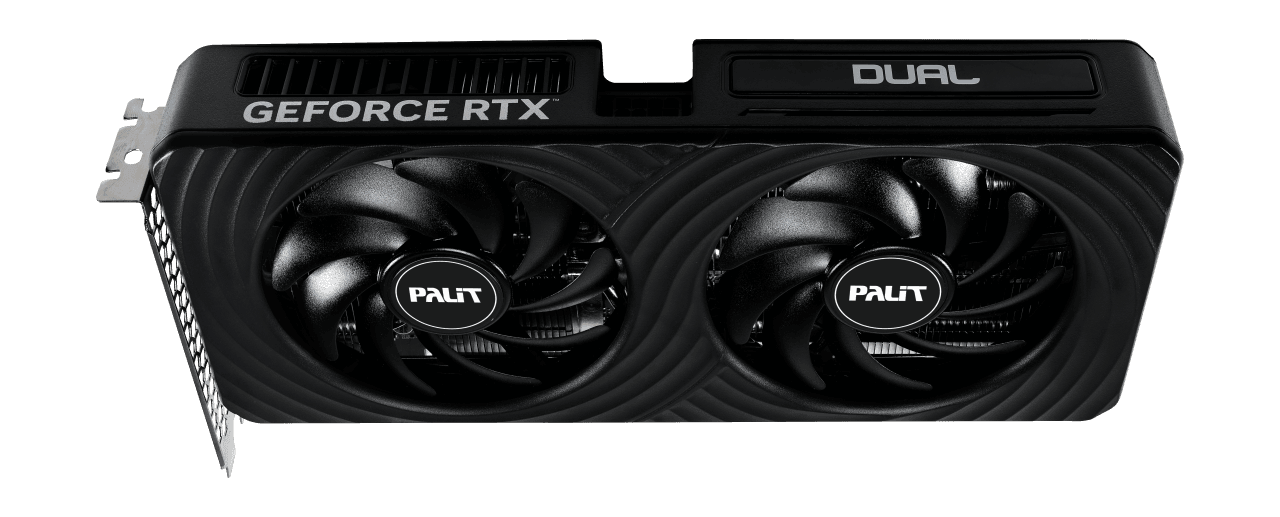

- Dual-fan cooling with 0-dB Tech for silent operation
- NVIDIA DLSS 4, Reflex 2, and 4th-gen ray tracing for stunning visuals

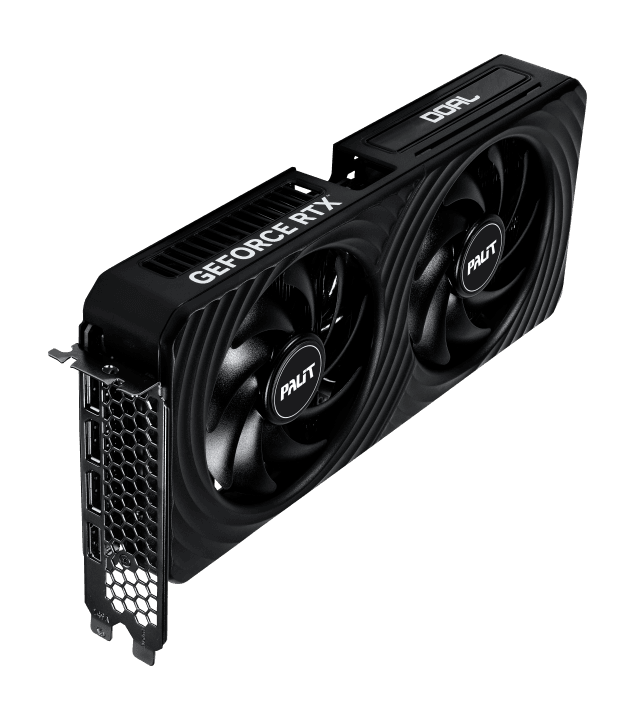

- Compact 2-slot design with customizable LED lighting

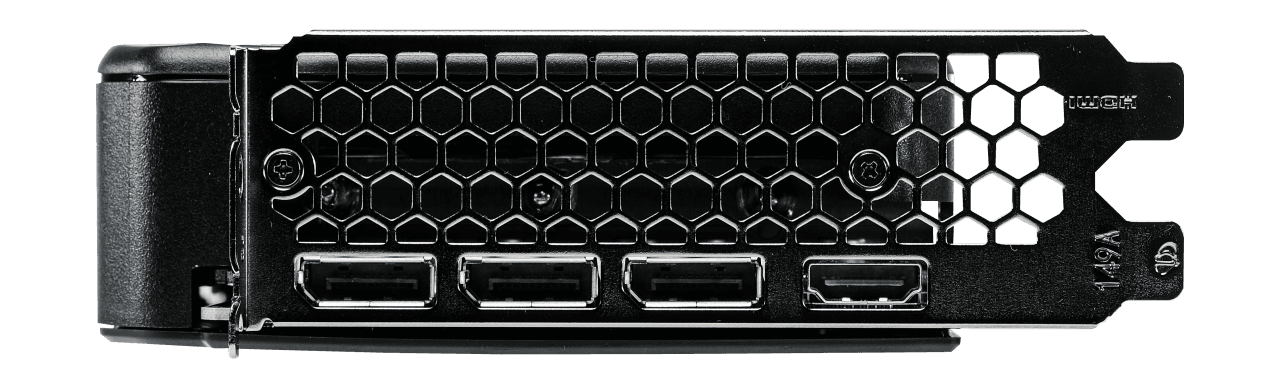

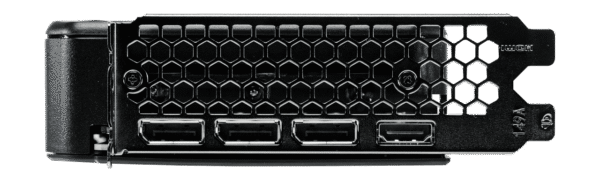

- 3 DisplayPort 2.1b and 1 HDMI 2.1b for 8K multi-monitor support
Description

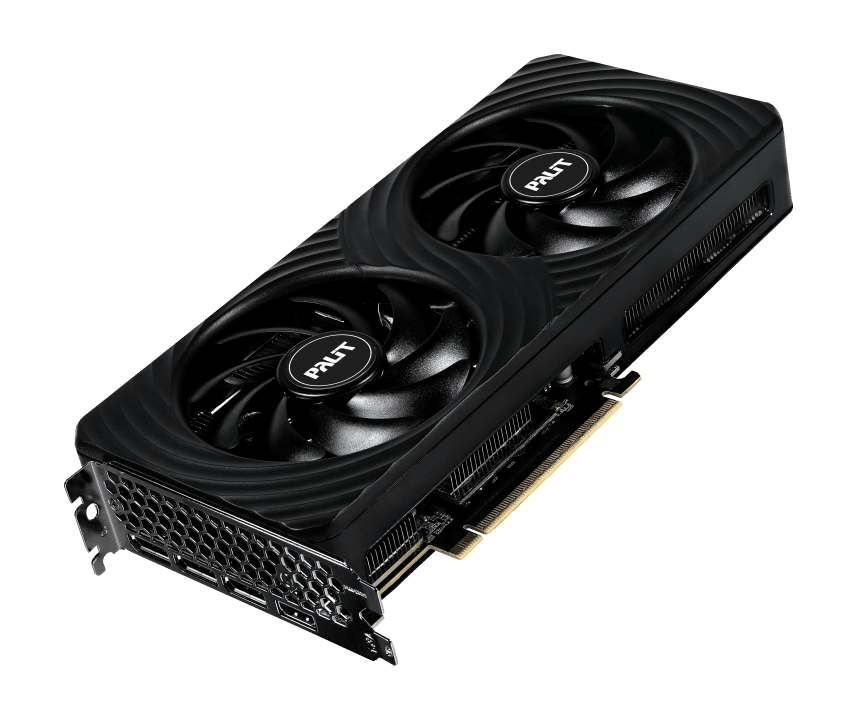

Enhance your gaming setup with the PALIT GeForce RTX 5060 Dual, a high-performance graphics card powered by NVIDIA’s advanced Blackwell architecture, designed for vibrant 1080p and capable 1440p gaming in a compact package. Featuring 3840 CUDA cores and a boost clock of 2497 MHz, this card delivers smooth performance for modern games and creative workloads, supported by a base clock of 2280 MHz. Its 8GB GDDR7 memory, operating at 28 Gbps on a 128-bit bus, provides a robust 448 GB/s bandwidth for high-resolution textures and AI-driven tasks, enhanced by NVIDIA DLSS 4 for AI-accelerated frame rates and stunningly realistic visuals. The dual-fan cooling system, equipped with composite heat pipes, a copper base, and 0-dB Tech for silent operation at idle, ensures efficient thermal performance in a compact form factor. Measuring just 262.1mm in length with a 2-slot height, the card fits seamlessly into compact and ATX builds, while customizable LED lighting adds a dynamic aesthetic to your PC. With PCIe 5.0 connectivity and support for up to four displays at 4K at 480Hz or 8K at 120Hz via three DisplayPort 2.1b and one HDMI 2.1b, it’s built for future-proof multi-monitor setups. Advanced features like 4th-gen ray tracing cores, 5th-gen Tensor cores, NVIDIA Reflex 2, and AV1 encoding elevate gaming and streaming experiences. Requiring a single 8-pin power connector and a 550W PSU with a 145W power draw, it offers energy-efficient performance. The PALIT GeForce RTX 5060 Dual combines next-generation technology, efficient cooling, and a compact design, making it an ideal choice for gamers and creators seeking performance and versatility.
| Specification | Details |
|---|---|
| Graphics Processing | GeForce RTX™ 5060 |
| Memory Amount | 8 GB |
| Memory Interface | 128 bits |
| DRAM Type | GDDR7 |
| Graphics Clock | 2280 MHz |
| Boost Clock | 2497 MHz |
| Memory Clock | 28 Gbps |
| CUDA Cores | 3840 |
| Memory Bandwidth | 448 GB/sec |
| Microsoft DirectX | Microsoft DirectX® 12 Ultimate |
| OpenGL | 4.6 |
| Bus Support | PCI-E 5.0 |
| HDMI | HDMI 2.1b |
| DisplayPort | DP2.1b x 3 |
| Maximum Digital Resolution | 4K at 480Hz or 8K at 120Hz with DSC |
| Height | 2 Slot |

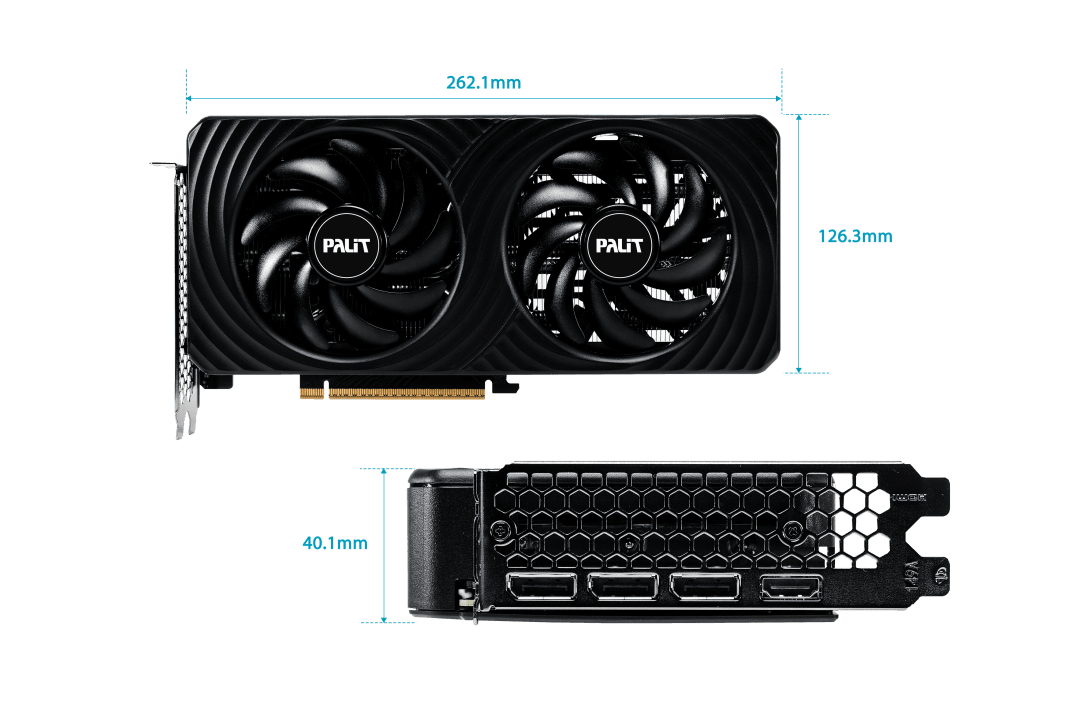

| Board Size | 262.1 x 126.3 x 40.1 mm |
| Graphics Card Power | 145 W |
| Recommended System Power | 550 W |

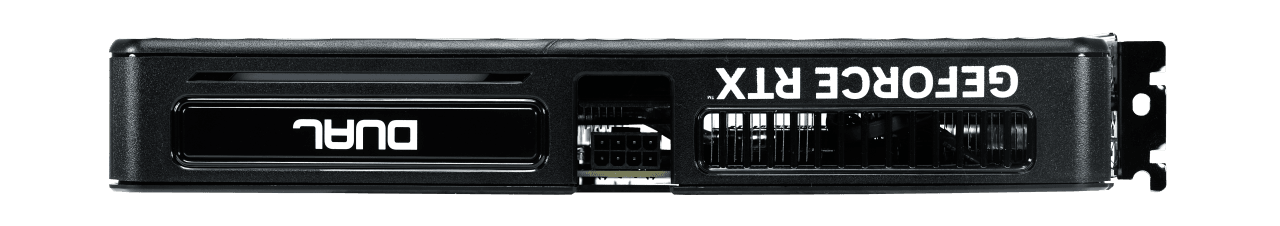

| Supplementary Power Connectors | 8-pin x 1 |
| Cooling Features | Composite Heat Pipe, Copper Base, DrMOS, 0-dB TECH |
| NVIDIA Architecture | Blackwell |
| Ray Tracing Cores | 4th Generation |
| Tensor Cores | 5th Generation |
| NVIDIA Features | NVIDIA DLSS 4, NVIDIA Reflex 2, NVIDIA Broadcast, Resizable BAR, NVIDIA App, NVIDIA Ansel, NVIDIA FreeStyle, NVIDIA ShadowPlay, NVIDIA Highlights, NVIDIA G-SYNC, Game Ready Drivers, NVIDIA Studio Drivers, NVIDIA Omniverse, RTX Remix, NVIDIA GPU Boost, Vulkan 1.4, OpenGL 4.6 |
| NVIDIA Encoder (NVENC) | 1x 9th Generation |
| NVIDIA Decoder (NVDEC) | 1x 6th Generation |
| AV1 Support | AV1 Encode, AV1 Decode |
| CUDA Capability | 12.8 |
| VR Ready | Yes |
| Multi Monitor | 4 |
| Accessories | Quick guide |
Additional information
| Weight | 2.3 kg |
|---|---|
| Dimensions | 44 × 26 × 10 cm |
| Brand | Palit |
