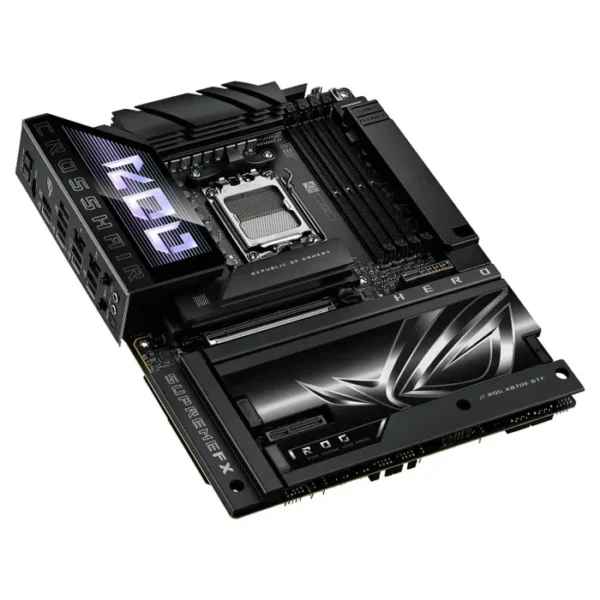

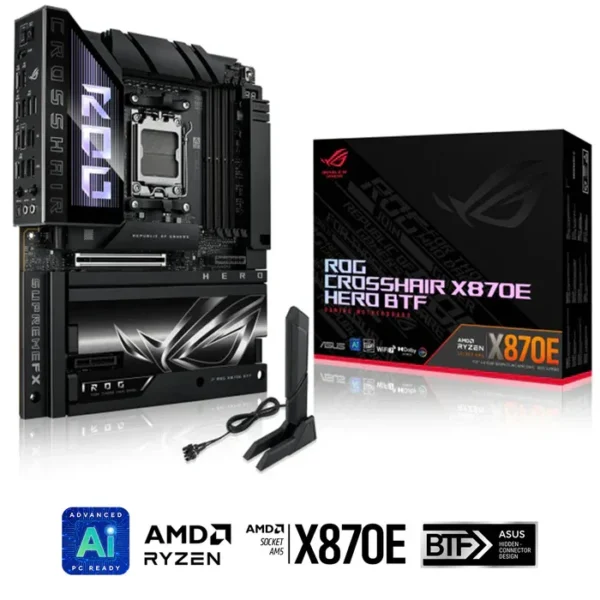

Asus ROG Crosshair X870E Hero BTF ATX Motherboard AMD X870E Chipset DDR5 PCIe 5.0 WiFi 7 USB4 – ROG CROSSHAIR X870E HERO BTF
In Stock
In Stock
Add to Wishlist
Add to Wishlist
Complete Your Build
This item: Asus ROG Crosshair X870E Hero BTF ATX Motherboard AMD X870E Chipset DDR5 PCIe 5.0 WiFi 7 USB4 - ROG CROSSHAIR X870E HERO BTF
In Stock
Original price was: ₱51,740.00.₱44,995.00Current price is: ₱44,995.00.
Original price was: ₱51,740.00.₱44,995.00Current price is: ₱44,995.00.
Original price was: ₱16,700.00.₱14,595.00Current price is: ₱14,595.00.
Original price was: ₱16,100.00.₱14,995.00Current price is: ₱14,995.00.
Original price was: ₱36,400.00.₱31,695.00Current price is: ₱31,695.00.
1 × ASUS RT-AX59U Dual-Band WiFi 6 Router
In Stock
Original price was: ₱5,900.00.₱5,495.00Current price is: ₱5,495.00.
- BTF hidden-connector design for a clean, cable-free build
- Supports AMD Ryzen 9000, 8000, 7000 Series CPUs
- 18+2+2 power stages for extreme overclocking
- DDR5 up to 8600+ MT/s with NitroPath DRAM Technology
- AI Cache Boost for up to 29% faster LLM performance
- WiFi 7 and dual USB4 Type-C (40Gbps) for ultra-fast connectivity
- PCIe 5.0 for next-gen GPUs and SSDs
- Polymo Lighting II for customizable aesthetics
- ROG SupremeFX audio with Dolby Atmos
- SKU: ROG CROSSHAIR X870E HERO BTF
Description

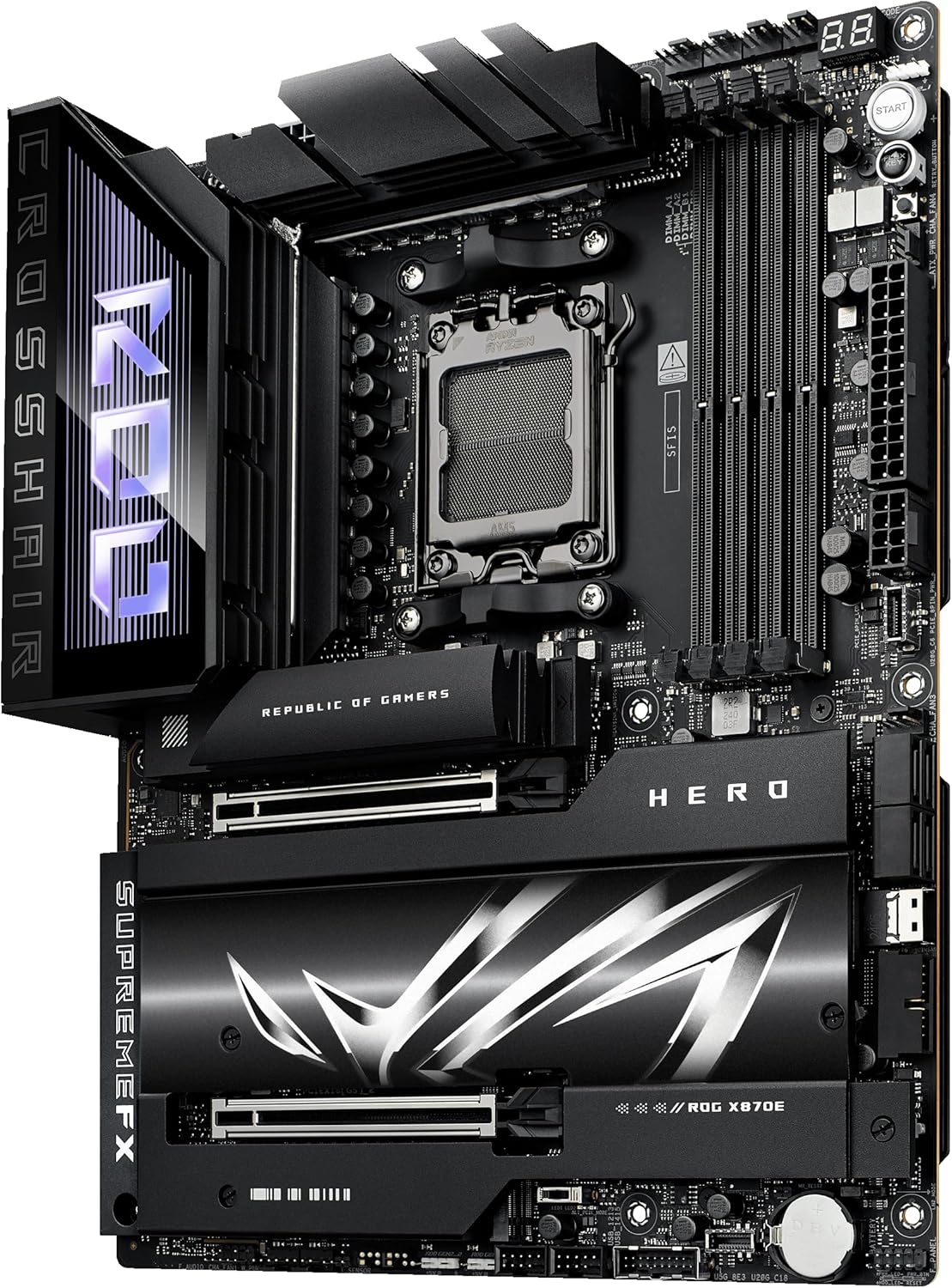

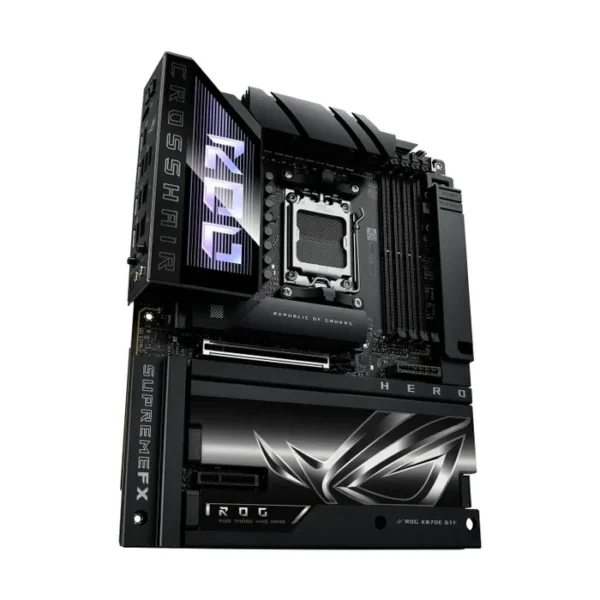

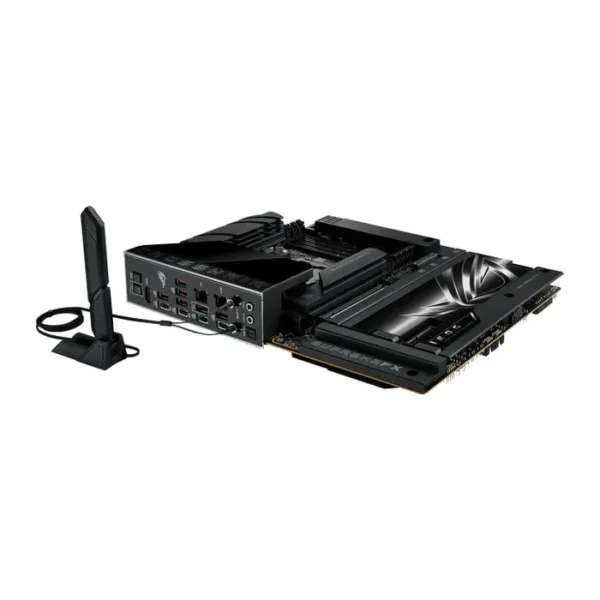

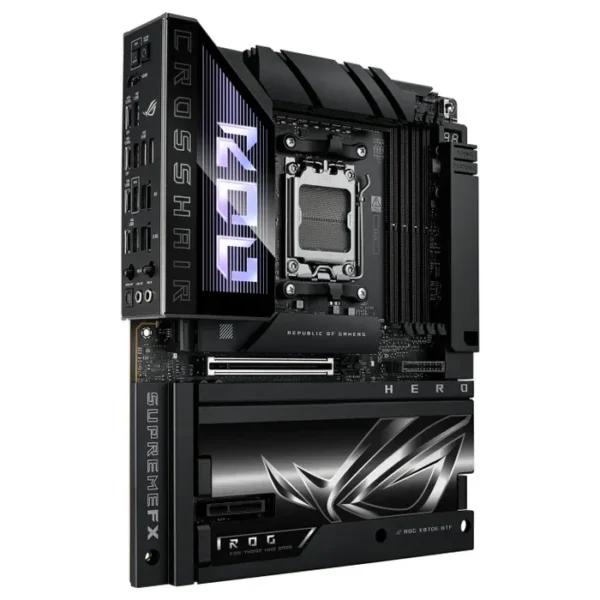

The ROG Crosshair X870E Hero BTF redefines high-performance PC building with its innovative Back-to-the-Future (BTF) hidden-connector design, delivering a sleek, cable-free aesthetic for AMD Ryzen 9000, 8000, and 7000 Series processors. This ATX motherboard combines cutting-edge technology with effortless customization, featuring a robust 18+2+2 power stage solution for extreme overclocking and NitroPath DRAM Technology for DDR5 memory speeds up to 8600+ MT/s. Its graphics card high-power slot supports up to 600 watts, eliminating visible power cables for a clean look. Enhanced with AI-driven features like AI Cache Boost for up to 29% faster LLM performance, AI Overclocking, and AI Cooling II, this motherboard ensures optimal performance and thermals. Connectivity excels with WiFi 7, dual USB4 Type-C ports at 40Gbps, and PCIe 5.0 for next-gen SSDs and GPUs. Polymo Lighting II adds vibrant, customizable flair, while ROG SupremeFX audio with Dolby Atmos delivers immersive sound. Designed for both novice and expert builders, the ROG Crosshair X870E Hero BTF offers unmatched power, style, and ease of use for a future-ready gaming rig.
| Specification | ROG Crosshair X870E Hero BTF |
|---|---|
| SKU | ROG CROSSHAIR X870E HERO BTF |
| Brand | ROG |
| CPU | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors |
| Chipset | AMD X870E |
| Memory | 4 x DIMM slots, max. 256GB, DDR5, up to 8200+MT/s (OC) with Ryzen™ 9000, 8600+MT/s (OC) with Ryzen™ 8000, 8000+MT/s (OC) with Ryzen™ 7000, ECC and Non-ECC, Un-buffered, Dual Channel, Supports EXPO™, DIMM Fit, DIMM Fit Pro, NitroPath DRAM Technology, AEMP |
| Graphics | 1 x HDMI™ port (4K@60Hz), 2 x USB4® (40Gbps) ports support USB Type-C® display outputs (max. 4K@60Hz) |
| Expansion Slots | 1 x PCIe 5.0 x16 SafeSlot (x16 or x8/x4/x4 modes, Ryzen™ 9000 & 7000), 1 x PCIe 4.0 x16 (x8, Ryzen™ 8700/8600/8400), 1 x PCIe 4.0 x16 (x4, Ryzen™ 8500/8300), 1 x PCIe 4.0 x4 slot (X870E Chipset) |
| Storage | 5 x M.2 slots (3 x 2280 PCIe 5.0 x4, 2 x 2280 PCIe 4.0 x4), 4 x SATA 6Gb/s ports, Supports RAID 0/1/5/10 (Ryzen™ 9000), RAID 0/1 (Ryzen™ 8000), RAID 0/1/10 (Ryzen™ 7000) |
| Ethernet | 1 x Intel® 2.5Gb Ethernet, 1 x Realtek 5Gb Ethernet, ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 7 (MediaTek MT7927), 2x2 802.11be, 2.4/5/6GHz, 320MHz bandwidth, Bluetooth® v5.4 |
| USB | Rear: 2 x USB4® (40Gbps) Type-C®, 8 x USB 10Gbps (6 x Type-A, 2 x Type-C®); Front: 2 x USB 20Gbps Type-C®, 4 x USB 5Gbps, 4 x USB 2.0 |
| Audio | ROG SupremeFX 7.1 Surround Sound, ALC4082, ESS® ES9219 QUAD DAC, 120 dB SNR playback, 110 dB SNR recording, up to 32-Bit/384kHz, Dolby Atmos |

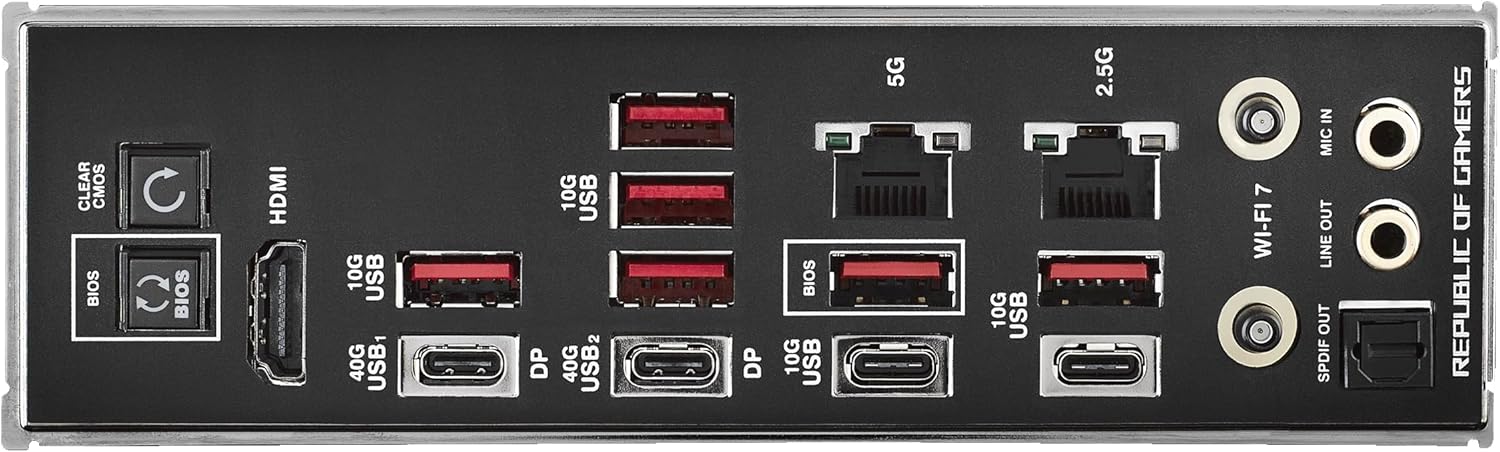

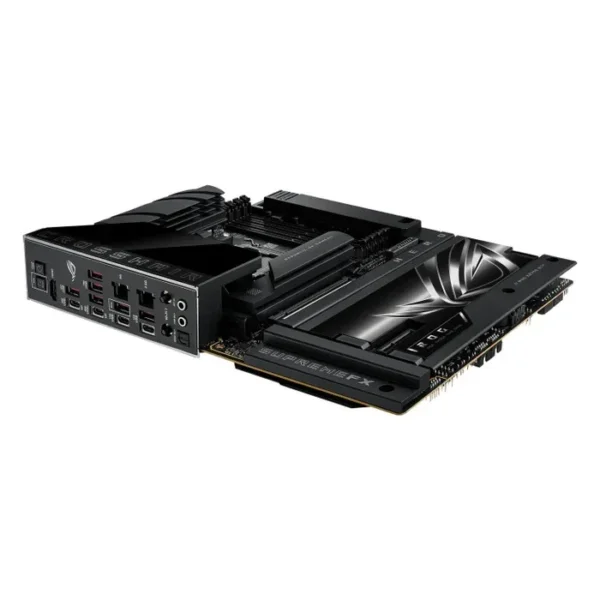

| Back Panel I/O | 2 x USB4® (40Gbps) Type-C®, 8 x USB 10Gbps (6 x Type-A, 2 x Type-C®), 1 x HDMI™, 1 x Wi-Fi module, 1 x Intel® 2.5Gb Ethernet, 1 x Realtek 5Gb Ethernet, 2 x Gold-plated audio jacks, 1 x Optical S/PDIF out, 1 x BIOS FlashBack™ button, 1 x Clear CMOS button |
| Internal I/O | 1 x 24-pin Main Power, 2 x 8-pin +12V CPU Power, 1 x Graphics card high power slot, 1 x 12V-2X6 Auxiliary power, 5 x M.2 slots, 4 x SATA 6Gb/s, 2 x USB 20Gbps Type-C®, 4 x USB 5Gbps, 4 x USB 2.0, 1 x 4-pin CPU Fan, 1 x 4-pin CPU OPT Fan, 1 x 4-pin AIO Pump, 4 x 4-pin Chassis Fan, 1 x W_PUMP+, 3 x Addressable Gen2 headers, 1 x Front Panel Audio, 1 x Start button, 1 x 10-1 pin System Panel, 1 x Thermal Sensor |
| Special Features | BTF Hidden-connector Design, 18+2+2 Power Stages (110A+110A+80A), AI Cache Boost, AI Overclocking, AI Cooling II, AI Networking II, Polymo Lighting II, M.2 Q-Latch, Q-Release Slim, Q-Antenna, Q-Code, Q-LED, BIOS Q-Dashboard, ASUS DriverHub, Dolby Atmos, AIDA64 Extreme (1-year), Aura Sync |
| BIOS | 256Mb Flash ROM, UEFI AMI BIOS |
| Operating System | Windows® 11 |
| Form Factor | ATX, 12 inch x 9.6 inch (30.5 cm x 24.4 cm) |
Additional information
| Weight | 4 kg |
|---|---|
| Dimensions | 38 × 34 × 12 cm |
| Brand | Asus |
| Desktop RAM | DDR5 |
| Socket | LGA 1851 CPU |
