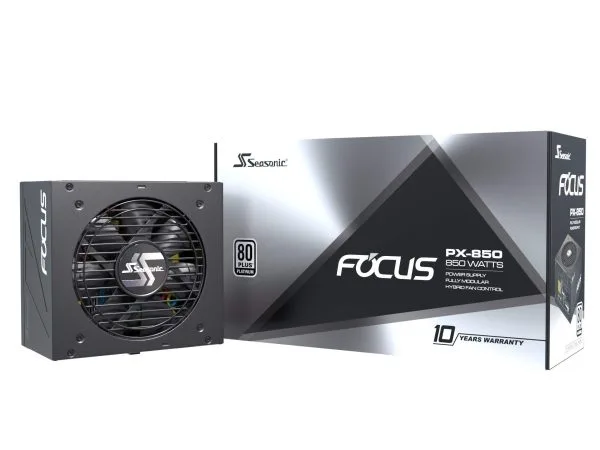

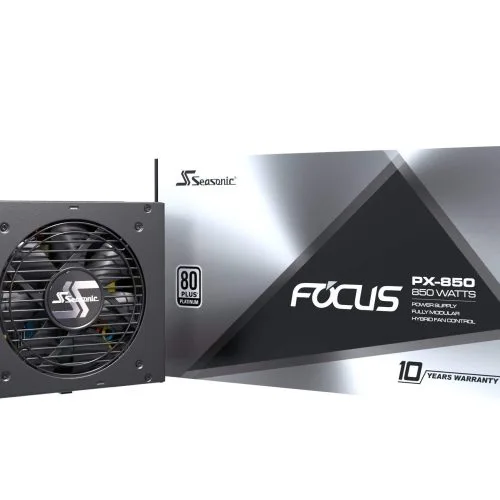

Seasonic FOCUS PX 850W 80+ Platinum Full Modular ATX12V Power Supply 10 Year Warranty – SSR-850PX
In Stock
In Stock
Add to Wishlist
Add to Wishlist
- 80PLUS® Platinum certification for high energy efficiency and reduced power consumption
- Fully modular cable design for a tidy and customizable build
- 850W continuous power for demanding gaming and professional systems
- 120mm Fluid Dynamic Bearing fan with Fanless Mode for quieter operation
- Advanced safety features: OPP, OVP, UVP, OCP, OTP, SCP
- <
Description
FOCUS PLUS PLATINUM
Seasonic engineers have created a brand new product line based on advanced technology emanating from many years of intensive active research. The result of this development is the solid FOCUS+ Series, which implements modern design and shows outstanding electrical performance. This power supply is small and entirely modular, which will be hard to resist. It is available in 80 PLUS® Platinum and Gold efficiency ratings.
Correction Notice:
Some of our FOCUS PLUS Platinum products are being sold in a packaging box where the 80 PLUS® Efficiency rating in the specifications section is mistakenly printed as 80 PLUS® Gold. We have already taken measures to correct this but we could not recall all the products that had this mistake.
To correctly identify the efficiency level of Seasonic power supplies, we suggest customers to check the 80 PLUS® label on the front cover of the box.
We apologize for any inconvenience caused.
80 PLUS® PLATINUM
The FOCUS PLUS Platinum Series achieves 80 PLUS® Platinum certification with its 92% efficiency at 50% system load.
10 Years
Warranty
Full Modular
Cabling
Dimensions
140 mm (L) x 150 mm (W) x 86 mm (H)
| Specification | Details |
|---|---|
| Efficiency Rating | 80PLUS® Platinum |
| Cybenetics Efficiency Level | ETA-A |
| Cybenetics Noise Level | Lambda A- |
| Form Factor | ATX/EPS |
| Dimensions | 140 × 150 × 86 mm |
| Fan Size | 120 mm |
| Fan Control | S3FC (including Fanless Mode) |
| Fan Bearing | Fluid Dynamic Bearing |
| Life Expectancy | 50,000 hours at 40 °C, 15 % - 65 % RH |
| Modularity | Fully Modular |
| Cable Type | Flat Black Cables |
| Operating Temperature | 0 - 50 °C (derating from 100% to 80% from 40 °C to 50 °C linearly) |
| MTBF | 100,000 hours (excluding fan) |
| AC Input | 100 V - 240 V, 11 - 5.5 A, 50 Hz - 60 Hz |
| Protection Features | OPP, OVP, UVP, OCP, OTP, SCP |
| Safety and EMC | cTUVus, TUV, CB, CCC, BSMI, EAC, CE |
| Environmental Compliance | Energy Star, RoHS, WEEE, ErP Lot 6, REACH |
| Warranty | 10 Years |
| DC Output - +3.3 V | 20 A, 100 W |
| DC Output - +5 V | 20 A, 100 W |
| DC Output - +12 V | 70 A, 840 W |
| DC Output - -12 V | 0.3 A, 3.6 W |
| DC Output - +5 VSB | 3 A, 15 W |
| Total Continuous Power | 850 W |
| Cable Information - Mainboard (24/20 pins) | 610 mm, 1 connector, 1 cable |
| Cable Information - CPU (8/4 pins) | 650 mm, 1 connector, 2 cables |
| Cable Information - PCIe (8/6 pins) | 750 mm, 3 connectors, 2 cables |
| Cable Information - SATA | 810 mm, 4 connectors, 2 cables |
| Cable Information - SATA (extra) | 570 mm, 2 connectors, 1 cable |
| Cable Information - Molex | 690 mm, 3 connectors, 1 cable |
| Cable Information - Molex to FDD Adapter | 101 mm, 1 connector, 1 cable |
Additional information
| Weight | 3 kg |
|---|---|
| Dimensions | 33 × 21 × 14 cm |
| Brand | Seasonic |
