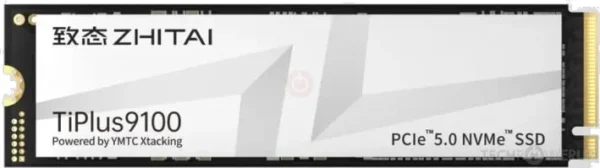

YMTC Zhitai TiPlus9100 4TB PCIe 5.0 x4 NVMe 2.0 M.2 2280 SSD – ZTSS3CB12D6EMC

Unprecedented Storage Performance with PCIe 5.0 x4 Architecture

The YMTC Zhitai TiPlus 9100 marks a monumental leap in the evolution of solid-state storage, fully harnessing the absolute maximum bandwidth of the cutting-edge PCI-Express 5.0 x4 interface. By utilizing the highly optimized NVMe 2.0 protocol, this storage solution completely obliterates old performance ceilings. It delivers breathtaking Sequential Read speeds of up to 11,950 MB/s alongside astonishing Sequential Write speeds reaching up to 10,700 MB/s. This extreme level of data throughput translates directly to instantaneous operating system boot times, virtually zero loading screens in the most demanding next-generation AAA games, and real-time scrubbing of massive 8K video timelines. For professional content creators, 3D animators, data scientists, and extreme PC enthusiasts, the PCIe 5.0 x4 architecture ensures that your system processor is never starved for data, resulting in a perfectly fluid, bottleneck-free high-performance computing environment.

Next-Generation MaxioTech MAP1802 Controller

At the absolute command center of the TiPlus 9100 lies the highly sophisticated MAP1802 controller manufactured by MaxioTech. Built upon a powerful ARM 32-bit Cortex-R8 Quad-Core architecture, this processor dictates data traffic with remarkable precision. More importantly, the controller is fabricated utilizing the advanced TSMC FinFET 6 nm process. This smaller manufacturing node guarantees maximum thermal and power efficiency, which is absolutely critical for managing the intense heat typically generated by PCIe 5.0 drives. The controller actively addresses four high-speed flash channels operating at an incredible 3,600 MT/s, alongside 4 Chip Enables, allowing it to seamlessly distribute massive file workloads across the onboard flash memory without breaking a sweat.

Revolutionary YMTC Xtacking 4.0 TLC 3D NAND

The staggering 4TB storage density and extreme speeds of this drive are made possible by YMTC’s proprietary Xtacking 4.0 (X4-9070) TLC 3D NAND flash memory. While older planar NAND technologies struggle with physical space limitations, Xtacking 4.0 utilizes a revolutionary 267-layer vertical structure with 294 Word Lines per NAND string, achieving an astounding 90.8% vertical efficiency. The drive boasts two massive memory chips, each carrying 16 Tbit of capacity spread across 16 individual 1 Tbit dies. With a tiny die size of just 52 mm² (offering an extreme density of 19.7 Gbit/mm²), YMTC has managed to engineer a colossal amount of storage into a minimal physical footprint. Operating on the ONFI 5.1 standard with a Charge Trap topology, this Triple-Level Cell (TLC) memory strikes the perfect balance between massive capacity, breakneck speed, and long-term reliability.

Intelligent DRAM-Less Design and HMB Technology

Rather than relying on expensive and power-hungry dedicated onboard DRAM cache chips, the TiPlus 9100 utilizes a highly advanced DRAM-less architecture supplemented by Host-Memory-Buffer (HMB) technology. The controller securely allocates a tiny, 64 MB slice of your system’s main RAM to manage its internal file translation tables. Coupled with an intelligent pseudo-SLC write cache that absorbs massive bursts of incoming data, this design allows the drive to perform just as well as its DRAM-equipped competitors while running significantly cooler. The true testament to this technology is the drive’s Random IOPS (Input/Output Operations Per Second). The TiPlus 9100 achieves an elite 1,850,000 IOPS for both random reads and random writes. This allows the drive to simultaneously juggle millions of tiny background data requests flawlessly, making it ideal for heavy multitasking, running complex virtual machines, or compiling enormous software codebases.

Massive Capacity and Single-Sided M.2 2280 Form Factor

Storage anxiety is completely eliminated with this flagship 4TB (4096 GB) variant of the Zhitai TiPlus 9100. This top-tier capacity is an absolute dream for digital hoarders, providing ample space to install a massive library of 100GB+ modern games alongside uncompressed raw video project archives and complete system backups. To ensure the drive maintains its extreme performance as it fills up, YMTC has allocated a generous 7.4% (281.3 GB) of the drive to overprovisioning. This invisible space allows the controller to perform crucial background garbage collection and wear leveling efficiently. Despite housing 4TB of high-speed storage, the drive is constructed on a single-sided M.2 2280 form factor. This ultra-slim profile guarantees perfect physical compatibility with the tightest spaces found inside modern ultra-thin laptops, compact mini-PCs, and notably, the PlayStation 5 console storage expansion slot.

Exceptional Endurance, Reliability, and Warranty

Protecting your critical data over the lifespan of your system is paramount, and YMTC has engineered the TiPlus 9100 for enterprise-grade longevity. The high-quality 267-layer NAND flash cells are rated for up to 3000 P/E (Program/Erase) cycles. For this massive 4TB model, that translates to an incredible endurance rating of 2400 Terabytes Written (TBW), equalling a Drive Writes Per Day (DWPD) rating of 0.3. In practical terms, you could write hundreds of gigabytes of fresh data to this drive every single day for years without exhausting the memory cells. The SSD supports modern storage management features like TRIM and SMART to proactively maintain its own health. Cementing their confidence in this flagship consumer product, YMTC backs the TiPlus 9100 with an excellent 5-year warranty, providing ultimate peace of mind for your high-performance storage investment.
