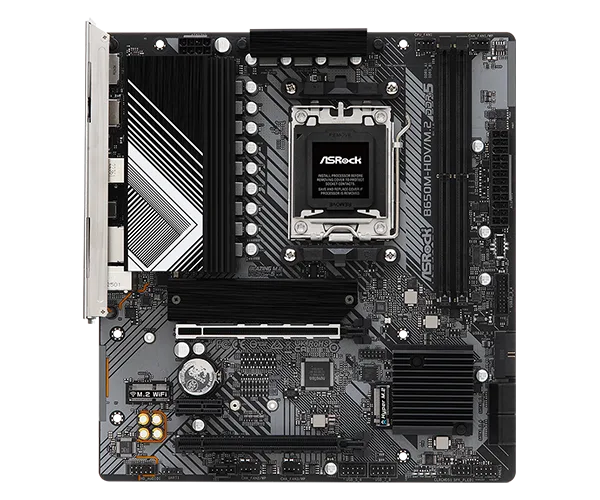

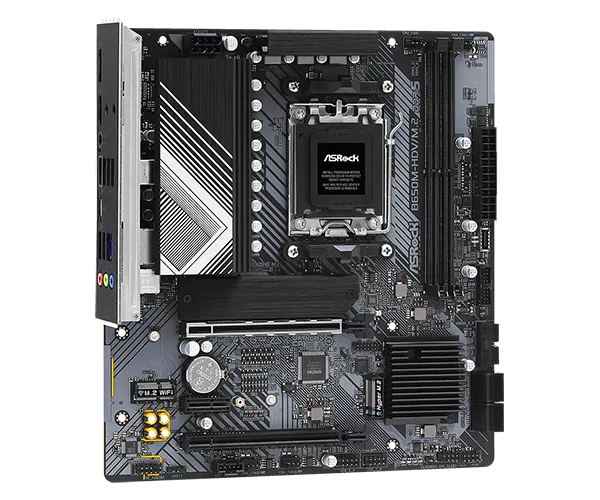

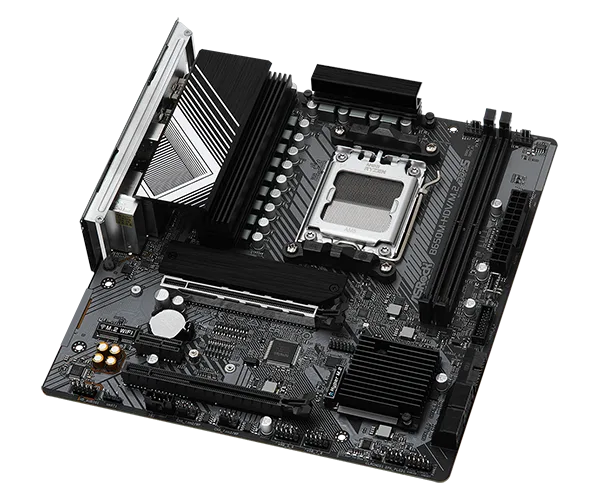

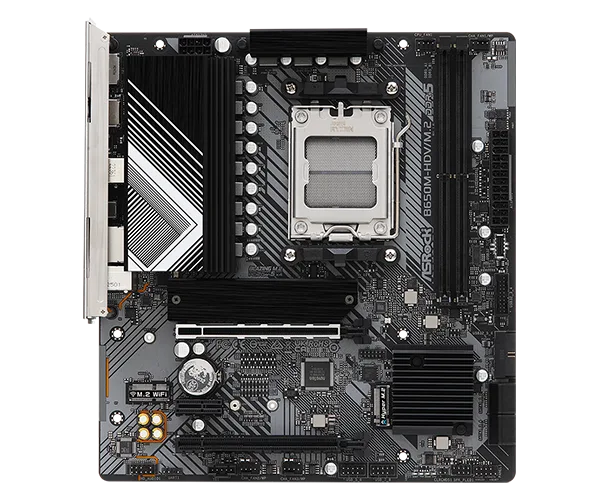

ASRock B650M-HDV/M.2 Micro ATX Motherboard w/ AM5 Socket, DDR5 Memory Compatibility
In Stock
In Stock
Add to Wishlist
Add to Wishlist
Complete Your Build
This item: ASRock B650M-HDV/M.2 Micro ATX Motherboard w/ AM5 Socket, DDR5 Memory Compatibility
In Stock
Original price was: ₱8,200.00.₱7,595.00Current price is: ₱7,595.00.
Original price was: ₱8,200.00.₱7,595.00Current price is: ₱7,595.00.
Original price was: ₱14,740.00.₱13,895.00Current price is: ₱13,895.00.
Original price was: ₱7,869.00.₱6,295.00Current price is: ₱6,295.00.
₱2,295.00
Original price was: ₱8,390.00.₱7,295.00Current price is: ₱7,295.00.
Original price was: ₱7,072.00.₱6,149.00Current price is: ₱6,149.00.
- Supports AMD Ryzen™ 9000, 8000 & 7000 series processors with AM5 socket.
- Dual Channel DDR5 memory support up to 7200+(OC), max. capacity 128GB.
- PCIe Gen5 & Gen4 M.2 slots for fast storage with NVMe SSD boot support.
- 8+2+1 Power Phase with 50A Dr.MOS for stable power delivery.
- Integrated 2.5G LAN with Dragon RTL8125BG for fast and stable networking.
- RAID 0, 1, and 10 support for SATA and M.2 NVMe devices.
- Supports AMD CrossFire™ multi-GPU configurations.
- USB 3.2 Gen2 Type-C and HDMI/DisplayPort for high-speed connectivity and 4K support.
- Includes BIOS Flashback Button and Post Status Checker for easy troubleshooting.
Description
The ASRock B650M-HDV/M.2 Micro ATX motherboard is built to deliver outstanding performance and rock-solid durability. It supports AMD Ryzen™ 9000, 8000, and 7000 series processors and features an advanced AMD B650 chipset. With dual-channel DDR5 memory technology, up to 128GB memory capacity, and PCIe Gen5 M.2 storage, this motherboard ensures exceptional system performance for gaming and productivity tasks.
The motherboard is equipped with an 8+2+1 power phase and 50A Dr.MOS, ensuring stable power delivery for demanding applications. Integrated 2.5G LAN and enhanced Dragon LAN software offer fast and reliable networking. The inclusion of the BIOS Flashback button and ASRock Auto Driver Installer makes setup easy, while the Post Status Checker allows for quick troubleshooting.
With multiple connectivity options, including USB 3.2 Gen2 ports, RAID support, and the ability to support AMD CrossFire™ configurations, the B650M-HDV/M.2 is the perfect choice for both casual and hardcore gamers. Whether you’re upgrading or building from scratch, this motherboard offers unbeatable value and performance.
| Specification | Details |
|---|---|
| CPU | Supports AMD Socket AM5 Ryzen™ 9000, 8000, and 7000 Series Processors* |
| Chipset | AMD B650 |
| Memory | Dual Channel DDR5 Memory 2 x DDR5 DIMM Slots Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC) Max Capacity: 128GB Supports XMP & EXPO memory modules |
| Graphics | Integrated AMD RDNA™ Graphics (varies by CPU) 1 x HDMI 2.1 (4K 120Hz, HDR, HDCP 2.3) 1 x DisplayPort 1.4 (4K 120Hz) |
| Audio | 7.1 CH HD Audio (Realtek ALC897) Nahimic Audio |
| LAN | 2.5 Gigabit LAN (Dragon RTL8125BG) Dragon 2.5G LAN Software Smart Auto Adjust Bandwidth Control Visual User Interface with Network Usage Statistics |
| Expansion Slots | 1 x PCIe 4.0 x16 Slot (x16 mode) 1 x PCIe 4.0 x16 Slot (x4 mode) 1 x PCIe 4.0 x1 Slot 1 x M.2 Socket (Key E) for WiFi/BT PCIe Wi-Fi Module Supports AMD CrossFire™ |
| Storage | 1 x PCIe Gen5 x4 M.2 (128 Gb/s) 1 x PCIe Gen4 x4 M.2 (64 Gb/s) 4 x SATA3 6.0 Gb/s Ports |
| USB Ports | 1 x USB 3.2 Gen2 Type-C (Front) 1 x USB 3.2 Gen1 Type-C (Rear) 6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front) 8 x USB 2.0 (4 Rear, 4 Front) |

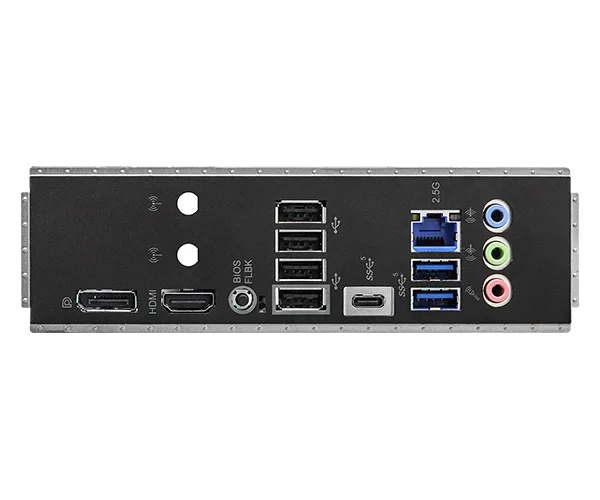

| Rear I/O Ports | 2 x Antenna Mounting Points 1 x HDMI, 1 x DisplayPort 1.4 1 x USB 3.2 Gen1 Type-C, 2 x USB 3.2 Gen1 Type-A 4 x USB 2.0 1 x RJ-45 LAN, 1 x BIOS Flashback Button HD Audio Jacks (Line In, Front Speaker, Microphone) |
Additional information
| Weight | 1.7 kg |
|---|---|
| Dimensions | 31 × 29 × 8 cm |
| Brand | ASROCK |
| Socket | AM5 CPU |
| Desktop RAM | DDR5 |
