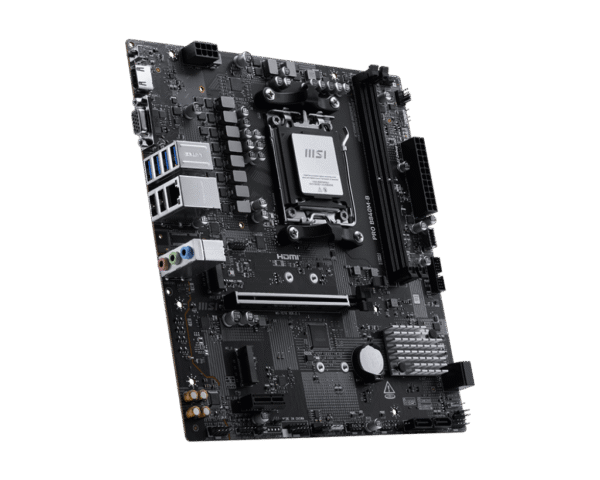

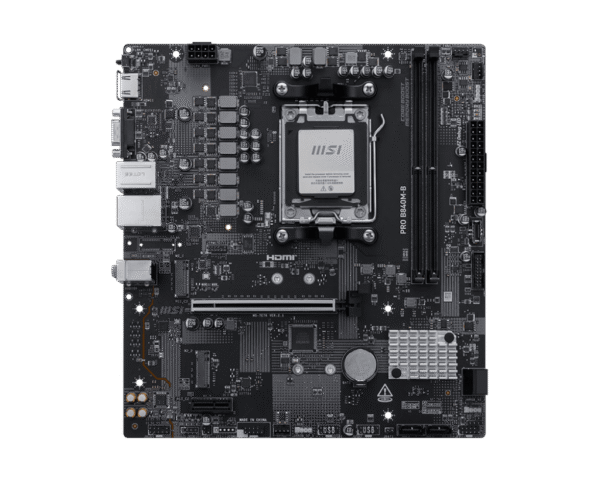

MSI PRO B840M-B AM5 DDR5 PCIe 4.0 2.5G LAN mATX Motherboard – PRO B840M-B
₱7,600.00Original price was: ₱7,600.00.₱6,589.00Current price is: ₱6,589.00.
Supports AMD Ryzen 9000/8000/7000 Series processors with AM5 socket
DDR5 memory support up to 8000+ MT/s (OC) with Latency Killer
2.5G LAN with AI LAN Manager for low-latency networking
PCIe 4.0 M.2 for fast storage
EZ DIY with EZ PCIe Clip II for easy installation
Frozr AI Cooling for optimal system performance
SKU: PRO B840M-B
In stock
ℹ️
For walk-in customers: please always INQUIRE FIRST before visiting as not all items are displayed in our physical store. As an online-first store, most of our inventory is held in our online warehouse and is transferred to the store upon request.
MSI PRO B840M-B AM5 DDR5 PCIe 4.0 2.5G LAN mATX Motherboard - PRO B840M-B
Price Drop Alerts & Price History
⚠️ That's a steep drop! You might be waiting a while.
We'll notify you the moment the price hits your target.
The MSI PRO B840M-B motherboard delivers robust performance for professionals and gamers, supporting AMD Ryzen 9000, 8000, and 7000 Series processors on the AM5 socket. Designed for efficiency, it features a Direct 7+2+1 power system with Core Boost and Memory Boost, ensuring stability during demanding tasks. The board supports DDR5 memory up to 8000+ MT/s (OC), enhanced by MSI’s Latency Killer for reduced memory latency. PCIe 4.0 M.2 slots provide fast storage, while the EZ PCIe Clip II simplifies graphics card installation. With 2.5G LAN and AI LAN Manager, it ensures low-latency networking for seamless online experiences. Frozr AI Cooling optimizes system temperatures, and Mystic Light offers vibrant RGB customization. MSI Center’s AI-driven features, like AI Boost, streamline overclocking and system management, making this motherboard ideal for multitasking, gaming, and AI computing.
Specification
PRO B840M-B
SKU
PRO B840M-B
Brand
MSI
Chipset
AMD B840
CPU Support
AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Socket
AM5
Memory
2x DDR5 UDIMM, Max 128GB, Supports 8000+ MT/s (OC) to 4800 MT/s (JEDEC)
2x USB 2.0 (Rear), 4x USB 2.0 (Front), 4x USB 5Gbps Type-A (Rear), 2x USB 5Gbps Type-A (Front), 1x USB 5Gbps Type-C (Front)
LAN
Realtek® 8125D 2.5G LAN
Audio
Realtek® ALC897, 7.1-Channel High Definition Audio
Internal IO
1x ATX_PWR, 1x CPU_PWR, 1x CPU Fan, 2x System Fan, 2x Front Panel, 1x Chassis Intrusion, 1x Front Audio, 1x Com Port, 3x ARGB V2, 1x RGB, 1x TPM, 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 5Gbps Type-C
LED Features
4x EZ Debug LED, 1x EZ Memory Detection LED
Back Panel Ports
Clear CMOS Button, HDMI™, VGA, 4x USB 5Gbps Type-A, 2x USB 2.0, 2.5G LAN, Audio Connectors, Flash BIOS Button
Operating System
Windows® 11 64-bit
Form Factor
mATX (226mm x 243.84mm)
Packaging Weight
1 kg
Packaging Dimensions (L×W×H)
30 × 20 × 7 cm
Brand
MSI
Desktop RAM
DDR5
Socket
AM5 CPU
