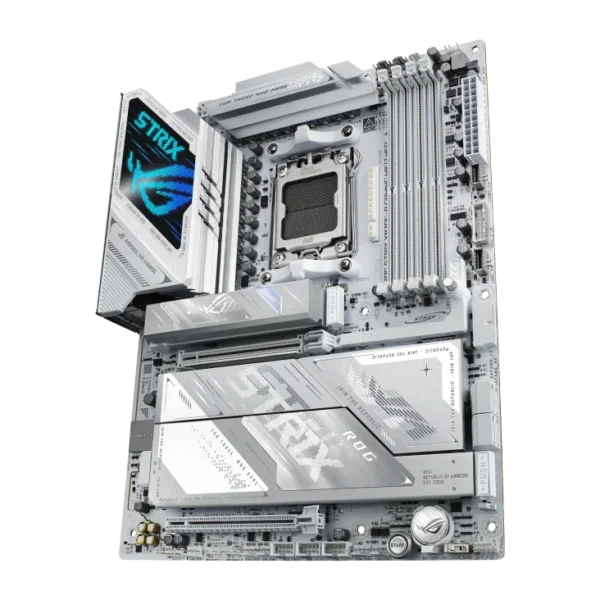

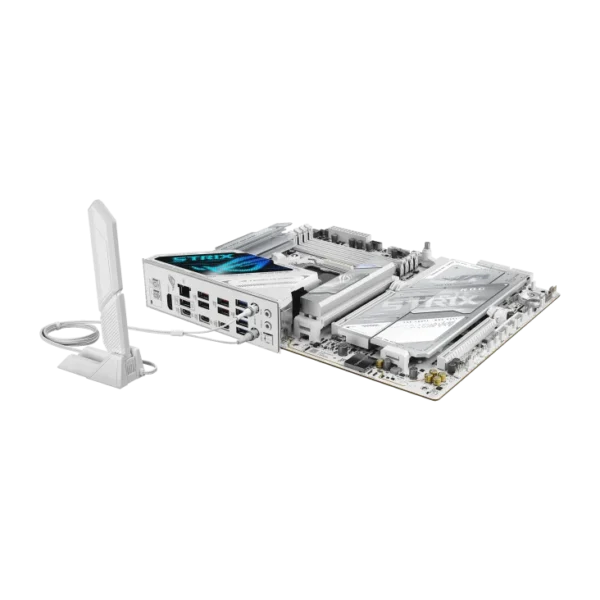

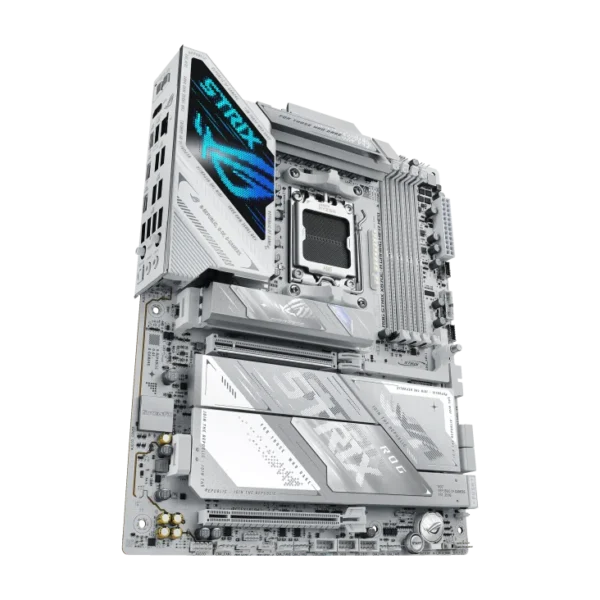

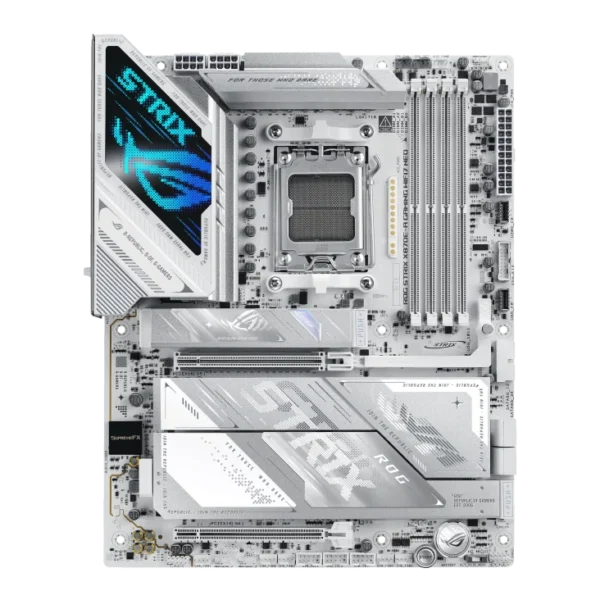

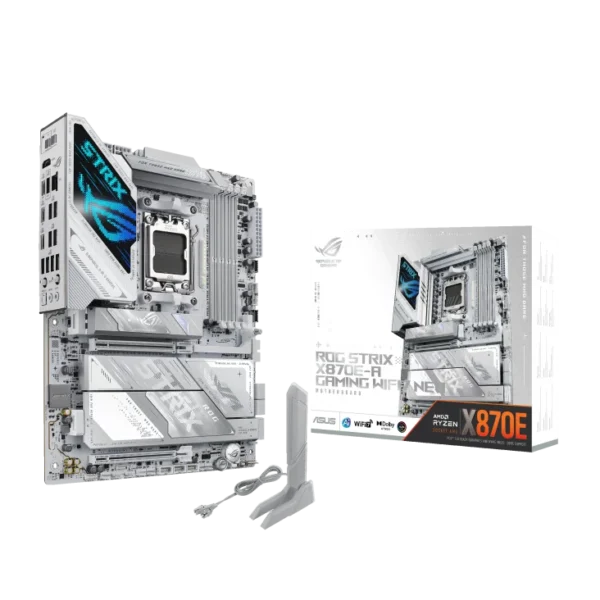

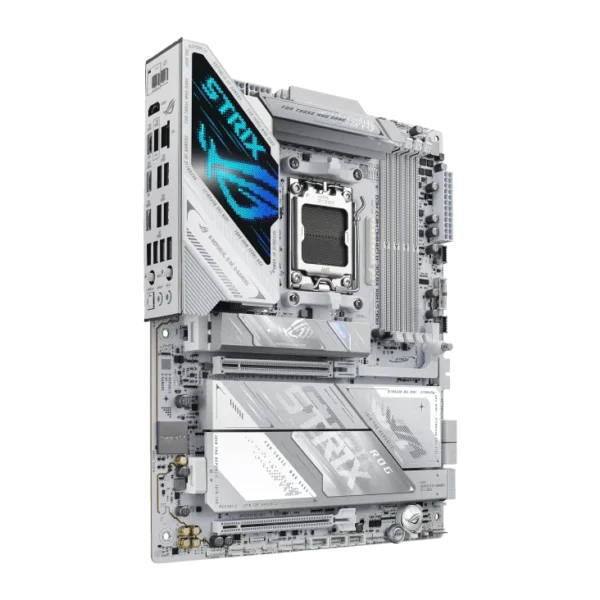

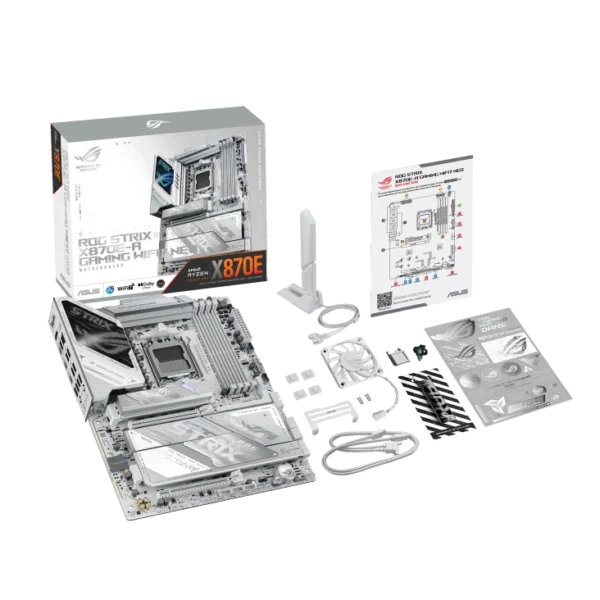

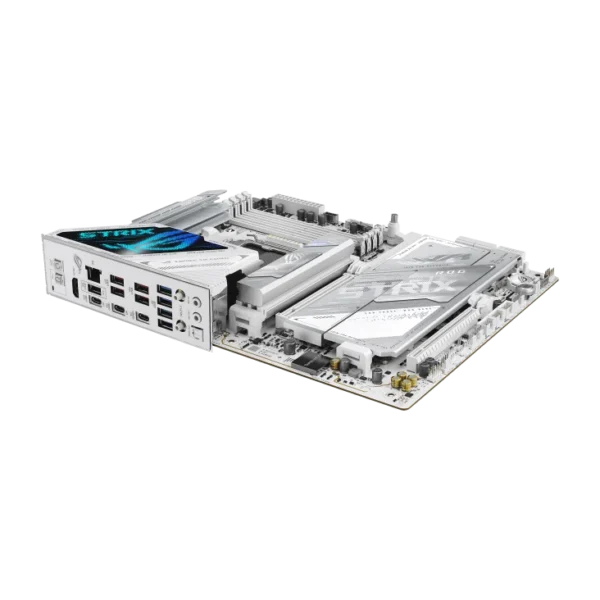

ASUS – ATX AM5 X870E Motherboard DDR5 WiFi 7 White – ROG STRIX X870E-A GAMING NEO
₱30,100.00Original price was: ₱30,100.00.₱26,180.00Current price is: ₱26,180.00.
Built for AMD Socket AM5, supporting AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors.
Robust 16+2+2 Power Stages rated for 90A, ensuring rock-solid stability and overclocking potential.
Supports 4x DDR5 DIMM slots up to 256GB with speeds reaching an incredible 9600+ MT/s (OC).
Features advanced NitroPath DRAM Technology for up to 400 MT/s higher frequency headroom.
Equipped with an expansive 4x M.2 slot layout, including dual PCIe 5.0 x4 slots for blazing-fast NVMe storage.
Ultra-fast networking powered by Wi-Fi 7 (160MHz) with Bluetooth v5.4 and Realtek 5Gb Ethernet.
ASUS AI suite ready: AI Cache Boost, AI Overclocking, AI Cooling II, and AI Networking II.
DIY-Friendly features including PCIe Slot Q-Release, M.2 Q-Release, M.2 Q-Slide, and an integrated WiFi Q-Antenna.
Premium ROG SupremeFX 7.1 Audio with ALC4080 codec, Savitech AMP, and Dolby Atmos support.
Stunning white PCB and brushed-metal heatsinks with customizable Polymo Lighting.
SKU: ROG STRIX X870E-A GAMING NEO
Out of stock
ℹ️
For walk-in customers: please always INQUIRE FIRST before visiting as not all items are displayed in our physical store. As an online-first store, most of our inventory is held in our online warehouse and is transferred to the store upon request.
ASUS - ATX AM5 X870E Motherboard DDR5 WiFi 7 White - ROG STRIX X870E-A GAMING NEO
Restock & Price Alerts
⚠️ That's a steep drop! You might be waiting a while.
We'll email you the moment this is back in stock. If you enter a target price, we'll also send you a separate alert if the price drops to your goal later!
🔓 Sign in to unlock full price history charts and manage your alerts.
The ROG STRIX X870E-A GAMING WIFI7 NEO is meticulously engineered to harness the phenomenal power of the latest AMD Ryzen 9000, 8000, and 7000 Series desktop processors. Utilizing the cutting-edge AM5 platform and AMD X870E chipset, this high-end motherboard brings incredible processing potential to gamers and creators. Beyond its raw performance, it stands out visually with a stunning white PCB and premium brushed-metal heatsinks. Customizable Polymo Lighting on the I/O shroud adds the perfect RGB accent to match your unique setup, creating an undeniably stylish foundation for any modern PC build.
Revolutionary Memory Capabilities and AI Power
Push your DDR5 memory modules further than ever before. With exclusive NitroPath DRAM Technology, memory slot retention force is increased by 57 percent while signal routing is aggressively optimized, granting enthusiasts an extra 400 MT/s in frequency headroom. This allows speeds up to a blistering 9600+ MT/s (OC). Combined with ASUS Enhanced Memory Profile (AEMP), DIMM Fit, and DIMM Fit Pro, fine-tuning your memory for ultimate stability and speed is incredibly straightforward.
Furthermore, the board integrates a comprehensive suite of AI features. The groundbreaking AI Cache Boost technology optimizes CPU cache and memory pathways specifically to accelerate Large Language Model (LLM) workflows, providing up to 29 percent faster local AI performance. ASUS AI Overclocking, AI Cooling II, and AI Networking II work continuously in the background to ensure your rig is dynamically tuned for peak efficiency, lowest temperatures, and lag-free online gaming.
Formidable Power Design and Comprehensive Cooling
Handling the extreme demands of multi-threaded processors requires absolute stability. This motherboard is equipped with a robust 16+2+2 power stage design rated for up to 90 amps per stage. This massive current capacity is fed smoothly to the CPU through heavy-duty ProCool II power connectors and high-quality 5K black metallic capacitors, ensuring substantial overclocking headroom without thermal throttling.
To keep this beast cool, ASUS has deployed an extensive VRM heatsink array, an M.2 backplate, and massive primary M.2 heatsinks. Paired with multiple 4-pin chassis fan headers and a dedicated AIO pump header, balancing thermals is completely seamless. With AI Cooling II, you can achieve the perfect equilibrium between system temperatures and acoustic noise with just a single click.
Next-Generation Connectivity and Storage
Embrace the future of bandwidth with uncompromising I/O. The board boasts dual onboard USB4 (40Gbps) Type-C ports supporting DisplayPort Alt mode, alongside a blazing fast front-panel USB 20Gbps Type-C connector. Wireless networking leaps generations ahead with integrated Wi-Fi 7 (802.11be), utilizing a 160MHz band and 4096 QAM to drastically boost throughput over previous standards. Wired enthusiasts also benefit from a premium Realtek 5Gb Ethernet port with ASUS LANGuard protection.
For storage, four dedicated M.2 slots await your high-speed NVMe drives. Two of these slots operate at full PCIe 5.0 x4 speeds, accommodating next-generation storage solutions with massive bandwidth. At the same time, your graphics card operates completely uncompromised in the reinforced PCIe 5.0 x16 SafeSlot, ensuring zero bottlenecks in your gaming and rendering workloads.
Immersive Audio and DIY-Friendly Innovation
Exceptional gaming requires exceptional sound. Powered by the elite ROG SupremeFX 7.1 Surround Sound ALC4080 codec and the Savitech SV3H712 AMP, the motherboard delivers audiophile-grade audio playback up to 32-Bit/384 kHz. LE Audio and Dolby Atmos support further immerse you in a rich, spatial soundscape.
To top it off, building on the ROG Strix X870E-A is a PC DIYer’s dream. Innovative ASUS Q-Design features like the PCIe Slot Q-Release make removing large graphics cards effortless. Storage installation is entirely tool-free utilizing M.2 Q-Release, Q-Slide, and Q-Latch. Additional conveniences such as the AIO Q-Connector, pre-mounted I/O shield, Clear CMOS button, and a massive 64MB BIOS chip ensure an exceptionally smooth building, tuning, and upgrading experience.
ASUS ROG STRIX X870E-A GAMING WIFI7 NEO Specifications
General Information
Brand
ASUS
Model / Name
ROG STRIX X870E-A GAMING NEO
SKU
ROG STRIX X870E-A GAMING NEO
Form Factor
ATX Form Factor
12 inch x 9.6 inch (30.5 cm x 24.4 cm)
Operating System
Windows 11 (22H2 & later)
Core Components
CPU Socket
AMD Socket AM5 for AMD Ryzen 9000, 8000 & 7000 Series Desktop Processors
Chipset
AMD X870E
Power Stages
16(90A) + 2(90A) + 2(80A) Robust Power Solution
Power Connectors
ProCool II Power Connectors
Memory (RAM)
Memory Slots
4 x DIMM slots, max. 256GB
Memory Type
DDR5, Dual channel memory architecture, ECC and Non-ECC Un-buffered DIMM
Supported Speeds (Ryzen 9000 Series)
Up to 8600+ MT/s (OC) / 8200+ MT/s (OC)
Supported Speeds (Ryzen 8000 Series)
Up to 9600+ MT/s (OC) / 9000+ MT/s (OC)
Supported Speeds (Ryzen 7000 Series)
Up to 8000+ MT/s (OC) / 8000+ MT/s (OC)
Memory Features
NitroPath DRAM Technology (Up to 400 MT/s higher frequency, slot retention force enhanced by 57%)
ASUS Enhanced Memory Profile (AEMP)
Supports AMD Extended Profiles for Overclocking (EXPO)
Supports DIMM Fit and DIMM Fit Pro
Graphics & Expansion Slots
Onboard Graphics
1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1)
2 x USB4 (40Gbps) ports support USB Type-C display outputs (Supports max. 4K@60Hz as specified in DisplayPort 1.4a)
2 x USB4 (40Gbps) ports (2 x USB Type-C with DP Alt mode)
6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C with up to 30W PD)
4 x USB 5Gbps ports (4 x Type-A)
Front USB Headers (12 Total)
1 x USB 20Gbps connector (1 x USB Type-C)
1 x USB 5Gbps connector (1 x USB Type-C)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
3 x USB 2.0 headers support 6 additional USB 2.0 ports
Audio
Audio Codec
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
Audio Features
Impedance sense for front/rear headphone outputs
Supports Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
Supports up to 32-Bit/384 kHz playback on front panel
SupremeFX Shielding Technology, Savitech SV3H712 AMP
Rear optical S/PDIF out port, Premium audio capacitors, Audio cover
Advanced Audio Tech
Dolby Atmos, LE Audio
Back Panel I/O Ports
Rear Ports
2 x USB4 (40Gbps) ports (2 x USB Type-C with DP Alt mode)
6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C with up to 30W PD)
4 x USB 5Gbps ports (4 x Type-A)
1 x HDMI port
1 x Wi-Fi module
1 x Realtek 5Gb Ethernet port
2 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
Internal I/O Connectors
Fan & Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
1 x AIO Q-Connector
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
Miscellaneous Headers
3 x Addressable RGB Gen 2 headers
1 x Alteration PCIe mode switch
1 x Chassis Intrusion header
1 x CPU Over voltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 10-1 pin Front Panel System header
1 x Thermal Sensor header
