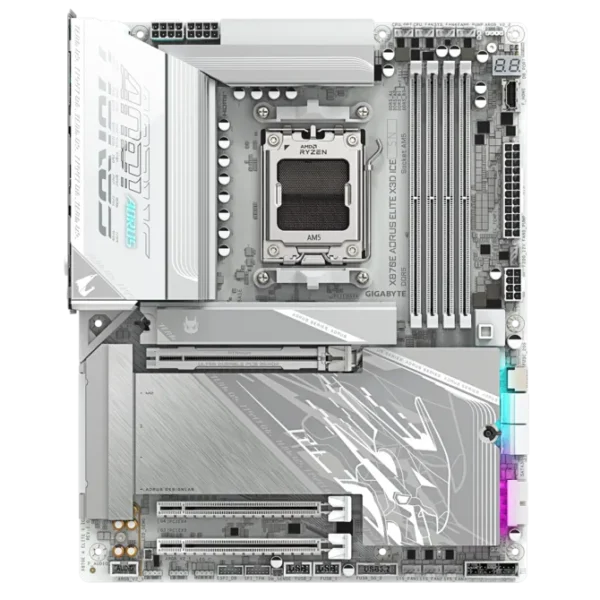

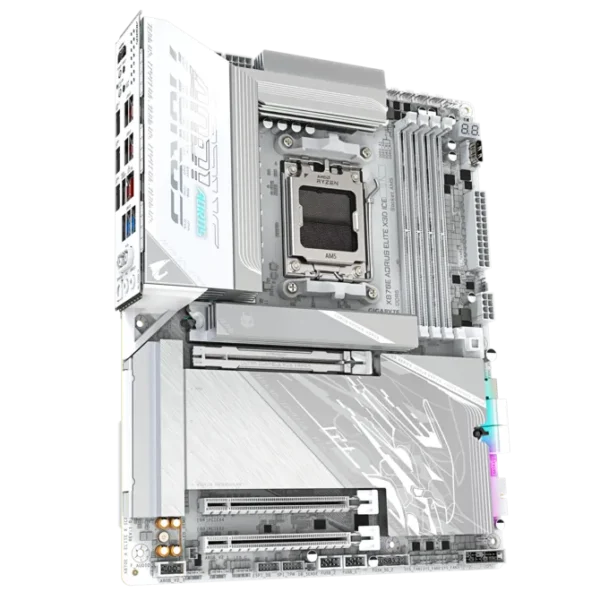

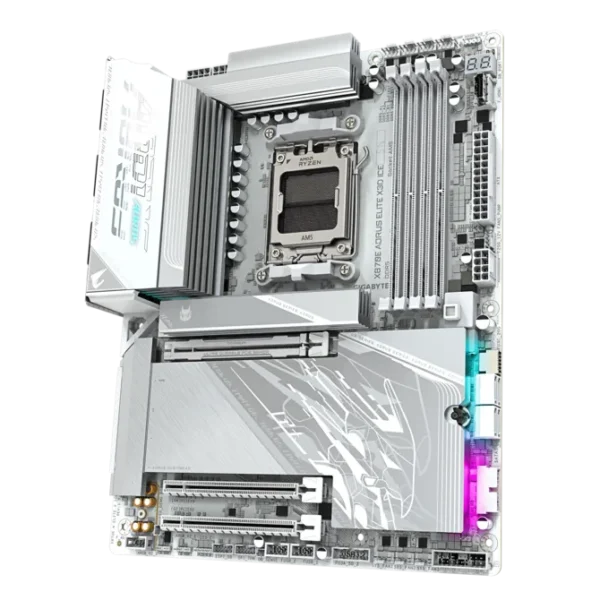

Experience the pinnacle of white-themed computing performance with the GIGABYTE X870E AORUS ELITE WIFI7 ICE. Designed for enthusiasts who refuse to compromise on aesthetics or power, this motherboard supports the latest AMD Ryzen™ 9000, 8000, and 7000 Series processors on the AM5 platform. Its striking “ICE” design features a pristine white PCB and silver accents, making it the perfect foundation for a clean, all-white build. Beneath the stunning exterior lies a robust Digital Twin 16+2+2 VRM solution equipped with 60A DrMOS power stages. This ensures rock-solid power delivery to high-core-count CPUs, enabling users to push performance boundaries with confidence. The 6-layer server-grade PCB with 2X copper enhancement further optimizes signal integrity and thermal efficiency, allowing for extreme memory overclocking speeds of up to DDR5-8200 MT/s.
Connectivity is reimagined on the X870E AORUS ELITE WIFI7 ICE, featuring dual USB4® Type-C® ports that deliver blistering 40Gbps data transfer speeds and DisplayPort-Alt mode for ultra-high-resolution displays. Networking is handled by the cutting-edge Realtek® Wi-Fi 7 module, which utilizes the 6GHz band and a directional Ultra-high gain antenna for unparalleled wireless speeds and low latency. For wired connections, the 2.5GbE LAN provides a stable and fast link for competitive gaming. The board also simplifies cable management and system monitoring with the innovative Sensor Panel Link, an onboard HDMI port designed specifically for internal chassis screens, eliminating the need to route cables outside the case.
GIGABYTE has prioritized the DIY experience with a suite of tool-free features. The PCIe EZ-Latch Plus allows for the quick release of graphics cards, while M.2 EZ-Latch Plus and Click mechanisms enable screwless installation of SSDs and their heatsinks. Storage options are vast, with four M.2 slots—three of which support PCIe 5.0 x4 speeds—ensuring you have access to the fastest storage technology available. Thermal management is equally advanced, utilizing VRM Thermal Armor Advanced with Fins-Array technology and M.2 Thermal Guard L to keep critical components cool under heavy loads. With the Ultra Durable™ PCIe Armor and Slot X offering 10X the structural strength for heavy GPUs, this motherboard is built to last and perform.
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM)
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 modules
Supports AMD EXtended Profiles for Overclocking (AMD EXPO™) and XMP
1 x HDMI (4096x2160@60 Hz, HDMI 2.1, HDCP 2.3)
2 x USB4® Type-C® (3840x2160@240 Hz, DisplayPort 1.4, HDR)
1 x Front HDMI (1920x1080@30 Hz, HDMI 1.4) for Sensor Panel
Audio
Realtek® ALC1220 CODEC
High Definition Audio (2/4/5.1/7.1-channel)
Audiophile Grade Capacitors
Support for S/PDIF Out
LAN
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication
Realtek® Wi-Fi 7 RTL8922AE (802.11be, 160MHz)
Supports 2.4/5/6 GHz frequency bands
BLUETOOTH 5.4
Directional Ultra-high gain antenna
Expansion Slots (CPU)
1 x PCI Express x16 slot (PCIEX16), supports PCIe 5.0 x16
*Bandwidth shared with M2B_CPU/M2C_CPU; operates at x8 if these are populated.
(Note: Ryzen 8000 Series support varies: Phoenix 1 is PCIe 4.0 x8, Phoenix 2 is PCIe 4.0 x4)
Expansion Slots (Chipset)
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1)
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2)
Storage (CPU)
1 x M.2 connector (M2A_CPU): PCIe 5.0 x4/x2 (Ryzen 9000/7000)
2 x M.2 connectors (M2B_CPU, M2C_CPU): PCIe 5.0 x4/x2
(Note: M2B and M2C unavailable with Ryzen 8000 Series processors)
Storage (Chipset)
1 x M.2 connector (M2D_SB): PCIe 4.0 x4/x2
4 x SATA 6Gb/s connectors
RAID Support
NVMe: RAID 0, 1, 5, 10 (RAID 5 only on Ryzen 9000)
SATA: RAID 0, 1, 10
USB Ports (Back Panel)
2 x USB4® USB Type-C® (via CPU+ASMedia)
2 x USB 3.2 Gen 2 Type-A (Red)
3 x USB 3.2 Gen 1
4 x USB 2.0/1.1
1 x USB 3.2 Gen 1 (via CPU)
USB Ports (Internal)
1 x USB Type-C® with USB 3.2 Gen 2x2 support
4 x USB 3.2 Gen 1 ports (via headers)
4 x USB 2.0/1.1 ports (via headers)
Internal I/O Connectors
1 x 24-pin ATX, 2 x 8-pin ATX 12V (UD Solid Pin)
1 x CPU fan, 1 x CPU/pump, 3 x system fan, 1 x system fan/pump
3 x ARGB Gen2 headers, 1 x RGB LED header
1 x Front HDMI port (Sensor Panel Link)
1 x Power button, 1 x Reset button, 1 x Clear CMOS jumper
1 x TPM header

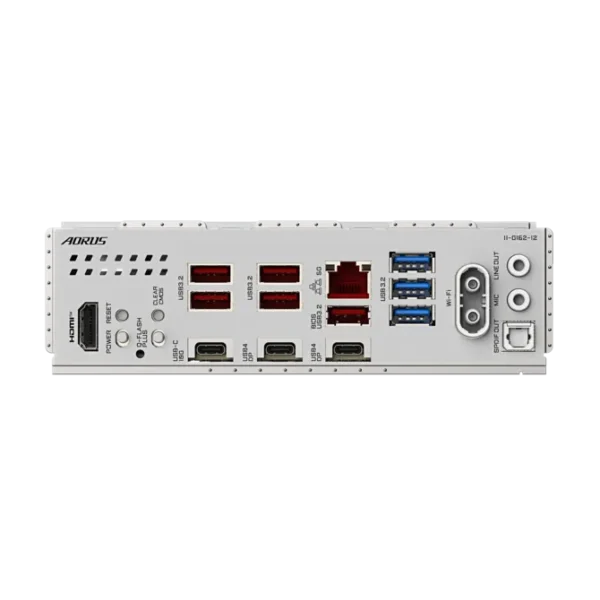

Back Panel Connectors
1 x Q-Flash Plus button
2 x USB4® Type-C®
4 x USB 3.2 Gen 1
2 x USB 3.2 Gen 2 Type-A
4 x USB 2.0/1.1
1 x HDMI
1 x RJ-45 (2.5GbE)
2 x Audio jacks, 1 x Optical S/PDIF Out
2 x Antenna connectors (WIFI EZ-Plug)
Unique Features
AORUS AI SNATCH (Auto OC)
EZ-Latch Plus (PCIe & M.2)
EZ-Latch Click (M.2 heatsinks)
Sensor Panel Link

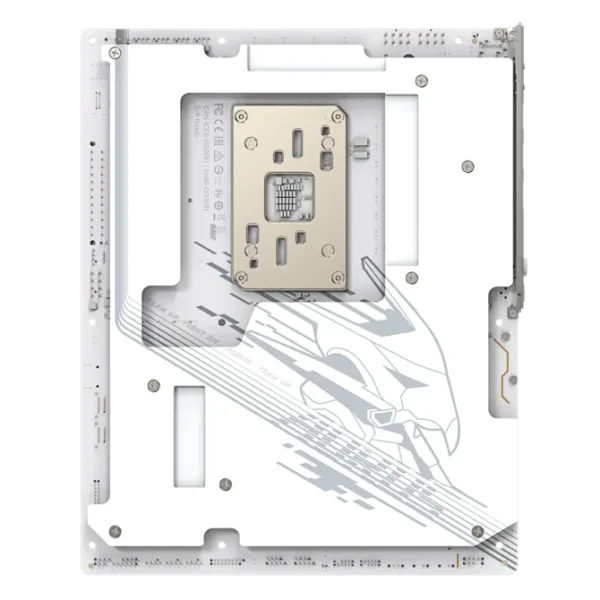

Ultra Durable PCIe Armor (Metal backplate)
PCIe UD Slot X (10X Strength)
Software & BIOS
GIGABYTE Control Center (GCC), RGB Fusion, Q-Flash Plus, Smart Backup
256 Mbit Flash AMI UEFI BIOS, Multi-Theme UI, Q-Flash Auto Scan
Operating System
Windows 11 64-bit
Packaging Weight
2.35 kg
Packaging Dimensions (L×W×H)
34 × 29 × 9 cm
Brand
Gigabyte
Desktop RAM
DDR5
Socket
AM5 CPU
