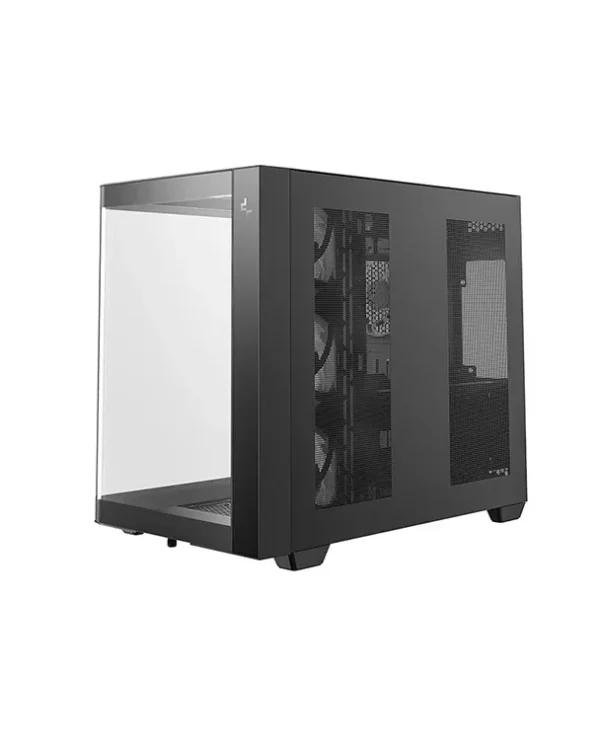

DeepCool CG530U 4F Curved Glass Panoramic Dual-Chamber ATX PC Case Black – R-CG530U-BKAGA4-G
Original price was: ₱5,520.00.₱4,800.00Current price is: ₱4,800.00.
- SKU: R-CG530U-BKAGA4-G | EAN: 6933412765592
- Curved Panoramic Glass: Features a stunning one-piece curved tempered glass front-to-side panel for a completely seamless, uninterrupted view of your build.
- Dual-Chamber Design: Isolates the power supply and storage drives to optimize airflow, improve thermal performance, and maximize cable hiding capabilities.
- Pre-Installed ARGB Cooling: Arrives equipped with three side-mounted 120mm reverse-blade intake fans and one rear 120mm exhaust fan for brilliant lighting and immediate airflow.
- Back-Connect Motherboard Ready: Fully supports traditional motherboards as well as next-generation ATX/Micro-ATX reverse-connector boards for a completely wireless aesthetic.
- Massive Hardware Clearances: Built for elite components, accommodating flagship GPUs up to 410mm long, CPU coolers up to 160mm tall, and PSUs up to 210mm.
- Extreme Liquid Cooling Support: Engineered with immense thermal headroom, allowing builders to mount massive 360mm radiators on both the top and bottom panels.
- Extensive Fan Capacity: Maintain peak performance by populating the interior with up to ten 120mm cooling fans.
- Effortless Cable Management: Features a cavernous 45mm clearance in the rear chamber, taking the stress out of routing and organizing thick cable bundles.
- Modern High-Speed I/O: Top panel includes a blazing-fast Gen2 Type-C port, dual USB 3.0 ports, a dedicated LED lighting button, and an audio/mic combo jack.
- Easy Maintenance: Supplied with comprehensive top and bottom dust filters to protect your hardware and keep the interior pristine.
In stock
Price Drop Alerts & Price History
-
Authorized
Dealer -
Nationwide
Shipping -
Store &
RMA HUB -
Expert
Support -
7-Day DOA
Protection -
Community
Trusted -
Turnstile
Protected -
reCAPTCHA
Secured -
Tested &
Verified
A Seamless Panoramic Masterpiece
Step into the future of PC case design with the DeepCool CG530U 4F. Crafted for enthusiasts who want to turn their battle station into an absolute visual centerpiece, this chassis features a breathtaking one-piece curved tempered glass panel. Unlike traditional cases that rely on stark metal A-pillars that block your view, the glass on the CG530U transitions smoothly around the front corner. This seamless construction offers a gorgeous, uninterrupted, panoramic window into your meticulously built high-performance system.
Intelligent Dual-Chamber Architecture
To ensure that extreme aesthetics do not compromise performance, the CG530U 4F is built upon a highly efficient dual-chamber layout. By physically isolating the heat-generating power supply and bulky storage drives in a secondary hidden chamber behind the motherboard tray, the main component area is left completely unobstructed. This design massively improves cooling efficiency, maximizes internal space for enormous graphics cards, and works in tandem with large exterior mesh panels to guarantee that fresh air reaches the hardware that needs it most.

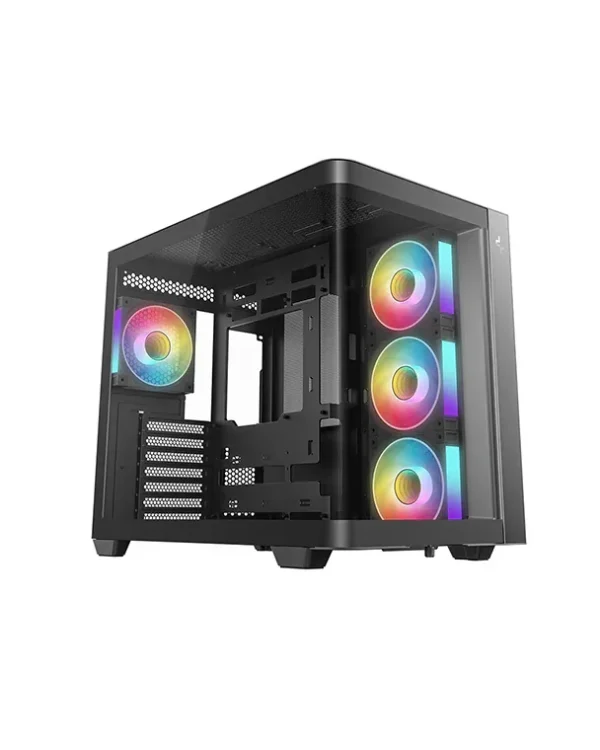

Ready to Flow: Out-of-the-Box ARGB Cooling
There is no need to spend extra money or time outfitting your case with premium fans. The DeepCool CG530U 4F comes incredibly well-equipped with four vibrant ARGB fans pre-installed from the factory. Three specialized reverse-blade fans are mounted on the side intake, drawing massive volumes of cool air inward while proudly displaying their beautifully illuminated fan hubs. A fourth standard ARGB fan acts as the rear exhaust, instantly creating a highly effective horizontal airflow path that sweeps heat rapidly out of the chassis.
Next-Generation Hardware Compatibility
Do not let messy wires ruin your perfect panoramic view. The CG530U 4F motherboard tray is engineered to support standard ITX, Micro-ATX, and ATX motherboards, but more importantly, it offers full native compatibility for next-generation ATX and Micro-ATX reverse-connector (back-connect) motherboards. By routing 24-pin, EPS, and PCIe power cables to the rear chamber, builders can achieve an impossibly clean, completely wire-free aesthetic in the main viewing area. Handling robust hardware is effortless with support for huge flagship GPUs up to 410mm in length, CPU air coolers up to 160mm tall, and standard ATX PSUs up to 210mm.
Uncompromising Cooling Potential
Never fear the heat, even when running heavy synthetic loads or intense AAA games. The DeepCool CG530U 4F is engineered for unmatched thermal flexibility. If you plan to build an extreme custom loop or utilize high-end All-In-One (AIO) liquid coolers, this case boasts tremendous radiator support, accommodating massive 360mm radiators on both the top and bottom panels simultaneously, alongside a 280mm radiator on the side. If you prefer air cooling, the chassis can house an incredible total of up to ten 120mm fans, ensuring hurricane-force airflow across your critical components.
Refined Details for Elite Builders
DeepCool has scrutinized every detail to ensure building in the CG530U 4F is a luxury experience. A massive 45mm of dedicated cable routing clearance is provided in the rear chamber, completely removing the frustration of thick cable bundles. Maintenance is incredibly simple thanks to the inclusion of easy-to-remove top and bottom dust filters, keeping your pristine build completely free of debris. Finally, connecting your external peripherals is lightning fast via the highly accessible top I/O panel, which comes fully loaded with a Gen2 Type-C port, dual USB 3.0 ports, a dedicated LED control button, and a hybrid audio/mic jack.
| DeepCool CG530U 4F Product Specifications | |
|---|---|
| General Information | |
| Brand | Deepcool |
| Model Name | CG530U 4F |
| SKU / Part Number | R-CG530U-BKAGA4-G |
| EAN | 6933412765592 |
| Color | Black |
| Chassis Type | Dual-Chamber Panoramic Mid-Tower |
| Physical Specifications | |
| Dimensions (L × W × H) | 475 × 285 × 380 mm |
| Net Weight | 7.3 kg |
| Materials | ABS Plastic SPCC Steel One-Piece Curved Tempered Glass |
| Cable Management Clearance | 45 mm of dedicated routing space |
| Hardware Compatibility | |
| Motherboard Support | Mini-ITX / Micro-ATX / ATX *Fully supports ATX and Micro-ATX Reverse/Back-Connector Motherboards |
| CPU Cooler Height Limit | 160 mm |
| GPU Length Limit | 410 mm |
| Power Supply Type | ATX PS2 (Maximum Length: 210mm) / SFX / SFX-L |
| Expansion & Storage | |
| Expansion Slots | 7 Slots |
| 3.5" Drive Bays | 2 |
| 2.5" Drive Bays | 2 + 1 |
| Cooling Support - Fans | |
| Pre-Installed Fans | Side: 3 × 120mm ARGB (Reverse-Blade) Rear: 1 × 120mm ARGB (Standard-Blade) |
| Top Fan Support | 3 × 120 mm / 2 × 140 mm |
| Side Fan Support | 3 × 120 mm / 2 × 140 mm |
| Bottom Fan Support | 3 × 120 mm or 3.5" HDD + 2 × 120 mm or 2.5" SSD + 2 × 120 mm |
| Rear Fan Support | 1 × 120 mm |
| Cooling Support - Radiators | |
| Top Radiator Support | 120 / 140 / 240 / 280 / 360 mm |
| Side Radiator Support | 120 / 140 / 240 / 280 mm |
| Bottom Radiator Support | 120 / 240 / 360 mm |
| Front Radiator Support | N/A |
| I/O Panel & Additional Features | |
| Front/Top I/O Ports | 2 × USB 3.0 1 × USB Gen2 Type-C 1 × Audio/Mic Combo Jack 1 × LED Control Button |
| Dust Filters | Top and Bottom dust filters included |
| Key Design Highlights | One-piece curved glass panel, Dual-chamber isolation, Large mesh ventilation panels |
| Packaging Weight | 7.3 kg |
|---|---|
| Packaging Dimensions (L×W×H) | 48 × 29 × 38 cm |
| Brand | DeepCool |
