Epson EB-L690SU WUXGA 3LCD Short Throw Laser Projector 6200 Lumens – V11HB31080

Original price was: ₱295,630.00.Current price is: ₱257,070.00.

6,200 lumens white and colour brightness
WUXGA resolution up to 400 inches
30,000-hour laser light source
Short-throw with 0.79–1.36 throw ratio
1.7x optical zoom and wide lens shift
Supports 16:10, 16:6, and 21:9 aspect ratios
Wi-Fi 6, NFC, and iProjection connectivity

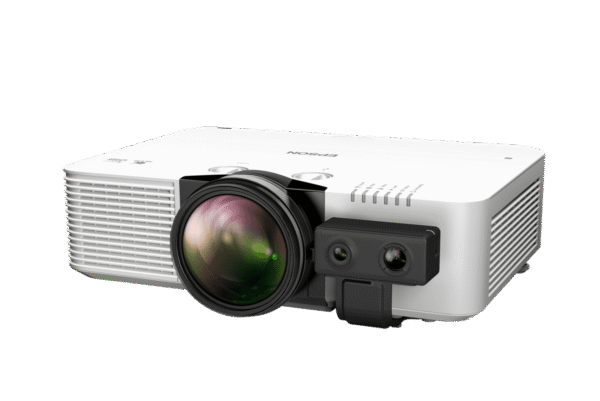

Geometric correction and ELPEC01 camera support
SKU: V11HB31080

In stock

Price Drop Alerts & Price History

We'll notify you the moment the price hits your target.

💡 Suggested alert: ₱244,200 [ Use this ]

Want to track and manage your alerts? Sign in or create an account.

SKU: V11HB31080 Category: Projector Tag: Epson

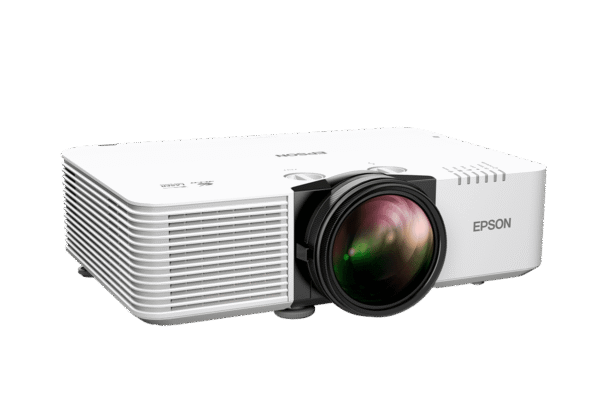

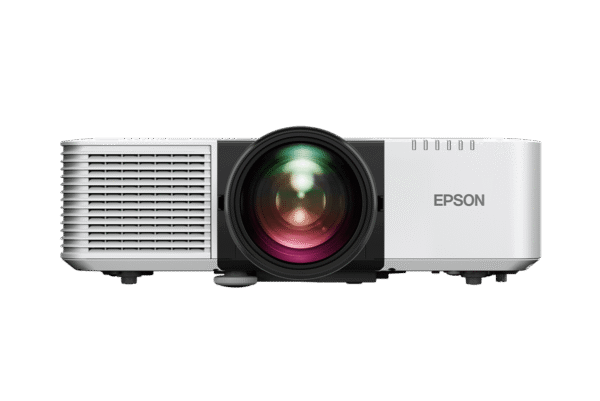

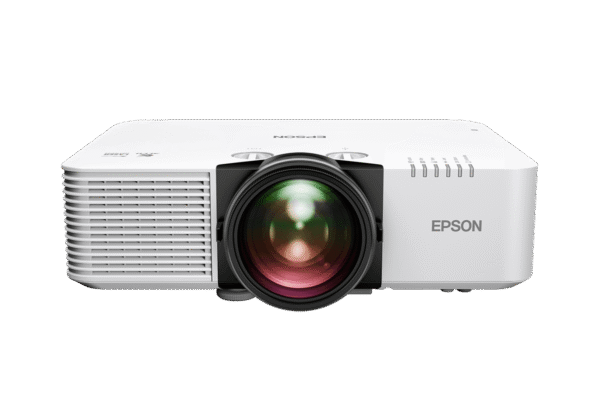

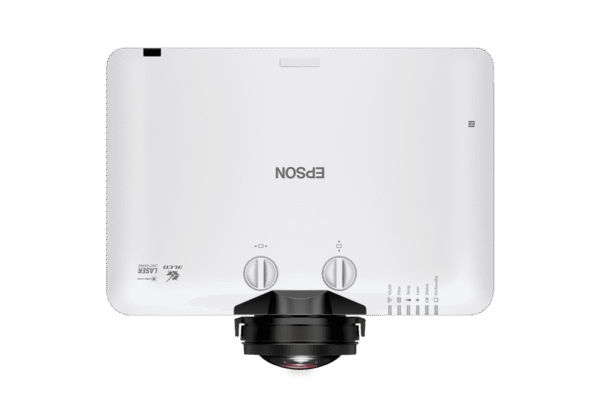

Epson EB-L690SU WUXGA 3LCD Short Throw Laser Projector

The Epson EB-L690SU elevates professional presentations with a WUXGA display, projecting vibrant images up to 400 inches in various aspect ratios, including 16:10, 16:6, and 21:9. Powered by 3LCD technology, it delivers 6,200 lumens of equal white and colour brightness for clear visuals in high-ambient light settings. Its short-throw design with a 0.79–1.36 throw ratio and 1.7x optical zoom, combined with wide lens shift, ensures flexible installation in conference rooms, hybrid workspaces, and exhibitions. The 30,000-hour laser light source minimizes maintenance, while Wi-Fi 6, NFC, and the Epson Projector Management Connected app enable seamless content sharing and remote control. With geometric correction and ELPEC01 camera compatibility, it supports dynamic multi-projection setups.

Specification	Epson EB-L690SU
SKU	V11HB31080
Projection Technology	RGB liquid crystal shutter projection system (3LCD Reflective, 3-chip technology)
LCD	Size: 0.74” wide panel (Reflective HTPS) Pixel Number: 2,073,600 dots (1920 x 1080) x 3 Native Resolution: 1080p Aspect Ratio: Native 16:9 (4:3 resize, compatible with 4:3 and 2.35:1)
Brightness	White Light Output: 6,200 lm (Normal), 4,340 lm (Eco) Colour Light Output: 6,200 lm Light Output (Center): 6,700 lm
Contrast Ratio	Over 5,000,000:1 (Absolute Black: Full White 1,500 lm / Full Black 0 lm)
Light Source	Type: Laser Diode (41.9 mW Output) Life: 20,000 hours (Eco), 30,000 hours (Extended)
Projection Lens	Type: 1.7x Optical Zoom / Focus (Manual) F-Number: Not specified Focal Length: Not specified Zoom Ratio: 1.0 – 1.7 (Optical Zoom) Throw Ratio: 0.79 – 1.36
Screen Size (Projected Distance)	Standard: 80” diagonal [1.37–2.34 m] Zoom Wide: 60”–400” [1.02–6.95 m] Zoom Tele: 60”–400” [1.75–11.89 m] Supports 16:10, 16:6, 21:9
Geometric Correction	Vertical/Horizontal Keystone: ±30° / ±30°
Projection Orientation	360° Free

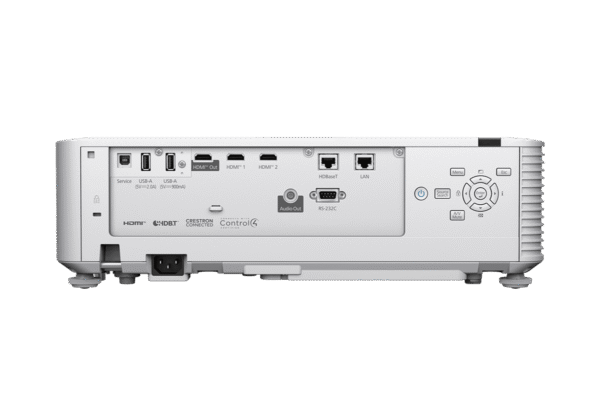

Connectivity	USB: USB Type A (2, Port 1: PC Free, Document Camera, Firmware Update, Copy OSD Settings, Content Playback, ELPEC01, 5V/2A Power Supply; Port 2: PC Free, Document Camera, Firmware Update, Copy OSD Settings, Content Playback, ELPEC01, 5V/0.9A Power Supply), USB Type B (1, Firmware Update, Copy OSD Settings) Network: Wired LAN (RJ45 x 1, 100Mbps), Wireless LAN (Built-in) Digital Input: HDMI (2, HDCP 2.3), HDBaseT (1, HDCP 2.3) Digital Output: HDMI Out (1, HDCP 2.3, supports HDMI 1 input) Audio Output: Stereo Mini (1) Control I/O: RS-232C (1, D-Sub 9pin)
Wireless Specifications	Built-in Wireless LAN Infrastructure: IEEE 802.11a (5GHz, 54 Mbps), IEEE 802.11b (2.4GHz, 11 Mbps), IEEE 802.11g (2.4GHz, 54 Mbps), IEEE 802.11n (2.4GHz/5GHz, 72.2/150 Mbps), IEEE 802.11ac (5GHz, 325 Mbps), IEEE 802.11ax Simple AP (Wi-Fi Direct): IEEE 802.11a (5GHz, 54 Mbps), IEEE 802.11g (2.4GHz, 54 Mbps), IEEE 802.11n (2.4GHz/5GHz, 72.2/150 Mbps), IEEE 802.11ac (5GHz, 325 Mbps), IEEE 802.11ax Security: Infrastructure: Open, WPA2/WPA3-PSK, WPA2/WPA3-EAP (PEAP, EAP-TLS), Simple AP: WPA2-PSK (AES) Miracast: Wi-Fi CERTIFIED Miracast R2, H.264 (AVC) Codec
Operating Temperature	Single Use: 0–45 °C [32–113 °F] (0–2,286 m), 0–40 °C [32–104 °F] (over 2,286 m) Multi-projection Use: 0–40 °C [32–104 °F] (0–2,286 m), 0–35 °C [32–95 °F] (over 2,286 m) 20%–80% Humidity, No Condensation
Operating Altitude	0–3,048 m (High Altitude Mode over 1,500 m)
Start-Up Period	12 seconds (Epson Logo), Warm-up Period: 30 seconds, Quick Start-Up: Less than 8 seconds (Display)
Cool Down Period	Instant Off
Direct Power On/Off	Yes
Power Supply Voltage	100–240 V AC ±10%, 50/60 Hz
Power Consumption (220-240V)	Laser Diode: 399 W (Normal), 295 W (Extended) Standby: 2.4 W (Normal), 0.4 W (Eco)
Dimensions Excluding Feet (W x D x H)	440 x 304 x 122 mm
Weight	Approx. 8.9 kg
Fan Noise	Normal: 34 dB, Eco: 25 dB
Air Filter	Type: Electrostatic Filter Maintenance Cycle: 20,000 hours (Normal), 30,000 hours (Extended)
Internal Speaker	Sound Output: 10W Monaural
Colour Modes	Dynamic, Bright Cinema, Natural, Cinema, Adobe RGB, Digital Cinema, 3D Dynamic, 3D Cinema
