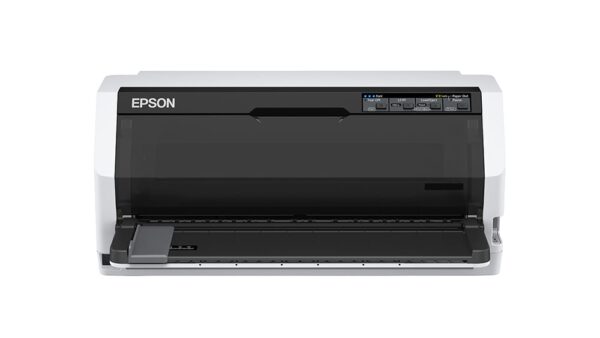

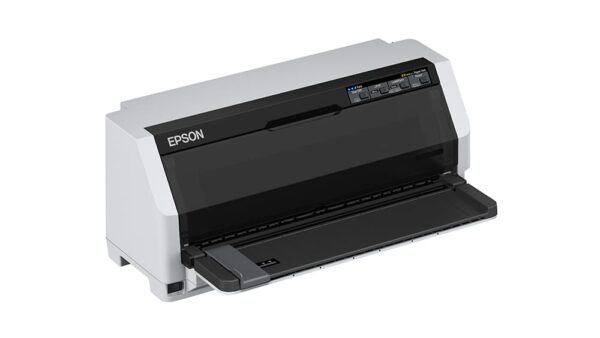

Epson LQ-780 Impact Dot Matrix Printer 24-Pin 487 cps – LQ-780

Original price was: ₱45,990.00.Current price is: ₱39,995.00.

High-speed printing at 487 cps (10 cpi, High-Speed Draft)
24-pin Eco-Drive print head for energy-efficient performance
Compact flat-top design, 25% smaller for desk space savings
Handles multi-part forms up to 7 layers with crisp output
Automatic platen gap adjustment for consistent print quality
Front and rear paper paths for versatile paper handling
Includes Epson Status Monitor 3 and Printer Setting Utility
Standard Parallel and USB 2.0 connectivity
SKU: LQ-780

In stock

Price Drop Alerts & Price History

We'll notify you the moment the price hits your target.

💡 Suggested alert: ₱37,900 [ Use this ]

Want to track and manage your alerts? Sign in or create an account.

SKU: LQ-780 Categories: Dot Matrix, Printers Tag: Epson

Epson LQ-780 Impact Dot Matrix Printer

The Epson LQ-780 impact dot matrix printer redefines efficiency for modern offices with its ultra-reliable flatbed printing and high-performance capabilities. Designed as the successor to the acclaimed LQ-680Pro, this printer delivers exceptional speed, reaching up to 487 cps at 10 cpi in High-Speed Draft mode, powered by a 24-pin Eco-Drive print head that balances productivity with energy efficiency. Its compact, 25% smaller flat-top housing optimizes desk space, making it ideal for countertop and desktop use, while the redesigned front sheet guide ensures smooth, low-profile paper loading. The LQ-780 excels in versatility, handling multi-part forms up to seven layers thick with crisp, clear output, and supports both front and rear paper paths for flexible operation. Enhanced by automatic platen gap adjustment, it effortlessly adapts to varying paper thicknesses, ensuring consistent print quality without manual intervention. Equipped with Epson Status Monitor 3 and Printer Setting Utility, users can easily monitor printer status and make adjustments directly from their PC. With standard Parallel and USB 2.0 connectivity, the LQ-780 integrates seamlessly into any workspace, offering unrivaled ease of use and reliability for demanding print tasks.

Specification	Epson LQ-780
SKU	LQ-780
Print Method	Impact dot matrix
Control Panel	4 Buttons and 6 LEDs
Print Direction	Bi-directional with logic seeking
Number of Pins in Head	24 pins
Control Code	ESC/P2, IBM-PPDS
Reliability	MVBF: 40 million lines (except print head) MTBF: 20,000 Hrs POH (25% Duty) Printhead Life: 400 million strokes/wire
Character Sets	1 legal character set, 14 international character sets, 13 character code tables (Standard), Italic, PC437, PC850, PC860, PC861, PC863, PC865, Abicomp, BRASCII, Roman 8, ISO Latin1, PC858, ISO 8859-15
Bitmap Fonts	Epson High-speed Draft/Script/OCR-B/Orator/Orator-S: 10 cpi; Epson Prestige: 10/12 cpi; Epson Draft/Courier: 10/12/15 cpi; Epson Roman/Sans Serif: 10/12/15 cpi, Proportional; Epson Script C: Proportional
Scalable Fonts	Epson Roman, Epson Sans Serif, Epson Roman T, Epson Sans Serif H: 10.5 pt., 8 pt. – 32 pt. (every 2 pt.)
Barcode	EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, PostNet
Paper Path	Manual Insertion: Front in, Front out Push Tractor: Rear in, Front out
Paper Media	Cut Sheet (Single Sheet): Width: 90 - 304.8 mm \| 3.5 - 12”, Length: 70 - 420 mm \| 2.8 - 16.5", Thickness: 0.065 - 0.19 mm \| 0.0025 - 0.0074" Cut Sheet (Multi-part Sheet): Width: 90 - 304.8 mm \| 3.5 - 12”, Length: 70 - 420 mm \| 2.8 - 16.5", Thickness: 0.12 - 0.49 mm \| 0.0047 - 0.019" Envelope (No.6): Width: 165 mm \| 6.5", Length: 92 mm \| 3.6", Thickness: 0.16 mm \| 0.063" Envelope (No.10): Width: 241 mm \| 9.5", Length: 105 mm \| 4.1", Thickness: 0.16 mm \| 0.063" Continuous Paper (Single Sheet): Width: 101.6 - 304.8 mm \| 4 - 12", Length: 76.2 - 558.8 mm \| 3.0 - 22.0", Thickness: 0.065 - 0.15 mm \| 0.002 - 0.005" Continuous Paper (Multi-part Forms): Width: 101.6 - 304.8 mm \| 4 - 12", Length: 76.2 - 558.8 mm \| 3.0 - 22.0", Thickness: 0.12 - 0.49 mm \| 0.0047 - 0.019" Card: Width: 90 - 200 mm \| 3.54 - 7.8", Length: 90 - 200 mm \| 3.54 - 7.8", Thickness: 0.22 mm \| 0.087" Roll Paper: Width: 213 - 219 mm \| 8.38 - 8.62", Thickness: 0.07 - 0.09 mm \| 0.002 - 0.005"
Line Spacing	4.23mm (1/6”) or programmable in increments of 3.175mm (1/8”) or 0.0706mm (1/360”)
Memory Buffer	128 KB
Multipart Copy Capability	1 original + 6 copies
Supported OS	Microsoft Windows XP / Vista / 7 / 8 / 8.1 / 10 / 11
Utility	Epson Status Monitor 3: Microsoft Windows XP / Vista / 7 / 8 / 10 / 11 Epson Setting Utility: Microsoft Windows XP / Vista / 7 / 8 / 10 / 11
Dimensions (W x D x H)	480 x 301.3 x 211 mm
Weight	Approx. 6.7kg
Ribbon Cartridge Black	10 Million characters (at 10 cpi in letter quality mode with 48 dots/character)
Options	Ribbon Cartridge (Black) - C13S015658 Roll Paper Holder
Rated Voltage	AC 220 - 240 V
Rated Frequency	50 - 60 Hz
Power Consumption	Operating: Approx. 46W Sleep Mode: Approx. 0.8W Power Off: Approx. 0.1W
Temperature	5 - 35°C
Humidity	10 - 80% RH
Acoustic Noise	59 dB
Interface	Bi-directional Parallel (IEEE 1284 Nibble mode support), USB 2.0 (Full Speed Mode)
Print Speed	High Speed Draft: 10/12 cpi: 487 / 584 cps Draft: 15 cpi: 549 cps, 12 cpi: 439 cps, 10 cpi: 366 cps Letter Quality: 15 cpi: 181 cps, 12 cpi: 145 cps, 10 cpi: 121 cps (Condensed) 20 cpi: 242 cps, 17 cpi: 207 cps
