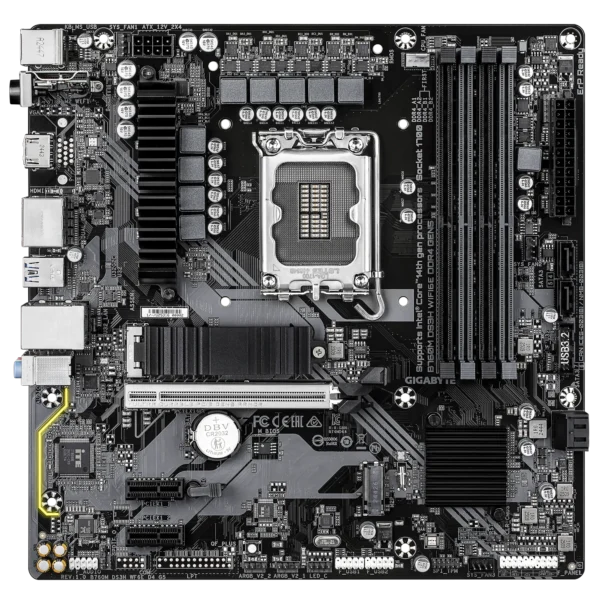

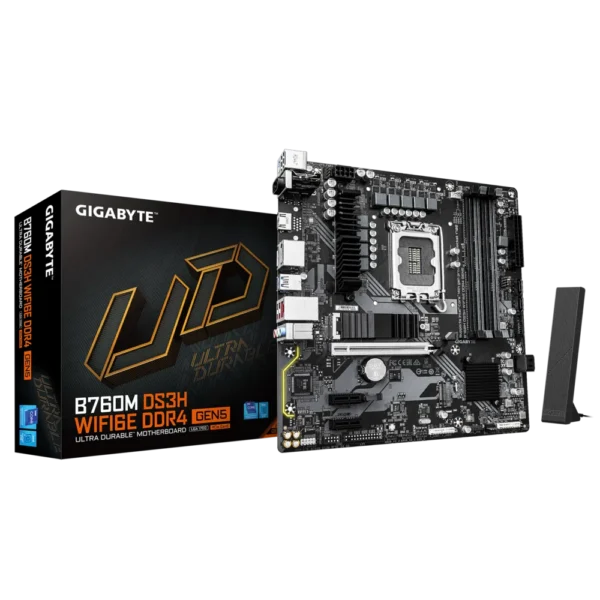

Power up your Intel-based PC with the GIGABYTE GA-B760M-DS3H-WF6E-D4-G5, a Micro-ATX motherboard optimized for Intel® Core™ 14th, 13th, and 12th Gen processors. Featuring the Intel® B760 chipset, it supports up to 128GB of DDR4 memory at speeds up to 5333MT/s (OC) with XMP for cost-effective performance. The PCIe 5.0 x16 slot delivers double the bandwidth of PCIe 4.0, ideal for high-end GPUs like the NVIDIA RTX 4060. Two M.2 slots (PCIe 4.0) with M.2 Thermal Guard offer storage speeds up to 64Gbps. A 6+2+1 phase VRM ensures stable power for CPUs like the Intel Core i5-13400. Wi-Fi 6E, 2.5GbE LAN, and USB 3.2 Gen 2 Type-C provide fast connectivity. Triple-display support (1 x HDMI, 2 x DisplayPort) enhances versatility. Q-Flash Plus simplifies BIOS updates, and RGB Fusion 2.0 adds customizable aesthetics. Perfect for budget-friendly Micro-ATX builds.
4 x DDR4 DIMM, up to 128GB, 5333(O.C.)/3200/3000/2933/2666/2400/2133 MT/s, ECC/Non-ECC Un-buffered, Dual Channel, XMP
Onboard Graphics
1 x HDMI (4096x2160@60Hz, HDMI 2.1, HDCP 2.3), 2 x DisplayPort (4096x2304@60Hz, DP 1.2, HDCP 2.3), Triple-Display Support
Expansion Slots
CPU: 1 x PCIe 5.0 x16; Chipset: 2 x PCIe 3.0 x1
Storage
CPU: 1 x M.2 (2280, PCIe 4.0 x4/x2, M2A_CPU); Chipset: 1 x M.2 (2280, PCIe 4.0 x4/x2, M2P_SB); 4 x SATA 6Gb/s; RAID 0/1/5/10 (SATA)
Audio
Realtek Audio CODEC, 7.1-channel, S/PDIF Out
LAN
Realtek 2.5GbE (2.5 Gbps/1 Gbps/100 Mbps)
Wireless
Intel Wi-Fi 6E AX210 (2.4/5/6GHz, 11ax 160MHz), Bluetooth 5.3
USB
Rear: 1 x USB 3.2 Gen 2 Type-C, 3 x USB 3.2 Gen 1, 2 x USB 2.0; Front: 1 x USB 3.2 Gen 1 header (2 ports), 2 x USB 2.0 headers (4 ports)
Internal I/O Connectors
1 x 24-pin ATX, 1 x 8-pin 12V, 1 x CPU Fan, 3 x System Fan, 2 x ARGB Gen2, 1 x RGB, 2 x M.2, 4 x SATA 6Gb/s, 1 x Front Panel, 1 x Front Panel Audio, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers, 1 x TPM, 1 x S/PDIF Out, 1 x Q-Flash Plus Button, 1 x Reset Jumper, 1 x Clear CMOS Jumper
Back Panel Connectors
2 x USB 2.0, 1 x PS/2 Keyboard/Mouse, 2 x Antenna (2T2R), 1 x HDMI, 2 x DisplayPort, 3 x USB 3.2 Gen 1, 1 x USB 3.2 Gen 2 Type-C, 1 x RJ-45, 3 x Audio Jacks
I/O Controller
iTE I/O Controller Chip
H/W Monitoring
Voltage, Temperature, Fan Speed, Water Cooling Flow Rate, Fan Fail Warning, Fan Speed Control
BIOS
128 Mbit AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
GIGABYTE Control Center, Q-Flash, Q-Flash Plus, Smart Backup
Bundled Software
Norton Internet Security (OEM)
Operating System
Windows 11 64-bit, Windows 10 64-bit
Form Factor
Micro-ATX, 24.4 x 24.4 cm
Notes
Wi-Fi 6E requires Windows 11 for 6GHz; Check CPU/Memory support at www.gigabyte.com
Weight
1.7 kg
Dimensions
31 × 29 × 8 cm
Brand
Gigabyte
Desktop RAM
DDR4
Socket
LGA 1700 CPU
