Display Outputs: 3 x DisplayPort 2.1b, 1 x HDMI 2.1b
Maximum Display Support: 4
Power Connectors: 1 x 16-pin (12V-2×6 to 3x PCIe 8-pin adapter included)
Recommended PSU: 850W
Dimensions: L=340 mm, W=140 mm, H=70 mm
Local Compatibility Note: Demands 340mm of chassis clearance and a rigid installation using the included VGA holder; repasting is discouraged due to the complex factory-applied thermal putty.
In stock
ℹ️
For walk-in customers: please always INQUIRE FIRST before visiting as not all items are displayed in our physical store. As an online-first store, most of our inventory is held in our online warehouse and is transferred to the store upon request.
This heavyweight graphics card leverages the newest NVIDIA Blackwell architecture to bring unprecedented performance right to your desktop. Built specifically for uncompromising 4K gamers and creative professionals in the local market, it confidently manages full ray tracing workloads and intensive video rendering tasks while staying consistently cool under pressure.
Gigabyte engineered the GAMING OC variant to deliver robust performance without forcing you to pay the extreme premium associated with flashier halo models. Out of the box, you receive a dependable factory overclock that pushes the core clock to 2730 MHz. The aggressive mechanical aesthetic features a reinforced metal backplate and subtle RGB Halo lighting, ensuring your build looks imposing while remaining highly functional.

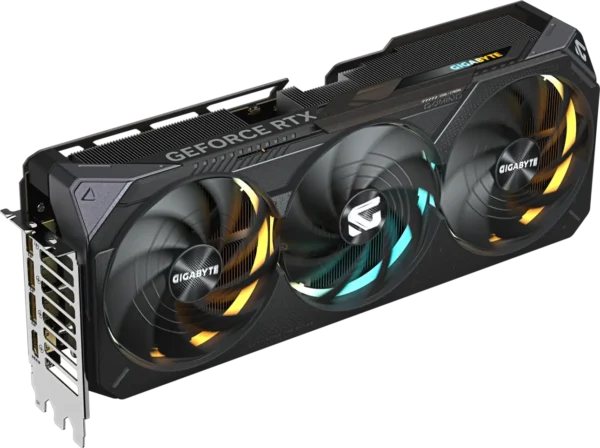

Massive WINDFORCE Thermal Capacity
Keeping a processor of this magnitude completely stable requires substantial cooling infrastructure. The WINDFORCE system combines three alternate-spinning Hawk fans with a massive vapor chamber and composite copper heat pipes. Crucially, Gigabyte utilizes a server-grade thermal conductive gel directly on the components to maximize heat transfer away from the vital circuitry. This thoughtful design guarantees that your frame rates stay perfectly consistent across lengthy gaming sessions without any thermal throttling.
Dual BIOS Flexibility
You have total control over your acoustic environment thanks to the physical Dual BIOS switch. While the factory-default Performance mode maximizes airflow for optimal cooling, toggling to the Silent mode adjusts the fan curve significantly. This reduces the acoustic footprint down to an incredibly quiet 31.6 dBA under load, allowing you to enjoy demanding titles in relative silence without sacrificing noticeable frame rates.
What Philippine Buyers Are Saying
Local PC building communities regard this model as one of the most well-rounded choices in the current enthusiast tier. Buyers frequently commend the impressive 4K capabilities and the smooth implementation of DLSS 4.5 frame generation in modern titles. Enthusiasts strongly recommend utilizing the included VGA holder immediately upon installation, as the substantial weight of the cooler will absolutely cause motherboard sag over time if left unsupported. Additionally, experienced users praise the Silent BIOS setting for dramatically reducing fan noise in quiet home office environments.
Known Compatibility and Setup Notes
Power Supply Requirement: You must connect the included 12V-2×6 adapter to three separate PCIe 8-pin power cables originating directly from a high-quality power supply of at least 850 watts.
This component requires extensive physical clearance inside your case, measuring exactly 340 mm in length and taking up significant width. You should note that because Gigabyte uses a specialized server-grade thermal putty instead of standard thermal pads, dismantling the cooler for routine maintenance is exceptionally difficult and messy. We highly advise against opening the card unless absolutely necessary to avoid voiding your extensive 4-year warranty.
Who Should Buy This
4K Gaming Enthusiasts: Players requiring massive memory bandwidth and DLSS 4.5 support to maximize visual fidelity on ultra-high-definition monitors.
Acoustic Focused Builders: Users who want elite performance but intend to run the hardware exclusively on the Silent BIOS profile for a pristine auditory experience.
Professional Creators: Video editors and AI developers who need 16GB of fast GDDR7 VRAM to accelerate local rendering tasks and complex neural shaders.
Detailed Specifications
General Information
Model Name
Gigabyte GeForce RTX™ 5080 GAMING OC 16G
SKU
GV-N5080GAMING-OC-16GD
Graphic Engine
NVIDIA® GeForce RTX™ 5080
Bus Standard
PCI Express 5.0
OpenGL
OpenGL 4.6
DirectX
DirectX 12 API
Memory & Clocks
Video Memory
16GB GDDR7
Core Clock
2730 MHz (Reference: 2617 MHz)
CUDA® Cores
10752
Memory Clock
30 Gbps
Memory Interface
256 bit
Connectivity & Displays
Resolution
Digital Max Resolution 7680 x 4320

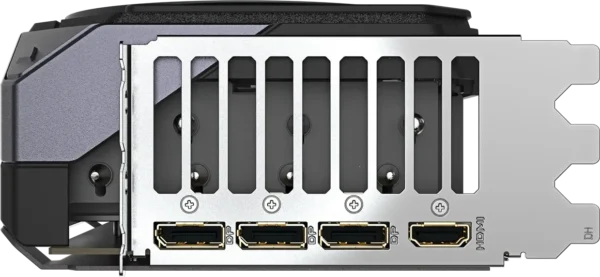

Output Interface
DisplayPort 2.1b x 3
HDMI 2.1b x 1
Multi-view
4
Physical & Power
Card Size
L=340 mm, W=140 mm, H=70 mm
PCB Form
ATX
Recommended PSU
850W
Power Connectors
16 pin x 1
Cooling & Features
Cooling System
WINDFORCE Cooling with Hawk fan, Server-grade thermal conductive gel, Large vapor chamber
Dual BIOS
Performance / Silent Modes
Lighting
RGB Halo (Synchronizable via GIGABYTE CONTROL CENTER)
Durability
Ultra Durable Certified, Reinforced Metal Backplate, Sliding Side Plate
Included Extras
Accessories
1 x VGA manual
1 x Warranty notice
1 x 12V-2x6 to 3x PCIe 8pin adapter
1 x Versatile VGA holder
1 x Versatile VGA holder manual
Warranty
4 years total protection (Standard 3-year + 1-year extension upon online registration within 30 days)
Packaging Weight
3 kg
Packaging Dimensions (L×W×H)
45 × 39 × 12 cm
Brand
Gigabyte
