Sensor Panel Link: Internal HDMI port for easy in-chassis display integration
Premium Thermal Design: VRM Thermal Armor Advanced and M.2 Thermal Guard L
Stunning White “ICE” PCB and aesthetic with RGB Fusion lighting control
In stock
ℹ️
For walk-in customers: please always INQUIRE FIRST before visiting as not all items are displayed in our physical store. As an online-first store, most of our inventory is held in our online warehouse and is transferred to the store upon request.

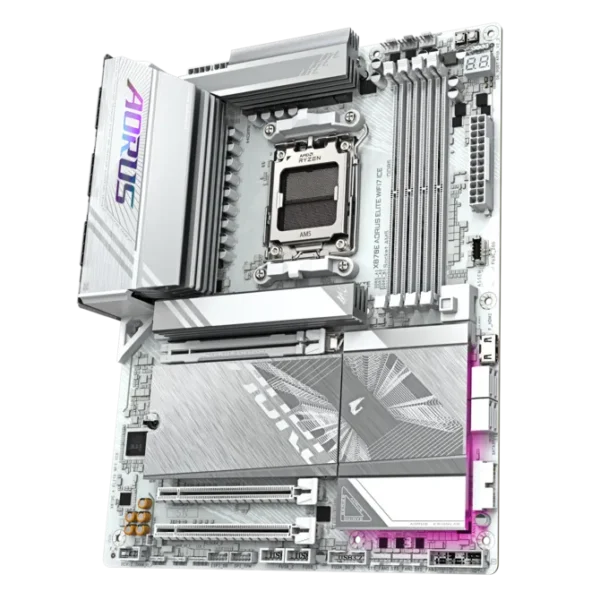

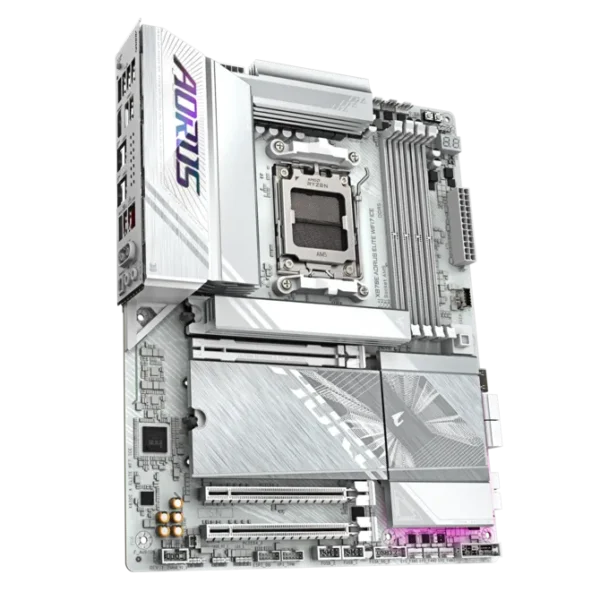

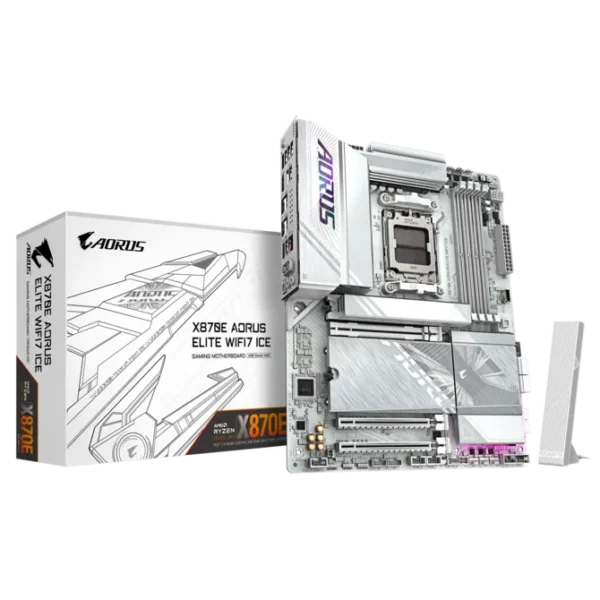

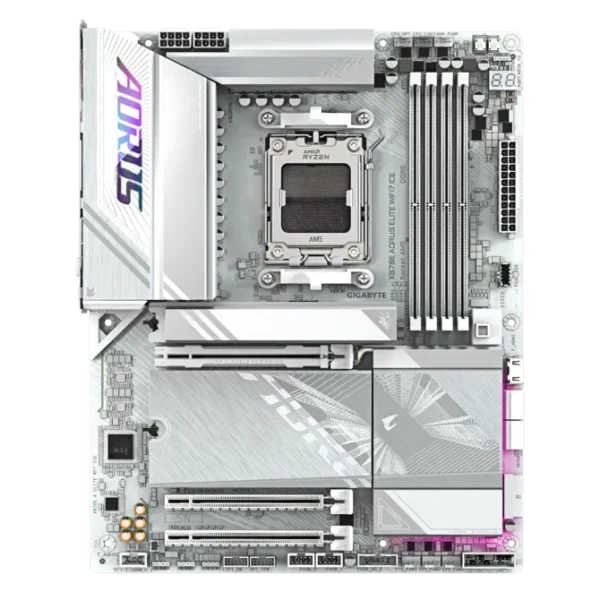

Unleash Extreme Performance with the X870E AORUS ELITE WIFI7 ICE
Step into the future of high-performance computing with the Gigabyte X870E AORUS ELITE WIFI7 ICE. Designed for the most demanding gamers and creators, this motherboard is built on the advanced AMD X870E chipset, offering full support for the latest AMD Ryzen™ 9000, 8000, and 7000 Series processors on the AM5 socket. Its striking all-white “ICE” aesthetic is more than just a visual statement; it represents a cool, efficient, and robust foundation for your dream PC build. Engineered with a server-grade 6-layer PCB and a 2X copper enhancement, this board ensures superior signal integrity and thermal efficiency, allowing you to push your system to its limits without compromise.
Robust Power Design for Overclocking Mastery
At the heart of the X870E AORUS ELITE lies a formidable Twin Digital VRM solution boasting a 16+2+2 phase design equipped with 60A DrMOS. This unparalleled power delivery system ensures stable and precise voltage to your high-core-count CPU, unlocking the full potential of Ryzen processors. Complemented by the “AORUS AI SNATCH” technology, the motherboard utilizes artificial intelligence to optimize overclocking and DDR5 memory performance with a single click. Whether you are gaming at high frame rates or rendering complex 3D scenes, the Ultra Durable™ power connectors and premium chokes guarantee rock-solid stability under heavy loads.
Next-Generation Connectivity and Storage
Speed is paramount in modern computing, and this motherboard delivers on all fronts. It features dual USB4® Type-C ports capable of blistering 40Gbps data transfer speeds and DisplayPort-Alt mode, perfect for high-speed external storage or ultra-HD displays. Networking is revolutionized by the onboard Wi-Fi 7 (802.11be) module, supported by a directional Ultra-high gain antenna and the innovative WIFI EZ-Plug for tool-free installation. For wired connections, the 2.5GbE LAN provides a low-latency, high-bandwidth pipeline. Storage enthusiasts will appreciate the four M.2 slots, including three PCIe 5.0 x4 slots that support the fastest NVMe SSDs available, ensuring near-instant boot times and level loading.
DIY-Friendly Innovations and Thermal Excellence
Gigabyte has redefined the PC building experience with a suite of DIY-friendly features. The EZ-Latch Plus and EZ-Latch Click systems allow for screwless installation of M.2 SSDs and quick release of graphics cards, making upgrades effortless. A unique “Sensor Panel Link” feature includes an onboard internal HDMI port, simplifying the setup of in-chassis LCD status screens for a truly personalized rig. To keep thermals in check, the board utilizes VRM Thermal Armor Advanced with Fins-Array technology and M.2 Thermal Guard L with backplates, dissipating heat efficiently to prevent throttling and maintain peak performance during marathon gaming sessions.
1 x HDMI 2.1 (Back Panel): Max 4096x2160@60 Hz (HDCP 2.3, HDR)
2 x USB4 Type-C (Back Panel): Max 3840x2160@240 Hz (DisplayPort 1.4)
1 x Front HDMI (Internal): Max 1920x1080@30 Hz (For Sensor Panel Link)
Audio
Realtek® ALC1220 CODEC (High Definition Audio)
2/4/5.1/7.1-channel Support
Audiophile Grade Capacitors, S/PDIF Out Support
LAN
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless
Realtek® Wi-Fi 7 RTL8922AE (802.11be, 160MHz)
Supports 2.4/5/6 GHz frequency bands
Bluetooth 5.4
Includes Directional Ultra-high gain antenna (WIFI EZ-Plug)
Expansion Slots
CPU: 1 x PCI Express x16 slot (PCIe 5.0 support for Ryzen 9000/7000)
*Note: Bandwidth shared with M2B_CPU/M2C_CPU; runs at x8 if populated. Chipset:
1 x PCI Express x16 slot (PCIe 4.0 running at x4)
1 x PCI Express x16 slot (PCIe 3.0 running at x4)
Storage Interface
4 x M.2 Slots Total:
1 x M.2 (M2A_CPU): PCIe 5.0 x4/x2 (Ryzen 9000/7000)
2 x M.2 (M2B_CPU, M2C_CPU): PCIe 5.0 x4/x2 (Bandwidth shared with PCIe x16)
1 x M.2 (M2D_SB): PCIe 4.0 x4/x2 (Chipset) SATA: 4 x SATA 6Gb/s connectors RAID: RAID 0, 1, 10 (SATA); RAID 0, 1, 5, 10 (NVMe)
USB Ports
Back Panel:
2 x USB4® Type-C® (40Gbps, DP-Alt)
2 x USB 3.2 Gen 2 Type-A (Red)
3 x USB 3.2 Gen 1
4 x USB 2.0/1.1 Internal Headers:
1 x USB Type-C® (USB 3.2 Gen 2x2)
2 x USB 3.2 Gen 1 headers (4 ports)
2 x USB 2.0/1.1 headers (4 ports)
1 x Q-Flash Plus Button

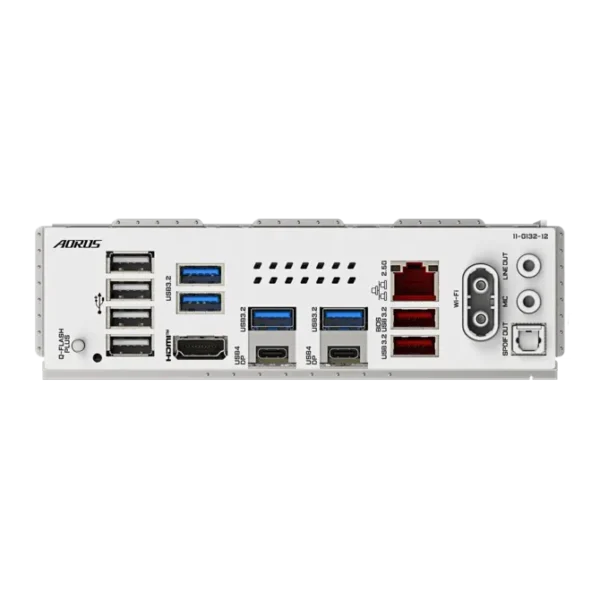

2 x USB4 Type-C, 6 x USB Type-A, 4 x USB 2.0
1 x HDMI, 1 x RJ-45 (2.5GbE), 2 x Audio Jacks, 1 x Optical S/PDIF
2 x Antenna Connectors (WIFI EZ-Plug)
Unique Features
AORUS AI SNATCH: Auto-Overclocking & Memory Boost EZ-Latch: PCIe EZ-Latch Plus (GPU), M.2 EZ-Latch Click/Plus (SSD) Sensor Panel Link: Built-in internal video port for case screens Durability: PCIe UD Slot X (10X Strength), UD Power Connector
Software & BIOS
GIGABYTE Control Center (GCC), RGB Fusion, Q-Flash Plus
256 Mbit Flash, AMI UEFI BIOS (Multi-Theme, UC BIOS)
Packaging Weight
2.35 kg
Packaging Dimensions (L×W×H)
35 × 30 × 9 cm
Brand
Gigabyte
Desktop RAM
DDR5
Socket
AM5 CPU
