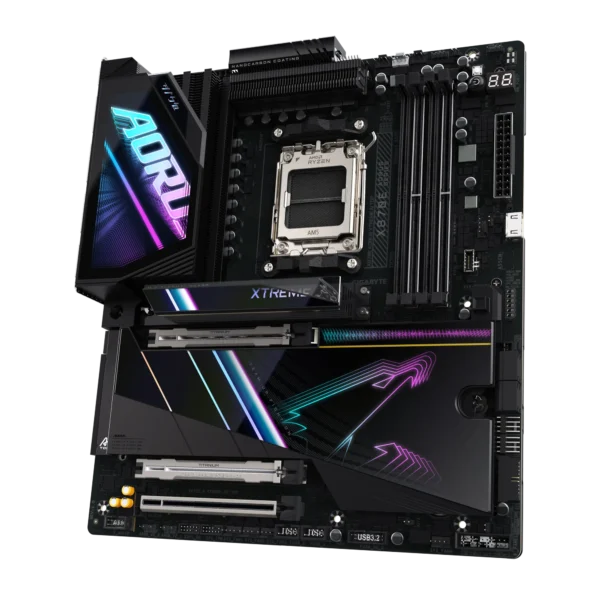

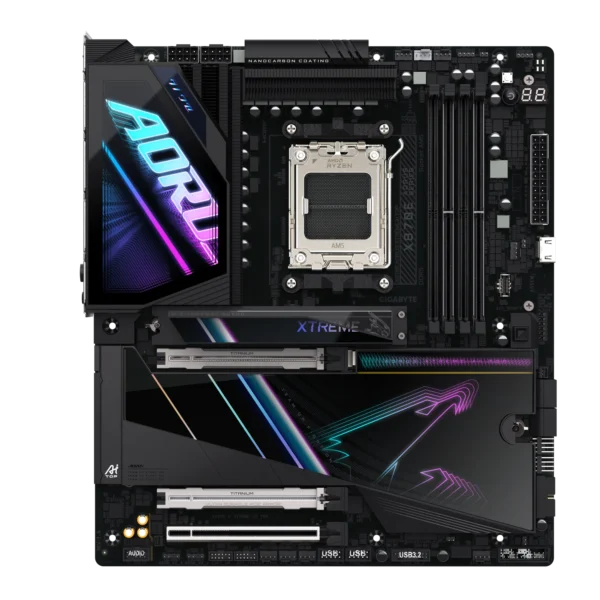

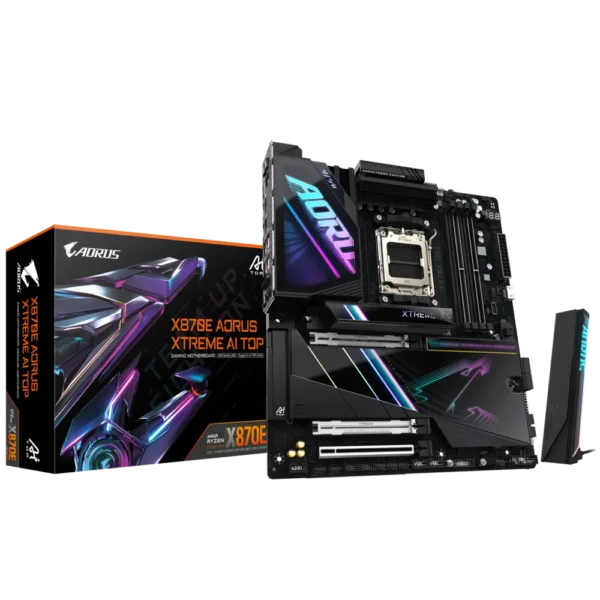

GIGABYTE X870E AORUS XTREME AI TOP E-ATX DDR5 Motherboard - X870E A XTREME AI TOP

GIGABYTE X870E AORUS XTREME AI TOP E-ATX DDR5 Motherboard – X870E A XTREME AI TOP

Original price was: ₱68,900.00.Current price is: ₱59,995.00.

GIGABYTE X870E AORUS XTREME AI TOP E-ATX for AMD Ryzen™ 9000/8000/7000
DDR5 8800MT/s (OC), up to 256GB, AMD X870E chipset
2 x PCIe 5.0 x16, 4 x M.2 (1 x PCIe 5.0), 4 x SATA 6Gb/s
Dual 10GbE LAN, Wi-Fi 7, Realtek ALC1220 with ESS ES9118 DAC
AORUS AI SNATCH, DDR Wind Blade, I/O Zone AORUS RGB

Out of stock

Restock & Price Alerts

We'll email you the moment this is back in stock. If you enter a target price, we'll also send you a separate alert if the price drops to your goal later!

🔓 Sign in to unlock full price history charts and manage your alerts.

SKU: GA-X870E-A-XTREME-AI-TOP Categories: AMD AM5 Motherboards, Motherboards Tag: Gigabyte

Unleash extreme performance with the GIGABYTE X870E AORUS XTREME AI TOP, an E-ATX motherboard for AMD Ryzen™ 9000, 8000, and 7000 Series processors. Powered by the AMD X870E chipset, it supports up to 256GB of DDR5 memory at 8800MT/s (OC) with DDR Wind Blade cooling for AI and gaming workloads. The 18+2+2 digital twin VRM ensures robust power delivery for CPUs like the Ryzen 9 9900X. Featuring PCIe 5.0 x16 slots and a PCIe 5.0 M.2 slot (up to 16GB/s), it’s ideal for next-gen GPUs and SSDs. Dual 10GbE LAN and Wi-Fi 7 deliver unmatched connectivity, while AORUS AI SNATCH optimizes performance. With I/O Zone AORUS RGB, it’s perfect for enthusiasts seeking power and style.

Specification	Details
Model	GIGABYTE X870E AORUS XTREME AI TOP
CPU	AM5: AMD Ryzen™ 9000/8000/7000 Series Processors
Chipset	AMD X870E Chipset
Memory	4 x DDR5 DIMM, up to 256GB, 8800(OC)/8600(OC)/8400(OC)/8266(OC)/8200(OC)/8000(OC)/7950(OC)/7900(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5200/4800 MT/s, ECC/Non-ECC, Dual Channel, AMD EXPO, XMP
Onboard Graphics	2 x USB4 Type-C (DisplayPort 1.4, 3840x2160@240Hz), 1 x HDMI 2.1 (4096x2160@60Hz), 1 x Front HDMI 1.4 (1920x1080@30Hz)
Expansion Slots	CPU: 1 x PCIe 5.0 x16 (x16 or x8), 1 x PCIe 5.0 x8; Chipset: 1 x PCIe 4.0 x16 (x2)
Storage	CPU: 1 x M.2 (PCIe 5.0 x4); Chipset: 2 x M.2 (PCIe 4.0 x4), 1 x M.2 (PCIe 4.0 x2); 4 x SATA 6Gb/s; RAID 0/1/5/10 (NVMe), RAID 0/1/10 (SATA)
LAN	2 x Marvell AQtion AQC113C 10GbE (10/5/2.5/1Gbps/100Mbps)
Wireless	Wi-Fi 7 (802.11be, 2.4/5/6GHz), Bluetooth 5.4
USB	Rear: 2 x USB4 Type-C, 6 x USB 3.2 Gen 2 Type-A, 2 x USB 2.0; Front: 1 x USB 3.2 Gen 2x2 Type-C, 4 x USB 3.2 Gen 1, 4 x USB 2.0
Audio	Realtek ALC1220, ESS ES9118 DAC, 5.1-channel, DTS:X Ultra, 120dB SNR
Back Panel I/O	2 x USB4 Type-C, 6 x USB 3.2 Gen 2 Type-A, 2 x USB 2.0, 2 x RJ-45, 2 x Antenna, 1 x HDMI, 1 x S/PDIF Out, 2 x Audio Jacks, 1 x Q-Flash Plus, 1 x Clear CMOS
Internal I/O Connectors	1 x 24-pin Power, 2 x 8-pin +12V, 1 x CPU Fan, 1 x CPU Fan/Pump, 4 x System Fan, 4 x Fan/Pump, 4 x M.2, 4 x SATA 6Gb/s, 1 x USB 3.2 Gen 2x2 Type-C, 2 x USB 3.2 Gen 1, 2 x USB 2.0, 3 x Addressable RGB Gen2, 1 x RGB, 1 x Front Panel, 1 x Front Audio, 1 x HDMI, 2 x Temp Sensor, 1 x Noise Detection, 1 x TPM, 1 x Power Button, 1 x Reset Button, Voltage Points
Unique Features	GIGABYTE Control Center, Q-Flash Plus, Smart Backup, AORUS AI SNATCH, DDR Wind Blade, M.2 EZ-Latch, I/O Zone AORUS RGB
BIOS	256Mb UEFI AMI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Operating System	Windows 11 64-bit
Form Factor	E-ATX, 30.5 x 26.9 cm
Notes	Check CPU/Memory support at www.gigabyte.com
