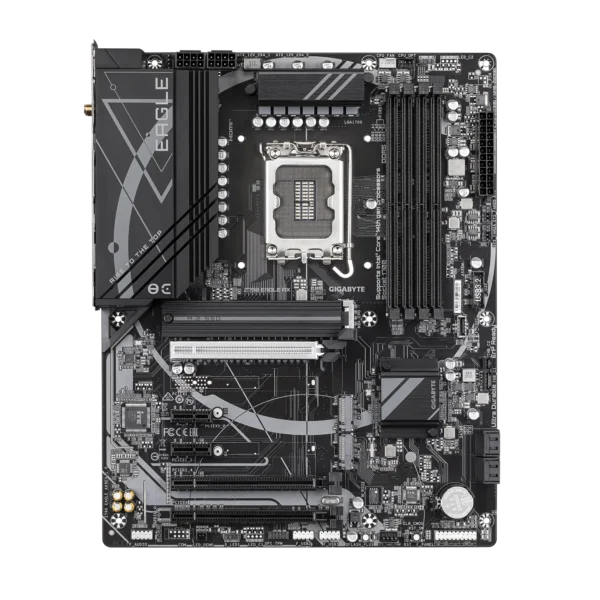

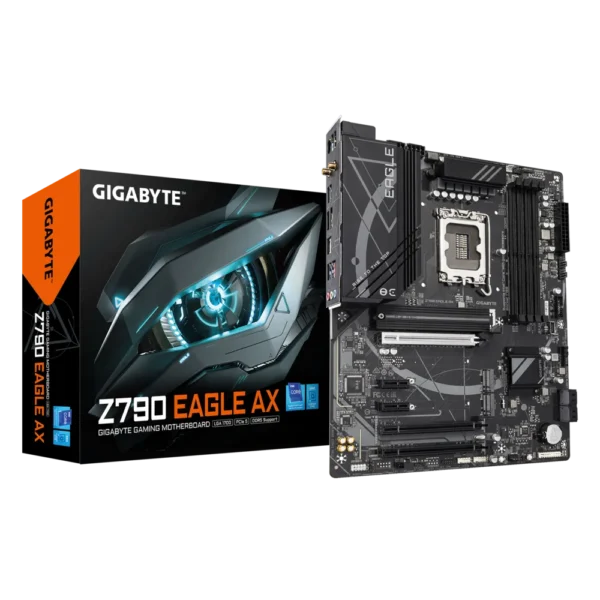

Elevate your gaming PC with the GIGABYTE GA-Z790-EAGLE-AX, an ATX motherboard optimized for Intel® 14th, 13th, and 12th Gen Core™ processors. Featuring the Intel Z790 chipset, it supports up to 256GB of DDR5 memory at speeds up to 7600MT/s (OC) for Core i9/i7, delivering top-tier performance. The PCIe 5.0 x16 slot supports high-end GPUs, while three M.2 slots (PCIe 4.0) offer fast storage up to 64Gbps. A 12+1+1 phase VRM ensures stable power for CPUs like the Intel Core i7-14700K. Advanced cooling with M.2 Thermal Guard and VRM heatsinks keeps your system cool. Wi-Fi 6E and Realtek 2.5Gb Ethernet provide fast connectivity. Q-Flash Plus enables easy BIOS updates, and RGB Fusion 2.0 adds customizable aesthetics. Perfect for high-performance Intel ATX builds on a budget.
Specification
Details
Model
GIGABYTE GA-Z790-EAGLE-AX
CPU
LGA1700: Intel® 14th/13th/12th Gen Core™, Pentium® Gold, Celeron® Processors
Chipset
Intel® Z790 Express Chipset
Memory
4 x DDR5 DIMM, up to 256GB, 7600(O.C.)/7400(O.C.)/7200(O.C.)/7000(O.C.)/6800(O.C.)/6600(O.C.)/6400(O.C.)/6200(O.C.)/6000(O.C.)/5800(O.C.)/5600/5400/5200/4800/4400 MT/s (Core i9/i7), 4800/4400 MT/s (others), ECC/Non-ECC Un-buffered, Dual Channel, XMP
Onboard Graphics
1 x HDMI (4096x2160@60Hz, HDMI 2.1, HDCP 2.3), 1 x DisplayPort (4096x2304@60Hz, DP 1.2, HDCP 2.3)
Expansion Slots
CPU: 1 x PCIe 5.0 x16 (PCIEX16); Chipset: 1 x PCIe 4.0 x16 (x4 mode, PCIEX4), 1 x PCIe 3.0 x16 (x1 mode, PCIEX1_4), 2 x PCIe 3.0 x1 (PCIEX1_2, PCIEX1_3)
Storage
CPU: 1 x M.2 (22110/2280, PCIe 4.0 x4/x2, M2A_CPU); Chipset: 1 x M.2 (2280, PCIe 4.0 x4/x2, M2P_SB), 1 x M.2 (2280, SATA/PCIe 4.0 x4/x2, M2M_SB); 4 x SATA 6Gb/s; RAID 0/1/5/10 (NVMe/SATA)
Audio
Realtek Audio CODEC, 7.1-channel, S/PDIF Out
LAN
Realtek 2.5GbE (2.5 Gbps/1 Gbps/100 Mbps)
Wireless
Wi-Fi 6E (Intel AX211 or Realtek RTL8852CE, 2.4/5/6GHz, 11ax 160MHz), Bluetooth 5.3
USB
Rear: 1 x USB 3.2 Gen 2 Type-C, 1 x USB 3.2 Gen 2 Type-A, 4 x USB 3.2 Gen 1, 2 x USB 2.0; Front: 1 x USB 3.2 Gen 1 Type-C, 1 x USB 3.2 Gen 1 header (2 ports), 2 x USB 2.0 headers (4 ports)
Internal I/O Connectors
1 x 24-pin ATX, 2 x 8-pin 12V, 1 x CPU Fan, 1 x CPU Fan/Pump, 3 x System Fan, 1 x System Fan/Pump, 2 x ARGB, 3 x M.2, 4 x SATA 6Gb/s, 1 x Front Panel, 1 x Front Panel Audio, 1 x S/PDIF Out, 1 x USB 3.2 Gen 1 Type-C, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers, 2 x Thunderbolt Add-in, 1 x TPM, 1 x Reset Button, 1 x Q-Flash Plus Button, 1 x Reset Jumper, 1 x Clear CMOS Jumper

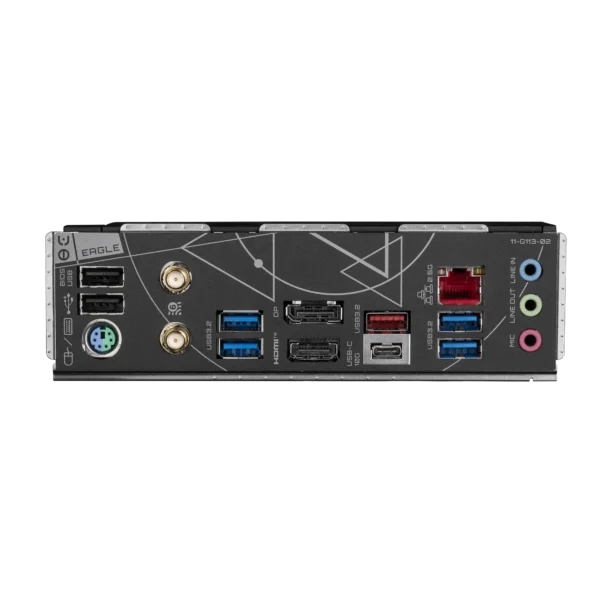

Back Panel Connectors
1 x PS/2 Keyboard/Mouse, 1 x USB 3.2 Gen 2 Type-C, 1 x USB 3.2 Gen 2 Type-A, 4 x USB 3.2 Gen 1, 2 x USB 2.0, 2 x SMA Antenna, 1 x HDMI, 1 x DisplayPort, 1 x RJ-45, 3 x Audio Jacks
I/O Controller
iTE I/O Controller Chip
H/W Monitoring
Voltage, Temperature, Fan Speed, Water Cooling Flow Rate, Fan Fail Warning, Fan Speed Control
BIOS
256 Mbit AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
GIGABYTE Control Center, Q-Flash, Q-Flash Plus, Smart Backup
Bundled Software
Norton Internet Security (OEM), LAN Bandwidth Management
Operating System
Windows 11 64-bit, Windows 10 64-bit
Form Factor
ATX, 30.5 x 24.4 cm
Notes
Wi-Fi 6E requires Windows 11 for 6GHz; Check CPU/Memory support at www.gigabyte.com
Weight
2.6 kg
Dimensions
37 × 28 × 8 cm
Brand
Gigabyte
Desktop RAM
DDR5
Socket
LGA 1700 CPU
