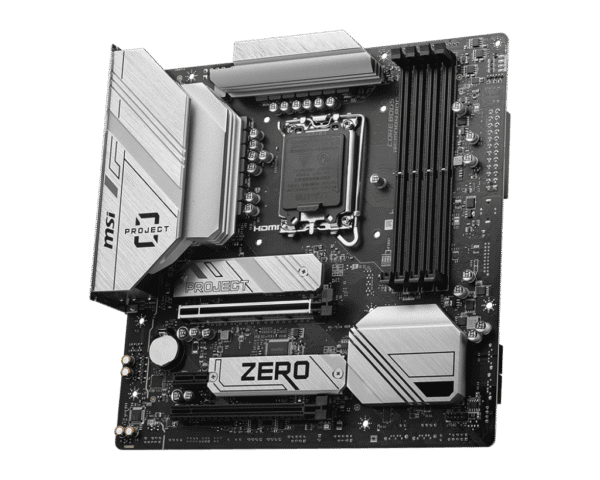

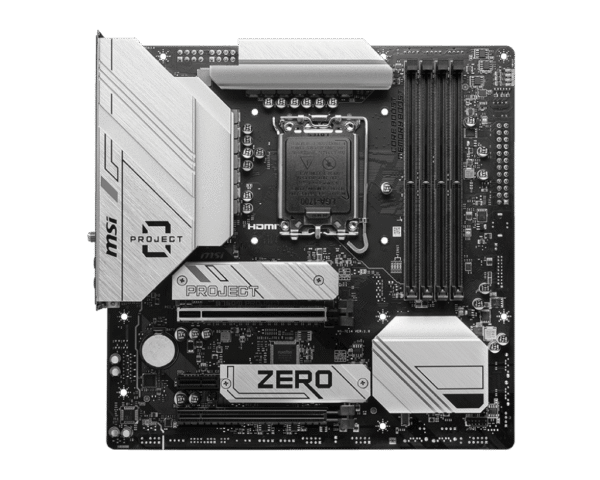

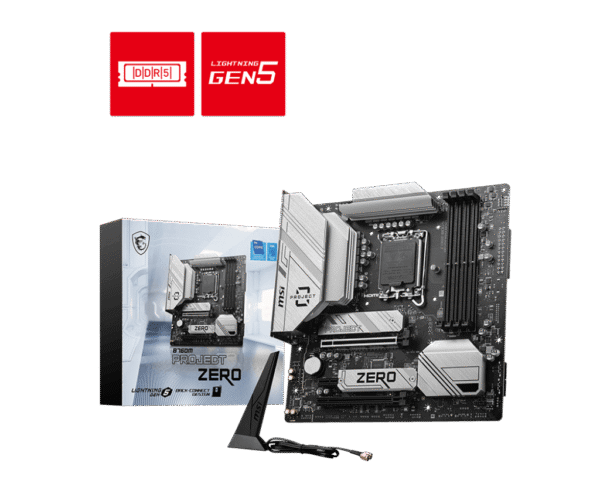

MSI B760M PROJECT ZERO Motherboard Intel B760 LGA 1700 DDR5 256GB PCIe 5.0 Wi-Fi 6E HDMI DisplayPort mATX - B760M PROJECT ZERO

MSI B760M PROJECT ZERO Motherboard Intel B760 LGA 1700 DDR5 256GB PCIe 5.0 Wi-Fi 6E HDMI DisplayPort mATX – B760M PROJECT ZERO

Original price was: ₱14,700.00.Current price is: ₱12,800.00.

Supports 12th/13th/14th Gen Intel Core, Pentium Gold, Celeron (LGA 1700)
4x DDR5 up to 256GB, 7800+ MHz (OC), Dual-Channel, Intel XMP
PCIe 5.0 x16 slot for future-proof expansion
2x M.2 (PCIe 4.0 x4), 4x SATA 6Gb/s, RAID 0/1/5/10
Wi-Fi 6E, Bluetooth 5.3, 2.5Gbps LAN, USB 20Gbps Type-C
Audio Boost with Realtek ALC897 Codec, 7.1-channel, S/PDIF
HDMI 2.1, DisplayPort 1.4, 4K 60Hz support
6-layer PCB, RGB LED connectors, comprehensive cooling
mATX form factor, SKU: B760M PROJECT ZERO

In stock

Price Drop Alerts & Price History

We'll notify you the moment the price hits your target.

💡 Suggested alert: ₱12,100 [ Use this ]

Want to track and manage your alerts? Sign in or create an account.

SKU: B760M PROJECT ZERO Categories: Intel LGA 1700 Motherboards, Motherboards Tag: MSI

MSI B760M PROJECT ZERO Motherboard

The MSI B760M PROJECT ZERO motherboard delivers exceptional performance for professional and gaming applications, supporting 12th, 13th, and 14th Gen Intel Core, Pentium Gold, and Celeron processors on the LGA 1700 socket. Its mATX form factor supports up to 256GB of DDR5 memory at 7800+ MHz with overclocking, enhanced by Memory Boost and Intel XMP for superior speed and stability. The advanced power design ensures robust delivery for multi-core CPUs, ideal for demanding tasks. Two M.2 slots with PCIe 4.0 x4 and four SATA 6Gb/s ports with RAID support provide fast, flexible storage options. Connectivity is top-tier with Intel Wi-Fi 6E, Bluetooth 5.3, and 2.5Gbps LAN, complemented by USB 20Gbps Type-C and Intel Turbo USB 3.2 Gen 2 for rapid data transfer. Audio Boost with Realtek ALC897 Codec delivers immersive 7.1-channel sound with S/PDIF output, while HDMI 2.1 and DisplayPort 1.4 support 4K 60Hz displays. The PCIe 5.0 x16 slot ensures future-proof expansion, and the 6-layer PCB with 2oz thickened copper enhances durability. With comprehensive cooling, RGB lighting support, and a user-friendly BIOS, this motherboard is tailored for high-performance builds.

Specification	Details
Chipset	Intel B760
CPU Support	Intel Core 14th/13th/12th Gen, Pentium Gold, Celeron processors for LGA 1700 Socket
Memory	4x DDR5, up to 256GB, 7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(JEDEC)/5400(JEDEC)/5200(JEDEC)/5000(JEDEC)/4800(JEDEC) MHz, Dual-Channel, non-ECC, un-buffered, Intel XMP
Onboard Graphics	1x HDMI 2.1 (4K 60Hz), 1x DisplayPort 1.4 (4K 60Hz)
Expansion Slots	2x PCIe x16 (1x PCIe 5.0 x16 from CPU, 1x PCIe 4.0 x4 from Chipset), 1x PCIe 3.0 x1 (from Chipset)
Audio	Realtek ALC897 Codec, 7.1-Channel High Performance Audio, S/PDIF output
Storage	2x M.2 (1x PCIe 4.0 x4 from CPU, 1x PCIe 4.0 x4/SATA from Chipset, 2280/2260/2242), 4x SATA 6Gb/s, RAID 0/1/5/10
USB	1x USB 10Gbps Type C (Front), 2x USB 5Gbps Type A (Front), 4x USB 2.0 (Front), 1x USB 20Gbps Type C (Rear), 3x USB 10Gbps Type A (Rear), 4x USB 2.0 (Rear)
LAN	Realtek 2.5Gbps LAN
WiFi & Bluetooth	Intel Wi-Fi 6E, Bluetooth 5.3
Internal I/O	1x ATX_PWR, 2x CPU_PWR, 1x CPU Fan, 1x Pump Fan, 4x System Fan, 2x JFP, 1x JCI, 1x JAUD, 1x JDASH, 2x JARGB_V2, 2x JRGB, 1x TPM 2.0, 4x USB 2.0, 2x USB 5Gbps Type A, 1x USB 10Gbps Type C
LED Features	4x EZ Debug LED, 2x Addressable V2 RGB LED connectors, 2x RGB LED connectors

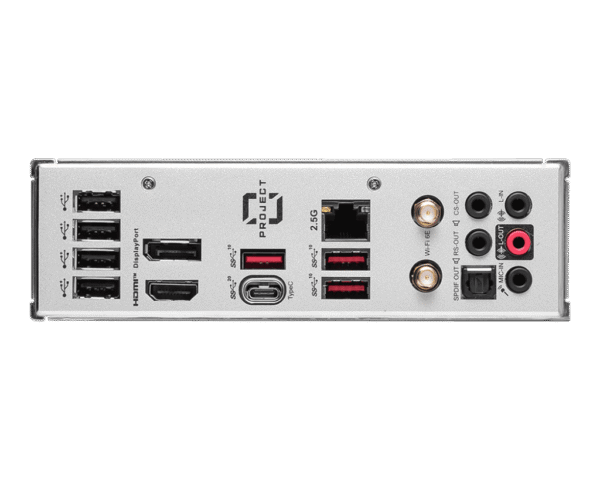

Back Panel Ports	HDMI 2.1, DisplayPort 1.4, 1x USB 20Gbps Type C, 3x USB 10Gbps Type A, 4x USB 2.0, 2.5G LAN, Wi-Fi/Bluetooth, HD Audio Connectors, Optical S/PDIF Out
Operating System	Windows 11 64-bit, Windows 10 64-bit
Form Factor	mATX, 243.84mm x 243.84mm
