MSI MPG Z790 EDGE MONSTER HUNTER EDITION Motherboard Intel Z790 LGA 1700 DDR5 7800MHz Wi-Fi 7 – MPG Z790 EDGE MONSTER HUNTER EDITION
Original price was: ₱28,100.00.₱24,500.00Current price is: ₱24,500.00.
- Supports Intel Core 14th/13th/12th Gen Processors (LGA 1700)
- DDR5 memory support up to 7800+ MHz (OC), max 256GB
- 16+1+1 Mirrored Power Arrangement with 90A SPS and Core Boost
- Extended heatsink with heat-pipe, double-sided M.2 Shield Frozr
- Wi-Fi 7, Bluetooth 5.4, and 2.5G LAN with magnetic antenna
- PCIe 5.0 and M.2 Gen 5 slots for ultra-fast storage
- Mystic Light RGB, Audio Boost 5, and Overcurrent Protection
- SKU: MPG Z790 EDGE MONSTER HUNTER EDITION
Out of stock
Restock & Price Alerts
-
Authorized
Dealer -
Nationwide
Shipping -
Store &
RMA HUB -
Expert
Support -
7-Day DOA
Protection -
Community
Trusted -
Turnstile
Protected -
reCAPTCHA
Secured -
Tested &
Verified

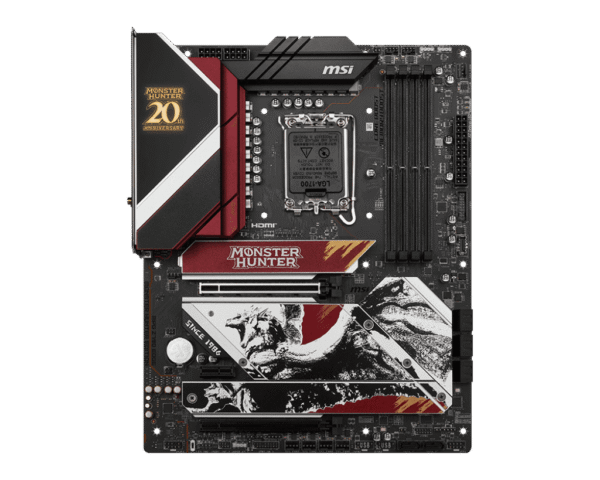

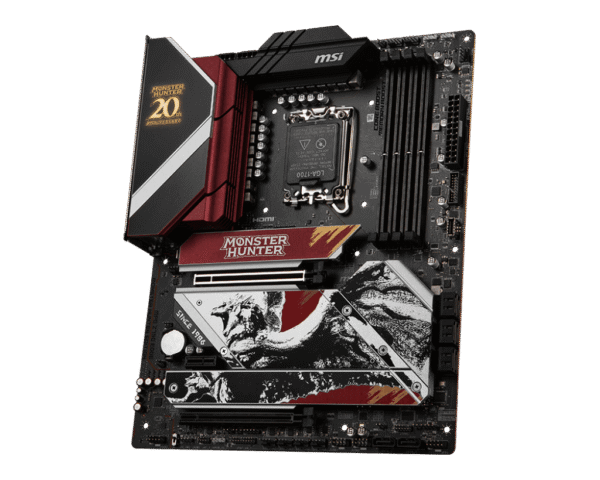

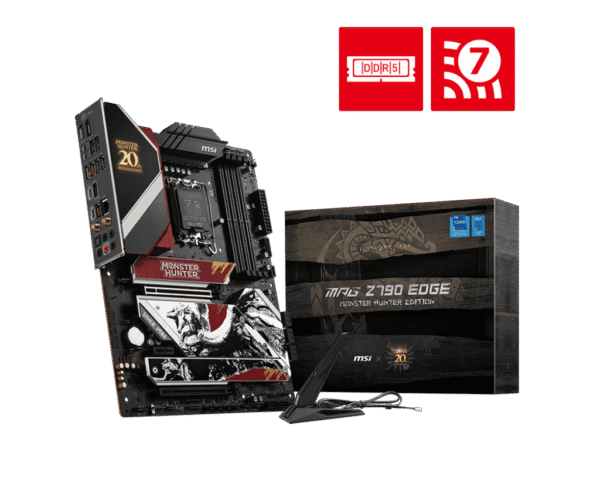

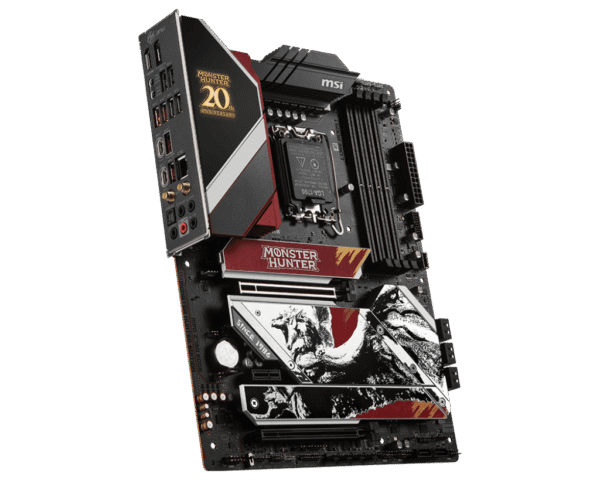

MSI MPG Z790 EDGE MONSTER HUNTER EDITION Motherboard
The MSI MPG Z790 EDGE MONSTER HUNTER EDITION motherboard blends a striking Monster Hunter-inspired design with elite performance for gamers. Supporting Intel Core 14th, 13th, and 12th Gen processors, it features a 16+1+1 Mirrored Power Arrangement with 90A SPS and Core Boost for robust power delivery. Its advanced thermal solution, including an extended heatsink with heat-pipe, double-sided M.2 Shield Frozr, and 7W/mK MOSFET thermal pads, ensures optimal cooling during intense gaming sessions. With DDR5 memory support up to 7800+ MHz (OC) and a 6-layer server-grade PCB, it delivers exceptional performance and signal integrity. Wi-Fi 7, Bluetooth 5.4, and 2.5G LAN provide ultra-fast, low-latency connectivity, complemented by a magnetic antenna for enhanced signal strength. Lightning Gen 5 PCIe and M.2 slots offer blazing-fast storage and expansion. Mystic Light RGB enhances aesthetics with vibrant customization, while Audio Boost 5 delivers studio-grade sound. Features like a pre-installed IO shield and Overcurrent Protection ensure durability and ease of use for high-performance builds.
| Specification | Details |
|---|---|
| Chipset | Intel Z790 |
| CPU Support | Intel Core 14th/13th/12th Gen Processors, Intel Pentium Gold, Celeron Processors (LGA 1700) |
| Memory | 4x DDR5 UDIMM, Max 256GB, Supports 7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(JEDEC)/5400(JEDEC)/5200(JEDEC)/5000(JEDEC)/4800(JEDEC) MHz, Dual-Controller Dual-Channel, Non-ECC, Un-buffered, Intel XMP 3.0 |
| Max Overclocking Frequency | 1DPC 1R: Up to 7800+ MHz, 1DPC 2R: Up to 6600+ MHz, 2DPC 1R: Up to 6400+ MHz, 2DPC 2R: Up to 5600+ MHz |
| Onboard Graphics | 1x HDMI 2.1 (4K 60Hz), 1x DisplayPort 1.4 (8K 60Hz) *Available only on processors with integrated graphics |
| Expansion Slots | 2x PCIe x16 (1x PCIe 5.0 x16/x8 from CPU, 1x PCIe 4.0 x4 from Chipset), 1x PCIe 3.0 x1 |
| Audio | Realtek ALC4080 Codec, 7.1-Channel USB High Performance Audio, Up to 32-Bit/384 kHz playback on front panel, Optical S/PDIF Out |
| Storage | 5x M.2 (1x PCIe 5.0 x4, 3x PCIe 4.0 x4, 1x PCIe 4.0 x4/SATA, supports 22110/2280/2260/2242), 8x SATA 6Gbps |
| RAID | Supports RAID 0, 1, 5, 10 for SATA (except SATA_A1_A2) and M.2 NVMe storage devices |
| USB | 4x USB 2.0 (Front), 4x USB 5Gbps Type-A (Rear), 2x USB 5Gbps Type-A (Front), 4x USB 10Gbps Type-A (Rear), 1x USB 10Gbps Type-C (Rear), 1x USB 10Gbps Type-C (Front), 1x USB 20Gbps Type-C (Rear) |
| LAN | Intel 2.5Gbps LAN |
| Wireless & Bluetooth | Wi-Fi 7 (2.4GHz/5GHz/6GHz up to 5.8Gbps, 802.11 a/b/g/n/ac/ax, MLO, 4KQAM), Bluetooth 5.4 |
| Internal I/O | 1x ATX_PWR, 2x CPU_PWR, 1x CPU Fan, 1x Pump Fan, 6x System Fan, 1x EZ Conn-header (JAF_1), 2x Front Panel, 1x Chassis Intrusion, 1x Front Audio, 1x Tuning Controller, 3x Addressable V2 RGB LED, 1x RGB LED, 1x TPM, 1x USB4 card connector (JTBT_U4_1, supports RTD3), 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-C |
| LED Features | 4x EZ Debug LED, 1x EZ LED Control switch |
| Back Panel Ports | DisplayPort, HDMI, 4x USB 5Gbps Type-A, 4x USB 10Gbps Type-A, 1x USB 10Gbps Type-C, 1x USB 20Gbps Type-C, 2.5G LAN, Wi-Fi/Bluetooth, Audio Connectors, Optical S/PDIF Out, Clear CMOS Button, Flash BIOS Button |
| Operating System | Windows 11 64-bit, Windows 10 64-bit |
| Form Factor | ATX (243.84mm x 304.8mm) |
| Packaging Weight | 2 kg |
|---|---|
| Packaging Dimensions (L×W×H) | 31 × 25 × 6 cm |
| Brand | MSI |
| Desktop RAM | DDR5 |
| Socket | LGA 1700 CPU |
