₱17,000.00Original price was: ₱17,000.00.₱14,495.00Current price is: ₱14,495.00.
Supports AMD Ryzen 9000, 8000, 7000 series processors on AM5 socket
4 x DDR5 DIMM slots, up to 7200+(OC), max 256GB, with XMP/EXPO support
PCIe 5.0 x16 slot and Gen5x4 M.2 for top-tier GPU and SSD performance
WiFi 6E and 2.5G LAN for fast, reliable networking
14+2+1 power phase with 80A Dr.MOS and 20K capacitors for robust overclocking
Realtek ALC4082 7.1 CH audio with Nahimic for premium sound quality
BIOS Flashback, Auto Driver Installer, and Polychrome SYNC for ease and style
In stock
ℹ️
For walk-in customers: please always INQUIRE FIRST before visiting as not all items are displayed in our physical store. As an online-first store, most of our inventory is held in our online warehouse and is transferred to the store upon request.

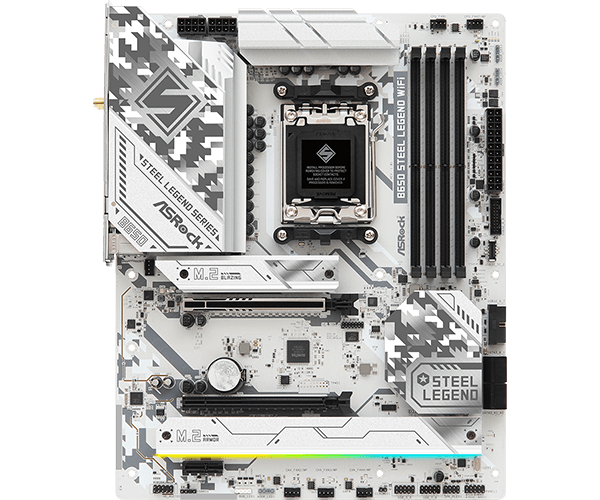

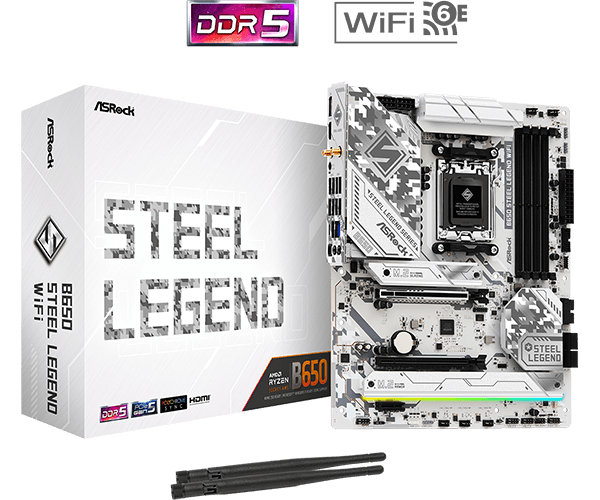

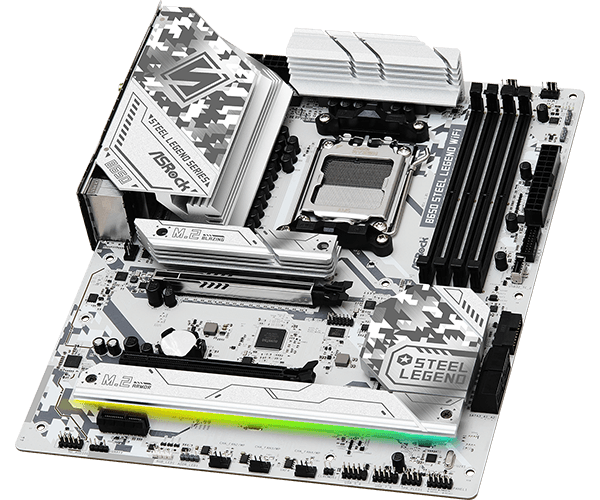

The ASRock B650 Steel Legend WiFi ATX motherboard delivers premium performance for AMD Ryzen 9000, 8000, and 7000 series processors, built on the AMD B650 chipset. Its robust 14+2+1 power phase design with 80A Dr.MOS and 20K long-lasting capacitors ensures exceptional stability for overclocking, enhanced by enlarged heatsinks. Supporting up to 256GB of DDR5 memory at 7200+(OC) speeds across four DIMM slots, it excels in gaming and multitasking workloads. The PCIe 5.0 x16 slot and Blazing M.2 (Gen5x4) provide cutting-edge speeds for GPUs and SSDs, while WiFi 6E and 2.5G LAN offer low-latency connectivity for gaming and streaming. The Realtek ALC4082 audio codec with Nahimic delivers immersive 7.1 CH sound, ideal for content creators. Features like BIOS Flashback, Auto Driver Installer, and Polychrome SYNC RGB lighting enhance usability and aesthetics. With a comprehensive USB setup, including USB 3.2 Gen2x2 Type-C, and AMD CrossFire support, this motherboard is a versatile, high-value choice for enthusiasts.
Specification
Details
Model
B650 Steel Legend WiFi
SKU
B650-STEEL-LEGEND-WIFI
CPU
Supports AMD Socket AM5 Ryzen 9000, 8000, 7000 Series Processors
Chipset
AMD B650
Memory
4 x DDR5 DIMM Slots, Dual Channel, up to 7200+(OC), Max 256GB, Supports Intel XMP 3.0, AMD EXPO
Dragon RTL8125BG 2.5 Gigabit LAN (10/100/1000/2500 Mb/s), Dragon 2.5G LAN Software
Wireless LAN
802.11axe Wi-Fi 6E, Dual-Band 2x2, Bluetooth 5.2, MU-MIMO, 6GHz band (Windows 11 only)
Slots
1 x PCIe 5.0 x16 (PCIE1, x16 mode), 1 x PCIe 3.0 x16 (PCIE2, x4 mode), 1 x PCIe 4.0 x1 (PCIE3), 1 x M.2 Key E (type 2230 WiFi/BT), Supports AMD CrossFire
Storage
1 x Blazing M.2 (PCIe Gen5x4, 128 Gb/s, 2260/2280), 1 x Hyper M.2 (PCIe Gen4x4, 64 Gb/s, 2260/2280), 1 x M.2 (PCIe Gen4x4, 64 Gb/s, 2230/2260/2280), 4 x SATA3 6.0 Gb/s, Supports RAID 0/1 (SATA), RAID 0/1/10 (M.2 NVMe)
USB
Rear: 1 x USB 3.2 Gen2x2 Type-C (20 Gb/s), 1 x USB 3.2 Gen2 Type-A (10 Gb/s), 4 x USB 3.2 Gen1 Type-A, 4 x USB 2.0; Front: 1 x USB 3.2 Gen1 Type-C, 4 x USB 3.2 Gen1 Type-A, 4 x USB 2.0
Connector
1 x SPI TPM Header, 1 x Power LED/Speaker Header, 1 x RGB LED Header, 3 x Addressable LED Headers, 1 x CPU Fan (4-pin), 1 x CPU/Water Pump Fan (4-pin), 4 x Chassis/Water Pump Fan (4-pin), 1 x 24-pin ATX, 2 x 8-pin 12V, 1 x Front Panel Audio, 2 x USB 2.0 Headers, 2 x USB 3.2 Gen1 Headers, 1 x USB 3.2 Gen1 Type-C Header
Rear Panel I/O
2 x Antenna Ports, 1 x HDMI, 1 x DisplayPort 1.4, 1 x Optical SPDIF Out, 1 x USB 3.2 Gen2x2 Type-C, 1 x USB 3.2 Gen2 Type-A, 4 x USB 3.2 Gen1, 4 x USB 2.0, 1 x RJ-45 LAN, 1 x BIOS Flashback Button, 1 x Line Out, 1 x Microphone Input
Form Factor
ATX, 12.0 x 9.6 in (30.5 x 24.4 cm), 8 Layer PCB
OS
Windows 10 64-bit, Windows 11 64-bit
Certifications
FCC, CE, ErP/EuP ready
Accessories
1 x User Manual, 2 x SATA Data Cables, 2 x WiFi 2.4/5/6 GHz Antennas, 3 x Screws for M.2 Sockets, 1 x Standoff for M.2 Socket
Weight
2 kg
Dimensions
40 × 30 × 5 cm
Brand
ASROCK
Socket
AM5 CPU
Desktop RAM
DDR5
