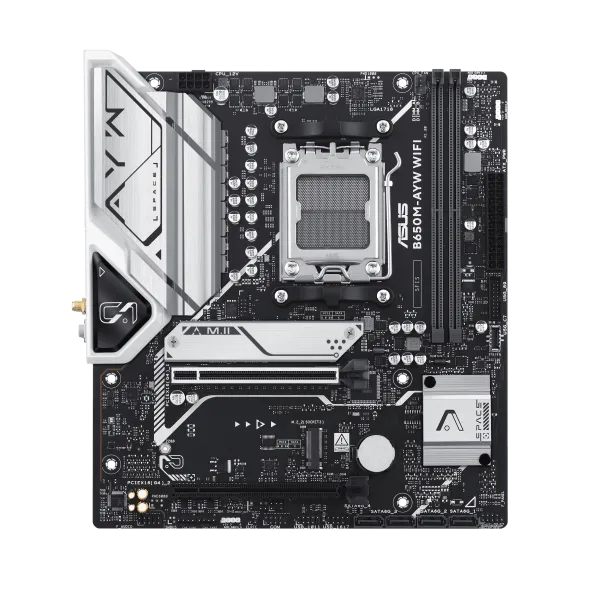

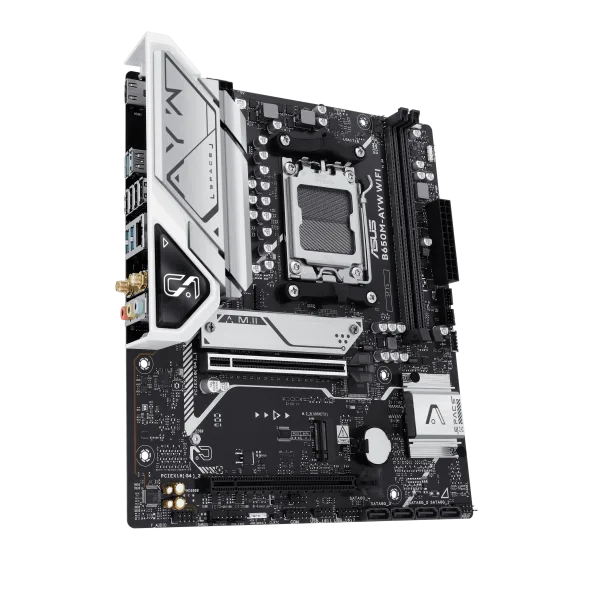

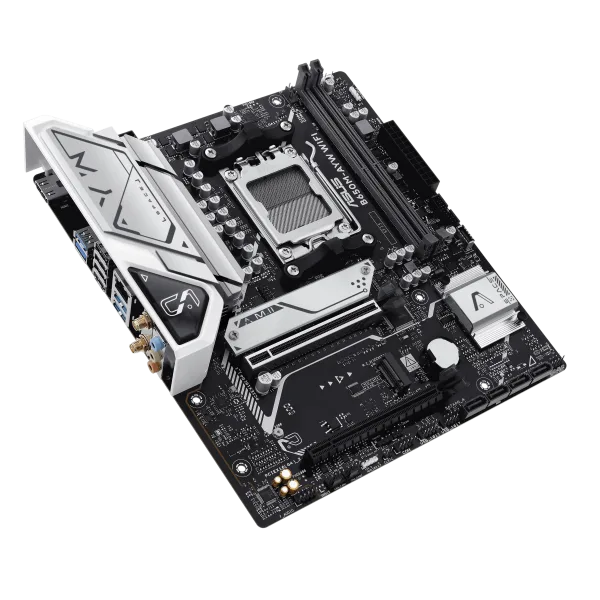

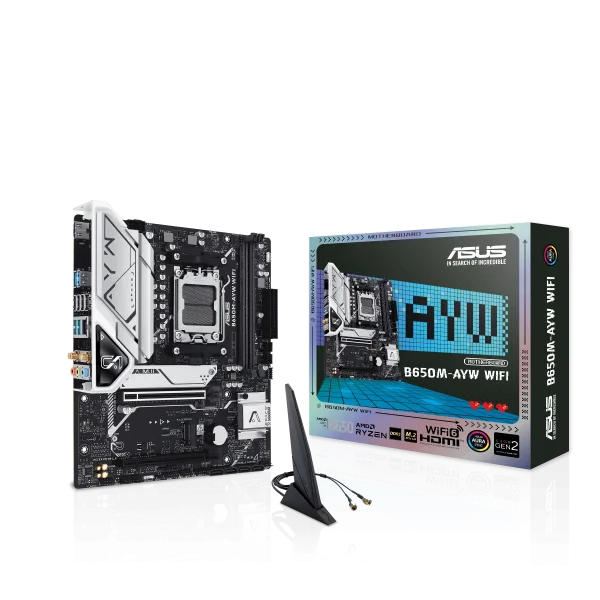

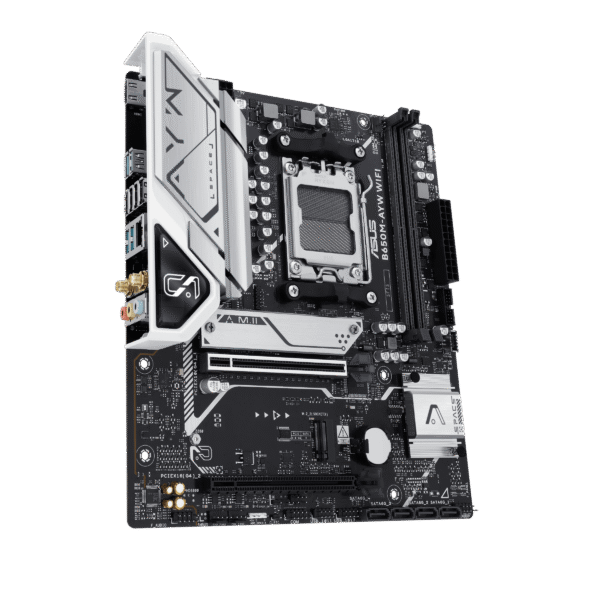

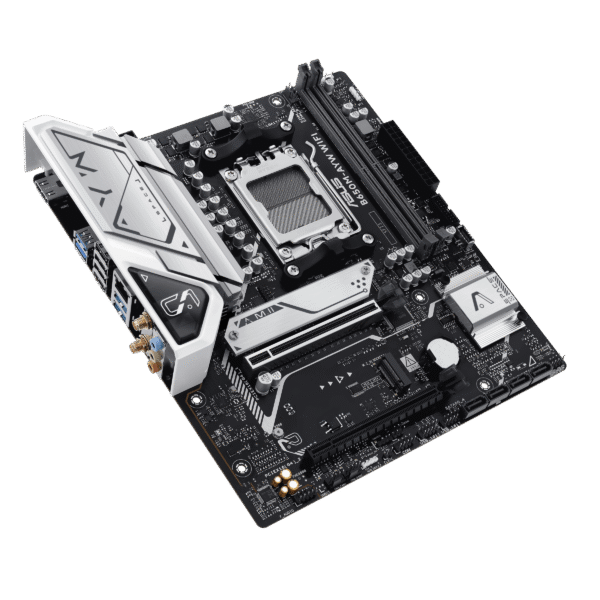

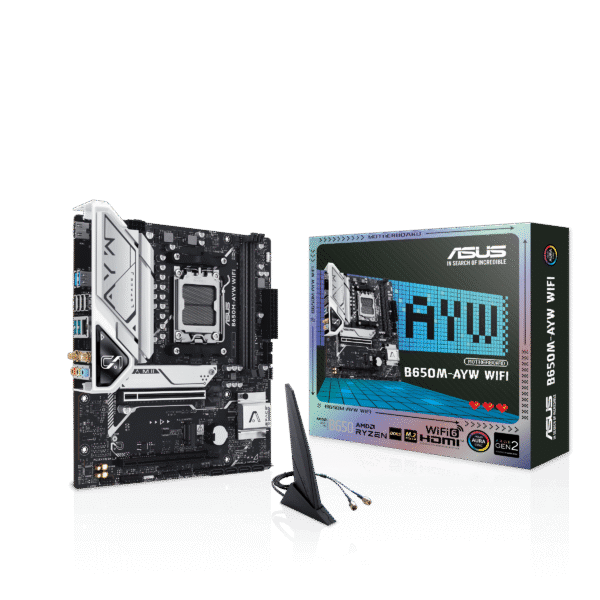

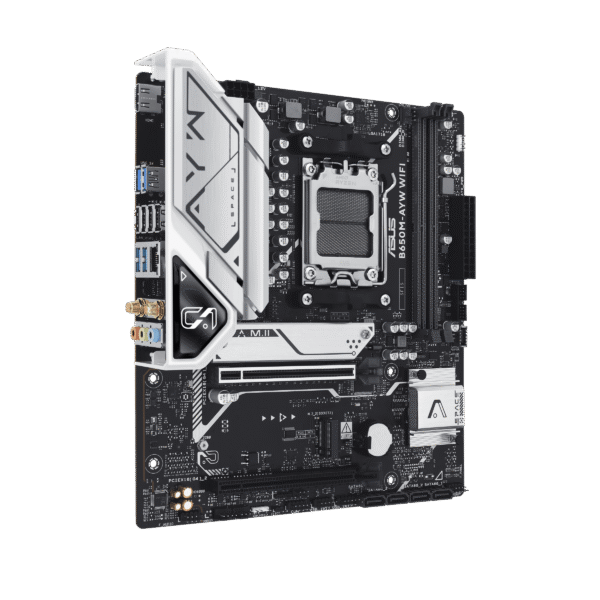

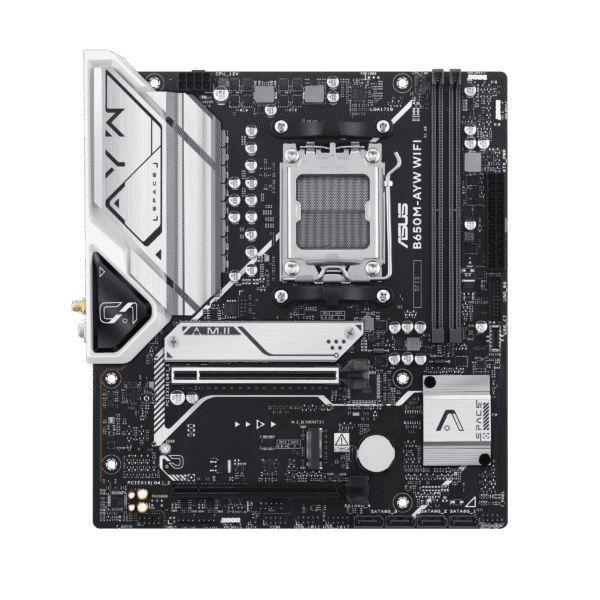

ASUS B650M-AYW WiFi AM5 Micro-ATX Motherboard with AMD B650 Chipset, DDR5 8000+(OC), PCIe 5.0 M.2, Wi-Fi 6, USB 10Gbps, Aura Sync – B650M-AYW WIFI
₱8,600.00Original price was: ₱8,600.00.₱7,495.00Current price is: ₱7,495.00.
AMD B650 chipset with AM5 socket for Ryzen 9000/8000/7000 CPUs
2 x DDR5 DIMM slots, up to 96GB, 8000+(OC), EXPO, OptiMem II
2 x M.2 slots (1 x PCIe 5.0, 1 x PCIe 4.0), 4 x SATA 6Gb/s, RAID 0/1/10
Wi-Fi 6, Bluetooth v5.3, 2.5Gb Ethernet, USB 10Gbps Type-A
Realtek 7.1 audio with premium capacitors, up to 24-Bit/192kHz
PCIe 4.0 x16 slot, ASUS 5X PROTECTION III, Aura Sync RGB
Two-Way AI Noise Cancellation, M.2 Q-Latch, Q-LED Core
In stock
ℹ️
For walk-in customers: please always INQUIRE FIRST before visiting as not all items are displayed in our physical store. As an online-first store, most of our inventory is held in our online warehouse and is transferred to the store upon request.
ASUS B650M-AYW WiFi AM5 Micro-ATX Motherboard with AMD B650 Chipset, DDR5 8000+(OC), PCIe 5.0 M.2, Wi-Fi 6, USB 10Gbps, Aura Sync - B650M-AYW WIFI
Price Drop Alerts & Price History
⚠️ That's a steep drop! You might be waiting a while.
We'll notify you the moment the price hits your target.
Create a compact and efficient PC with the ASUS B650M-AYW WiFi, a Micro-ATX motherboard tailored for AMD Ryzen 9000, 8000, and 7000 Series processors on the AM5 socket. Featuring the AMD B650 chipset, it supports up to 96GB of DDR5 memory with speeds up to 8000+(OC) via EXPO and OptiMem II, perfect for budget gaming and productivity. Two M.2 slots (one PCIe 5.0 x4, one PCIe 4.0 x4) and four SATA 6Gb/s ports with RAID 0/1/10 offer versatile storage. Connectivity includes Wi-Fi 6, Bluetooth v5.3, Realtek 2.5Gb Ethernet, and eight rear USB ports, including two USB 10Gbps Type-A. Realtek 7.1 surround sound with premium capacitors delivers clear audio up to 24-Bit/192kHz. The PCIe 4.0 x16 slot supports GPUs like the ASUS Dual Radeon RX 7600 EVO. ASUS 5X PROTECTION III, Q-Design (M.2 Q-Latch, Q-Slot), and Aura Sync RGB lighting ensure durability, ease of use, and style, making this board ideal for small-form-factor AM5 builds. Learn more.
Specification
Details
Model
B650M-AYW WIFI
CPU
AMD Socket AM5 for Ryzen™ 9000, 8000, 7000 Series Desktop Processors
Chipset
AMD B650
Memory
2 x DIMM, max. 96GB, DDR5 up to 8000+(OC), ECC/Non-ECC, Dual Channel, EXPO™, OptiMem II
Graphics
1 x HDMI 2.1 (4K@60Hz)
Expansion Slots
1 x PCIe 4.0 x16 (x16, Ryzen 9000/7000; x8/x4, Ryzen 8000), 1 x PCIe 4.0 x16 (x4)
Storage
2 x M.2 (1 x PCIe 5.0 x4, 1 x PCIe 4.0 x4), 4 x SATA 6Gb/s, RAID 0/1/10
Ethernet
1 x Realtek 2.5Gb Ethernet
Wireless & Bluetooth
Wi-Fi 6 (802.11 a/b/g/n/ac/ax, 2.4/5GHz), Bluetooth v5.3
USB Type-C
Rear: 2 x USB 10Gbps Type-A, 2 x USB 5Gbps Type-A, 4 x USB 2.0 Type-A
Front: 1 x USB 5Gbps Type-C, 2 x USB 5Gbps, 4 x USB 2.0
Audio
Realtek 7.1 Surround Sound, up to 24-Bit/192kHz, Audio Shielding, Premium Capacitors

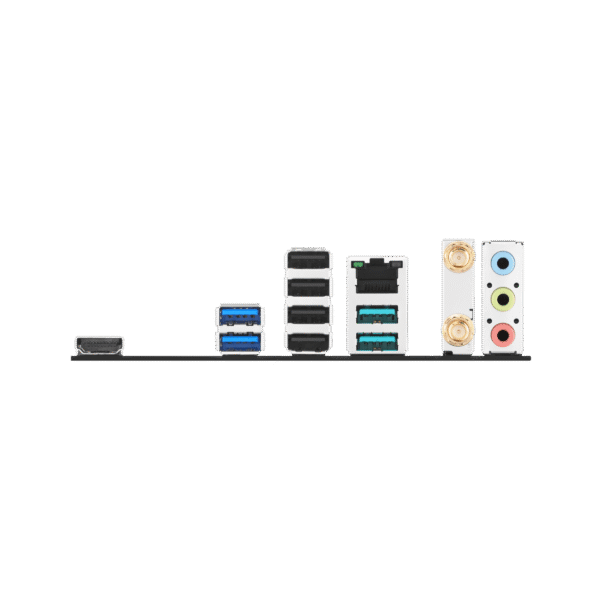

Back Panel I/O Ports

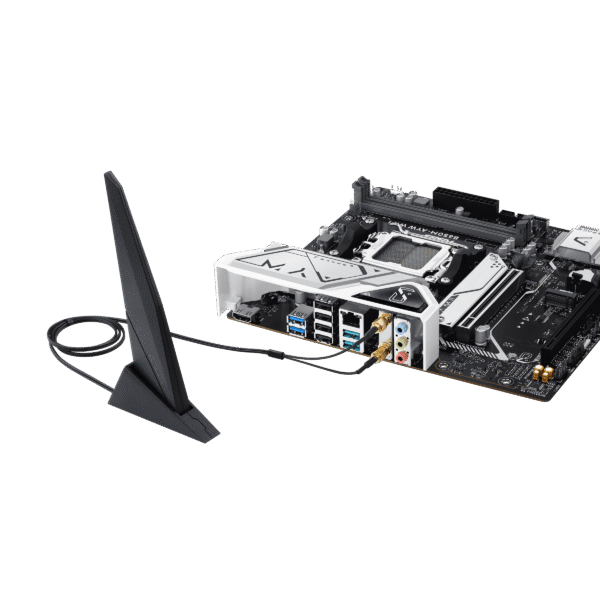

2 x USB 10Gbps Type-A, 2 x USB 5Gbps Type-A, 4 x USB 2.0 Type-A, 1 x HDMI, Wi-Fi Module, 1 x 2.5Gb Ethernet, 3 x Audio jacks
Internal I/O Connectors
1 x CPU Fan, 2 x Chassis Fan, 1 x 24-pin Power, 1 x 8-pin +12V, 2 x M.2, 4 x SATA, USB headers, 3 x Addressable Gen 2, others
Special Features
ASUS 5X PROTECTION III, ASUS Q-Design, ASUS Thermal Solution, Aura Sync
Software Features
Armoury Crate, AI Suite 3, ASUS CPU-Z, Two-Way AI Noise Cancellation, more
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Accessories

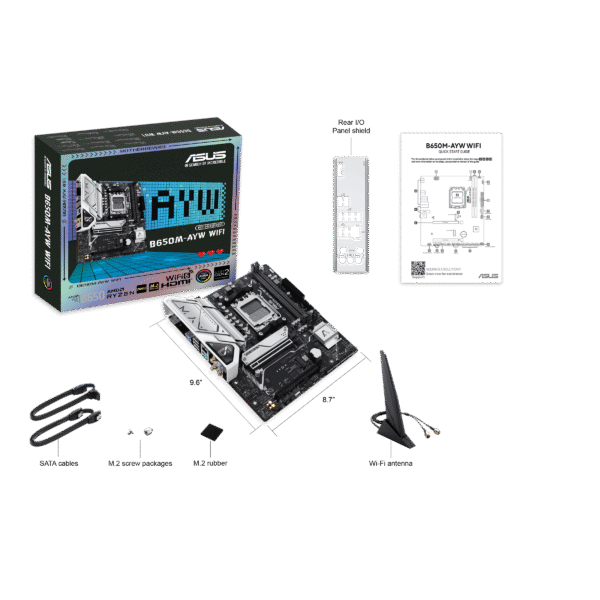

2 x SATA 6Gb/s cables, ASUS Wi-Fi antenna, I/O Shield, M.2 Rubber Package, M.2 SSD screw package, Quick start guide
Operating System
Windows 11, Windows 10 64-bit
Form Factor
Micro-ATX, 9.6 x 8.7 inch (24.4 x 22.1 cm)
Packaging Weight
1.7 kg
Packaging Dimensions (L×W×H)
31 × 29 × 8 cm
Brand
Asus
Desktop RAM
DDR5
Socket
AM5 CPU
