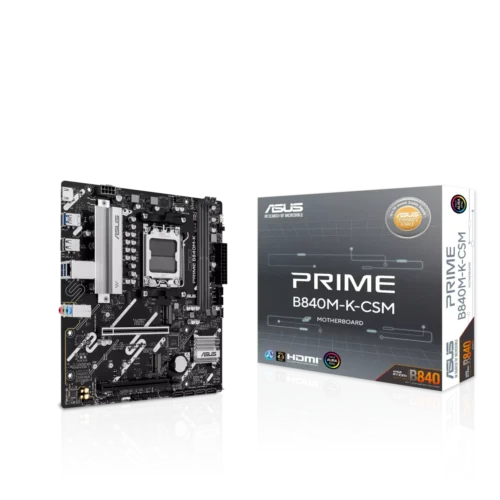

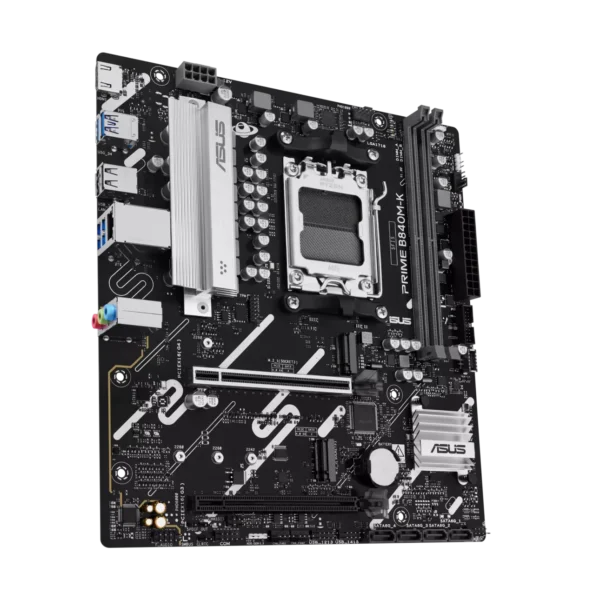

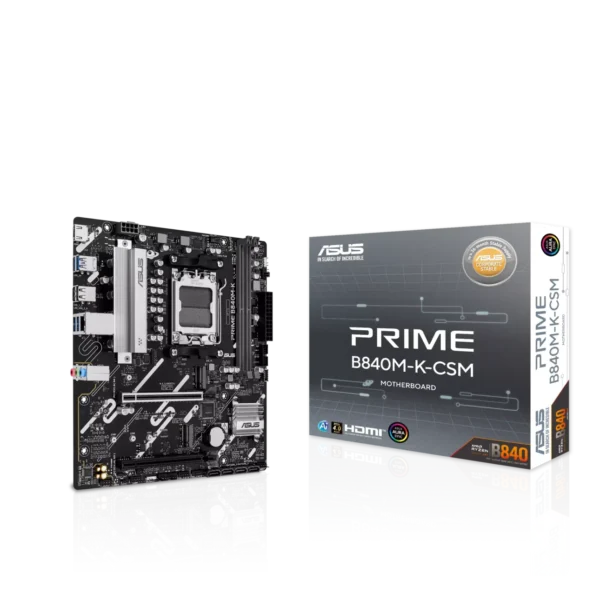

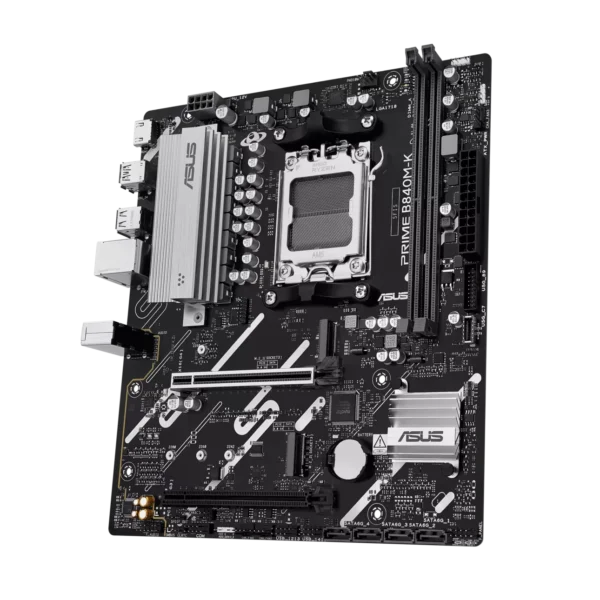

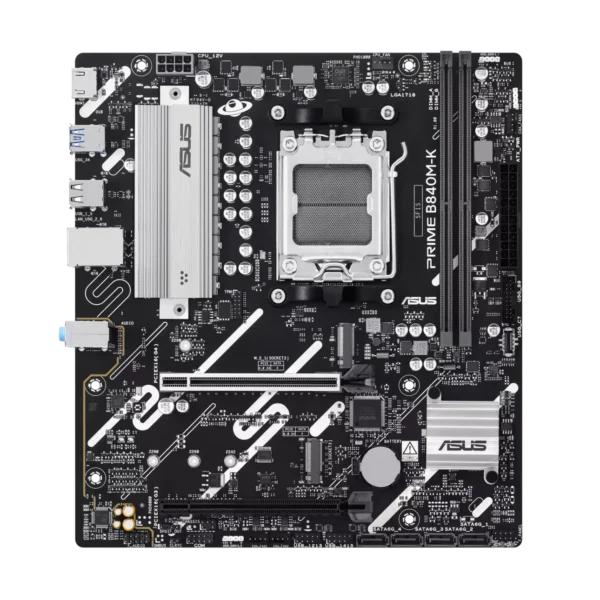

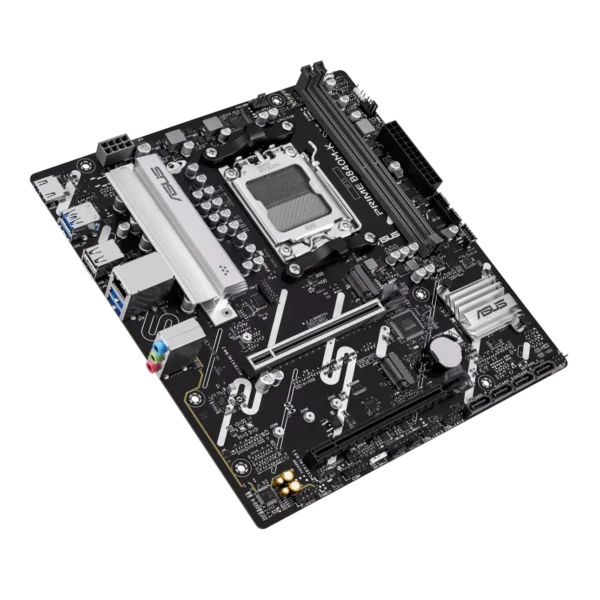

ASUS Micro-ATX AMD B840 DDR5 AM5 Motherboard with PCIe 4.0 & 2.5Gb Ethernet – PRIME B840M-K-CSM

Next-Generation Performance and Architecture

Expertly engineered for high-performance builds, the ASUS PRIME B840M-K-CSM motherboard is built to unleash the ultimate power of AMD’s most advanced processors. By leveraging the latest AM5 Socket, this micro-ATX platform natively supports the cutting-edge AMD Ryzen™ 9000, 8000, and 7000 Series Desktop Processors up to 170W TDP. This ensures that PC DIY builders and system integrators can deploy extreme processing power suitable for intense gaming, advanced content creation, and heavy multitasking environments. As part of ASUS’s renowned Prime lineup, this board combines a reliable foundation with sophisticated power management and intelligent software to adapt seamlessly to modern computing demands.

At the core of its architecture sits the AMD B840 chipset, designed specifically to bring next-level data throughput and robust component scaling to the micro-ATX form factor. Built into this high-performance framework is an 8+2+1 phase digital power design that relies on discrete MOSFETs to handle Vcore, SOC, and miscellaneous power delivery. This precise Digi+ VRM control guarantees real-time voltage regulation, reducing energy loss and ensuring clean, stable power directly to your processor. Enhanced by a six-layer PCB design that mitigates heat concentration, this motherboard is heavily reinforced to maintain stable operations and support robust overclocking parameters for users who push their system capabilities to the absolute limit.

Advanced AI Integration and Business Solutions

Future-proofing takes center stage with the Advanced AI PC-ready infrastructure built directly into the PRIME B840M-K-CSM. The ASUS AI Solutions suite transforms standard workflows by introducing AI Cache Boost, an exclusive tool designed to supercharge Large Language Model (LLM) processing. By optimizing the CPU cache and memory pathways on compatible Ryzen 9000 Series processors, AI Cache Boost delivers up to 29% faster local LLM execution. Complementing this is the innovative ASUS AI Advisor, a natural language interface that acts as your personal technical expert, allowing users to effortlessly explore, understand, and tweak advanced motherboard functionalities without deciphering complicated jargon.

Crucial for commercial deployment and network administration, this motherboard is proudly part of the ASUS Corporate Stable Model (CSM) program. Designed to protect commercial investments, the CSM initiative guarantees up to a 36-month product lifecycle and provides a full 6-month end-of-life notice, granting enterprise organizations the lead time necessary to seamlessly manage hardware transitions. Moreover, the motherboard includes an activation key for ASUS Control Center Express, a server-grade, integrated IT monitoring software. This suite dramatically simplifies endpoint management by automating maintenance tasks, scheduling off-peak BIOS updates, securely regulating portable storage access, and providing comprehensive remote inventory tracking for system administrators across multiple branch locations.

DDR5 Memory Optimization and High-Speed Storage

Pushing the boundaries of system responsiveness, this motherboard houses two DIMM slots supporting a massive maximum capacity of 128GB of next-generation DDR5 memory via a dual-channel architecture. For enthusiasts aiming for absolute peak performance, it is engineered to easily handle overclocked speeds reaching beyond 8000 MT/s on compatible Ryzen processors. Achieving these speeds is streamlined through comprehensive support for AMD Extended Profiles for Overclocking (EXPO™). For non-EXPO memory kits, ASUS integrates its exclusive Enhanced Memory Profile (AEMP) technology, which intelligently detects internal memory chips and instantly applies optimized speed and latency profiles, allowing entry-level modules to exceed stock limitations.

Storage flexibility is maximized through the integration of two high-speed M.2 2280 slots, taking full advantage of the PCIe 4.0 interface to push massive data transfer speeds up to an astounding 64 Gbps. By bypassing traditional SATA bottlenecks, this guarantees significantly faster operating system boot times, accelerated application loading, and fluid file transfers for large-scale media projects or immense game installations. For legacy drive support or expanded storage pools, four standard SATA 6Gb/s ports are included. Furthermore, sophisticated storage deployments are empowered by AMD RAIDXpert2 Technology, enabling comprehensive RAID 0, 1, 5, and 10 arrays directly from the motherboard firmware to protect data integrity and optimize drive read/write performance.

Comprehensive Cooling Solutions

Sustaining high-end performance requires meticulous thermal management. The PRIME B840M-K-CSM combats system throttling with an array of strategically placed physical heatsinks. An expansive VRM heatsink combined with a high-quality thermal pad efficiently pulls thermal energy away from the critical power delivery stages. Additionally, a dedicated passive chipset heatsink maintains operational stability for the motherboard’s core logic component during intensive workloads. By preventing heat saturation, these components ensure that rigorous operations, ranging from heavy data rendering to marathon gaming sessions, proceed without a hitch.

Moving beyond physical components, the motherboard offers deeply customizable fan configurations utilizing multiple temperature sources and hybrid headers. Through the intuitive ASUS Fan Xpert 2+ software suite—accessible directly from the operating system or the UEFI BIOS—users gain granular control over cooling curves. The automated Auto-Tuning mode calibrates optimal fan profiles with a single click, taking the guesswork out of thermal setup. Conversely, the Extreme Quiet mode can lower chassis fan speeds underneath the default minimum thresholds during light computing tasks, creating an exceptionally silent operating environment perfect for focused office work or media consumption.

Connectivity, Expansion, and Audio Excellence

When it comes to hardware expansion, the primary PCIe 4.0 x16 slot is engineered to securely house massive modern graphics cards. To ensure longevity and structural integrity, ASUS implements SafeSlot Core+, a fortified one-piece stainless-steel shield that surrounds the slot, anchored tightly to the motherboard PCB with reinforced solder points. This drastically reduces the risk of physical damage from heavy aftermarket GPUs. Below it, an additional PCIe 3.0 x16 slot, operating at x4 mode, provides generous space for secondary expansion cards like video capture devices or dedicated sound cards.

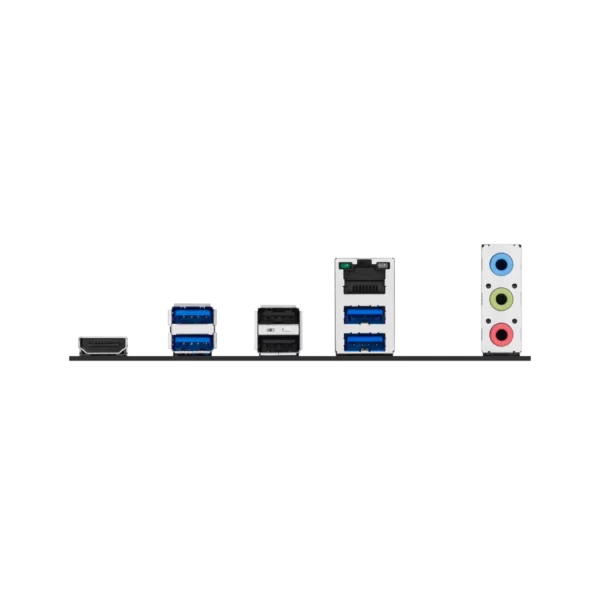

Bandwidth-heavy networking is handled by an onboard Realtek 2.5Gb Ethernet port fortified by ASUS LANGuard technology. This configuration significantly reduces CPU networking overhead while providing exceptional TCP and UDP throughput, assuring lag-free online gaming, smooth high-definition video streaming, and expedited large-scale intranet file transfers. Expanding the peripheral ecosystem is made effortless with a total of thirteen supported USB ports, highlighted by a front-panel USB 5Gbps Type-C connector boasting up to 5V/3A of power delivery output, and four additional high-speed USB 5Gbps Type-A ports located on the rear I/O panel. Visual connectivity natively leverages APU graphics via a modern HDMI port supporting pristine 4K resolution at a fluid 60Hz refresh rate.

Audio immersion is achieved via the integrated Realtek 7.1 Surround Sound High Definition Audio CODEC. It features multi-streaming support, automatic jack-detection, and playback capabilities up to 24-Bit/192 kHz. The sound quality is physically insulated on the motherboard using specialized audio shielding and dedicated audio PCB layers to isolate sensitive analog signals from digital interference, while premium audio capacitors supply a warm, natural sound profile right out of the box.

Customization, Build Tools, and Software Suite

Customizing the aesthetics of your system is seamless thanks to three built-in Addressable RGB Gen 2 headers. These intelligent connectors are capable of auto-detecting the LED count on connected hardware, dynamically scaling lighting effects for perfect synchronization via the ASUS Aura Sync ecosystem. Builders will also appreciate the integration of ASUS Q-Design components, including Q-LED indicators arrayed for the CPU, DRAM, VGA, and Boot Devices. These brilliantly colored lights act as a rapid diagnostic tool, instantly highlighting hardware faults during the initial POST phase, massively reducing the time and effort required to troubleshoot a new system build.

System configuration is anchored by the user-friendly UEFI BIOS that includes CrashFree BIOS 3 for safe firmware recovery and EZ Flash 3 for painless updates. On the software front, users benefit from the comprehensive Armoury Crate utility, allowing centralized control over Aura lighting and Fan Xpert parameters. Maintenance is simplified through ASUS DriverHub, which automates necessary software installations and updates to maintain peak stability. Lastly, the board ships out of the box with premium utility trials, offering new users immediate access to 60 days of Norton 360 Deluxe antivirus protection and a 40-day free trial of WinRAR software, rounding out an incredibly robust, feature-rich micro-ATX platform.
