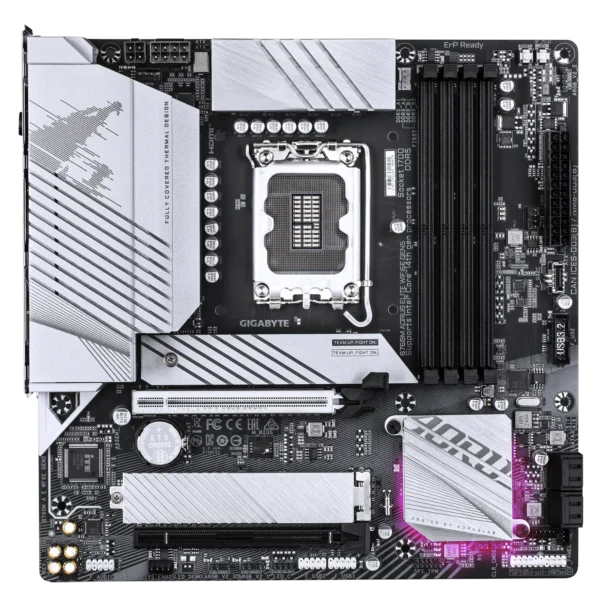

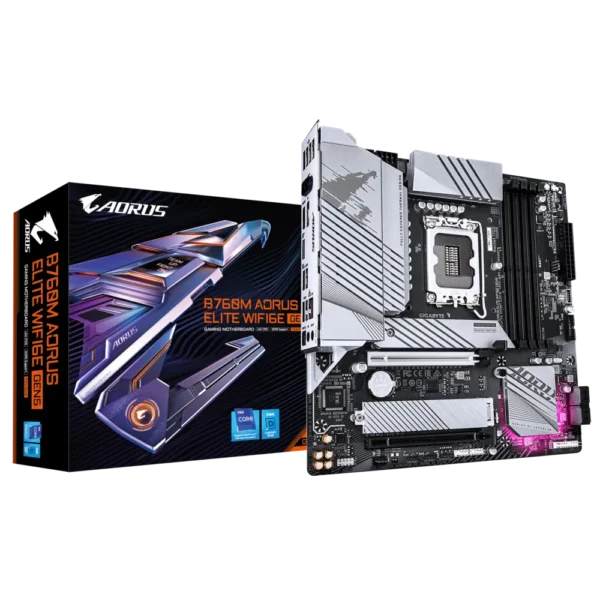

GIGABYTE B760M A E WIFI 6E GEN5 Micro-ATX Intel B760 LGA1700 DDR5 PCIe 5.0 Motherboard - GA-B760M-A-E-WF6E-GEN5
Price Drop Alerts & Price History
⚠️ That's a steep drop! You might be waiting a while.
We'll notify you the moment the price hits your target.
Build a compact, value-driven gaming PC with the GIGABYTE GA-B760M-A-E-WF6E-GEN5, a Micro-ATX motherboard optimized for Intel® 14th, 13th, and 12th Gen Core™ processors. Featuring the Intel B760 chipset, it supports up to 256GB of DDR5 memory at speeds up to 5600MT/s, delivering solid performance. The PCIe 5.0 x16 slot supports high-end GPUs, while two M.2 slots (PCIe 4.0) offer fast storage up to 64Gbps. A 6+2+1 phase VRM ensures stable power for CPUs like the Intel Core i5-13400F. Advanced cooling with M.2 Thermal Guard and VRM heatsinks keeps your system cool. Wi-Fi 6E and USB 3.2 Gen 2×2 Type-C provide fast connectivity. Q-Flash Plus simplifies BIOS updates, and RGB Fusion 2.0 adds customizable aesthetics. Ideal for budget-friendly, compact Intel builds.
Specification
Details
Model
GIGABYTE GA-B760M-A-E-WF6E-GEN5
CPU
LGA1700: Intel® 14th/13th/12th Gen Core™, Pentium® Gold, Celeron® Processors
Chipset
Intel® B760 Express Chipset
Memory
4 x DDR5 DIMM, up to 256GB, 5600/5200/4800/4400 MT/s (Core i9/i7), 4800/4400 MT/s (others), ECC/Non-ECC Un-buffered, Dual Channel, XMP
Onboard Graphics
1 x HDMI (4096x2160@60Hz, HDMI 2.1, HDCP 2.3), 1 x DisplayPort (4096x2304@60Hz, DP 1.2, HDCP 2.3)
Expansion Slots
CPU: 1 x PCIe 5.0 x16 (PCIEX16); Chipset: 1 x PCIe 4.0 x16 (x4 mode, PCIEX4)
Storage
CPU: 1 x M.2 (2280, PCIe 4.0 x4/x2, M2A_CPU); Chipset: 1 x M.2 (22110/2280, PCIe 4.0 x4/x2, M2P_SB); 4 x SATA 6Gb/s; RAID 0/1/5/10 (SATA)
Audio
Realtek Audio CODEC, 7.1-channel, S/PDIF Out
LAN
Realtek 2.5GbE (2.5 Gbps/1 Gbps/100 Mbps)
Wireless
Wi-Fi 6E (Intel AX210, 2.4/5/6GHz, 11ax 160MHz), Bluetooth 5.3
USB
Rear: 1 x USB 3.2 Gen 2x2 Type-C, 1 x USB 3.2 Gen 2 Type-A, 3 x USB 3.2 Gen 1, 4 x USB 2.0; Front: 1 x USB 3.2 Gen 2 Type-C, 1 x USB 3.2 Gen 1 header (2 ports), 2 x USB 2.0 headers (4 ports)
Internal I/O Connectors
1 x 24-pin ATX, 1 x 8-pin 12V, 1 x 4-pin 12V, 1 x CPU Fan, 3 x System Fan, 3 x ARGB Gen2, 1 x RGB, 2 x M.2, 4 x SATA 6Gb/s, 1 x Front Panel, 1 x Front Panel Audio, 1 x USB 3.2 Gen 2 Type-C, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers, 2 x Thunderbolt Add-in, 1 x TPM, 1 x Q-Flash Plus Button, 1 x Reset Button, 1 x Reset Jumper, 1 x Clear CMOS Jumper

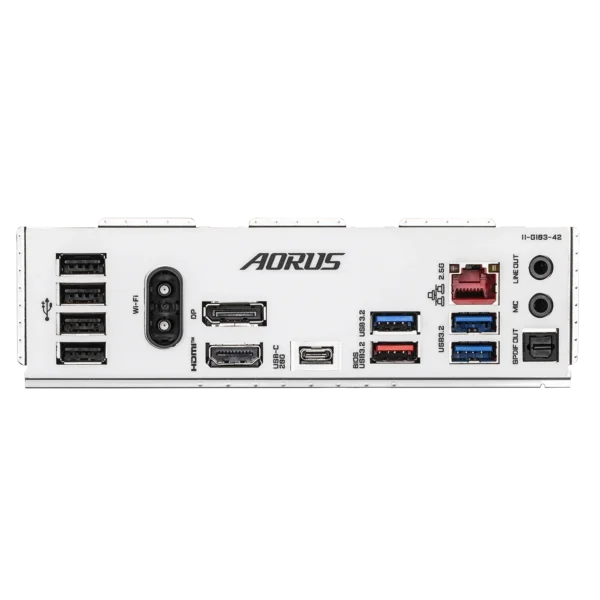

Back Panel Connectors
2 x Antenna, 1 x USB 3.2 Gen 2x2 Type-C, 1 x USB 3.2 Gen 2 Type-A, 3 x USB 3.2 Gen 1, 4 x USB 2.0, 1 x HDMI, 1 x DisplayPort, 1 x RJ-45, 1 x S/PDIF Out, 2 x Audio Jacks
I/O Controller
iTE I/O Controller Chip
H/W Monitoring
Voltage, Temperature, Fan Speed, Water Cooling Flow Rate, Fan Fail Warning, Fan Speed Control
BIOS
256 Mbit AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
GIGABYTE Control Center, Q-Flash, Q-Flash Plus
Bundled Software
Norton Internet Security (OEM), LAN Bandwidth Management
Operating System
Windows 11 64-bit, Windows 10 64-bit
Form Factor
Micro-ATX, 24.4 x 24.4 cm
Notes
Wi-Fi 6E requires Windows 11 for 6GHz; Check CPU/Memory support at www.gigabyte.com
Packaging Weight
1.7 kg
Packaging Dimensions (L×W×H)
31 × 29 × 8 cm
Brand
Gigabyte
Desktop RAM
DDR5
Socket
LGA 1700 CPU
