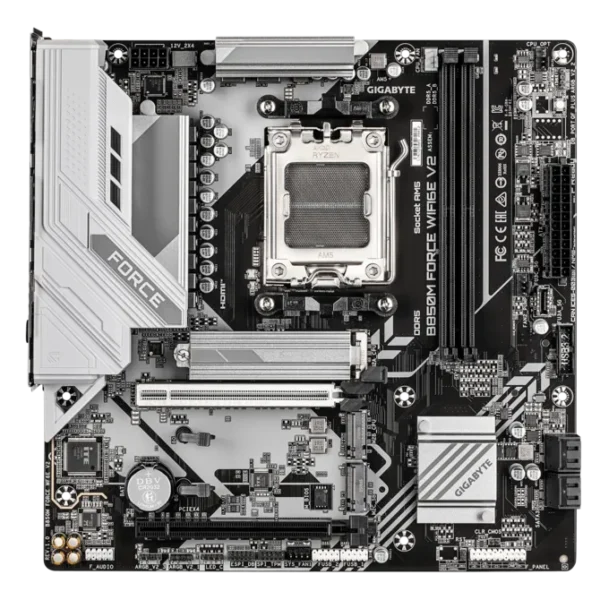

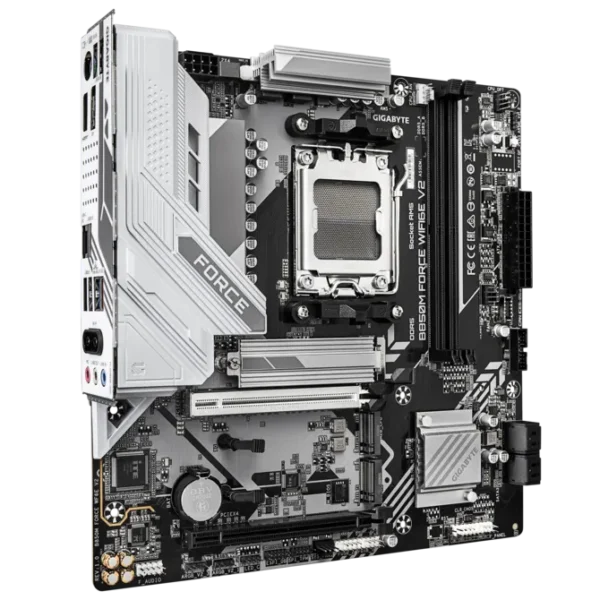

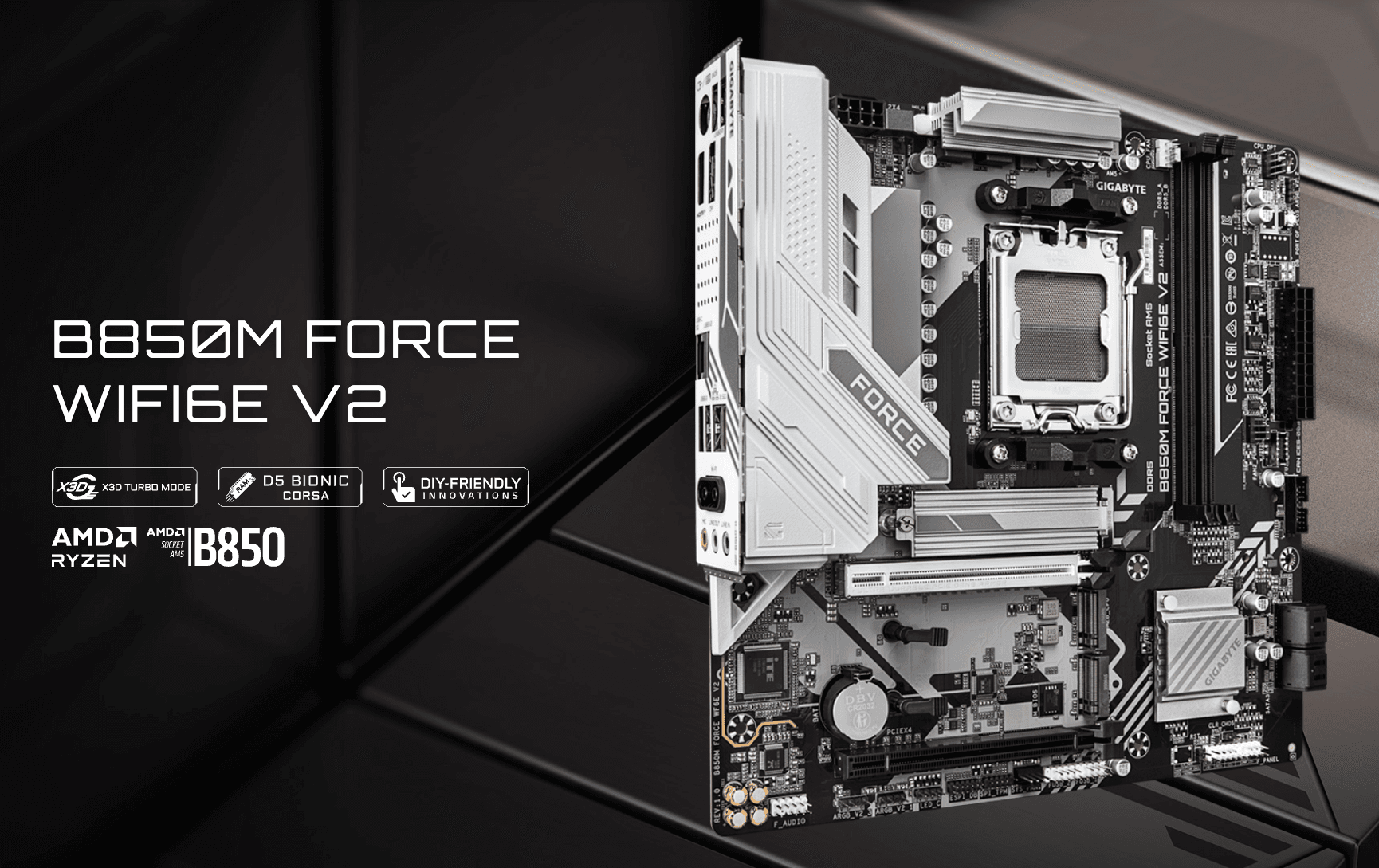

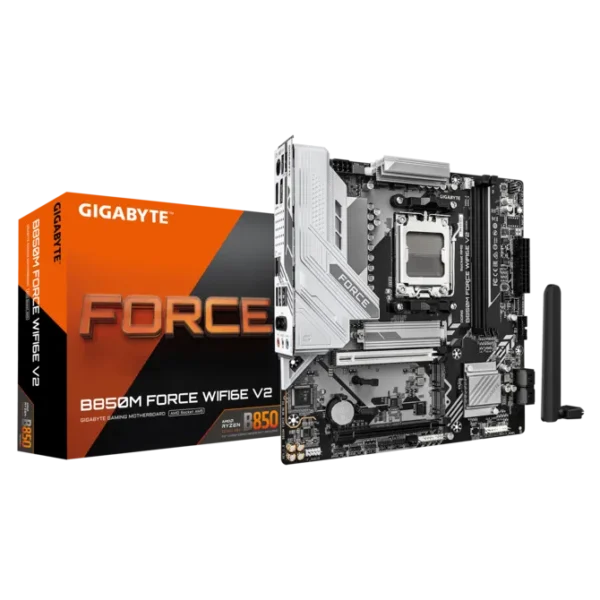

GIGABYTE B850M FORCE WIFI6E V2 AMD AM5 B850 Micro-ATX Motherboard DDR5 PCIe 5.0 – GA-B850M-FORCE-WF6E-V2
₱8,395.00
- Supports AMD Ryzen™ 9000/8000/7000 Series Processors (AM5 Socket).
- 8+2+2 Phases Digital VRM Solution for stable power delivery.
- 2-DIMM DDR5 architecture supports extreme overclocking up to 9600 MT/s.
- PCIe 5.0 x16 slot and PCIe 5.0 M.2 connector for next-gen speed.
- Exclusive X3D Turbo Mode for optimized gaming performance.
- Wi-Fi 6E (802.11ax) & 2.5GbE LAN for high-speed connectivity.
- DIY-friendly features: PCIe EZ-Latch, WIFI EZ-Plug, Q-Flash Plus.
- Rear USB 3.2 Gen 2 Type-A and USB Type-C support.
- SKU: GA-B850M-FORCE-WF6E-V2
In stock
Price Drop Alerts & Price History
-
Authorized
Dealer -
Nationwide
Shipping -
Store &
RMA HUB -
Expert
Support -
7-Day DOA
Protection -
Community
Trusted -
Turnstile
Protected -
reCAPTCHA
Secured -
Tested &
Verified

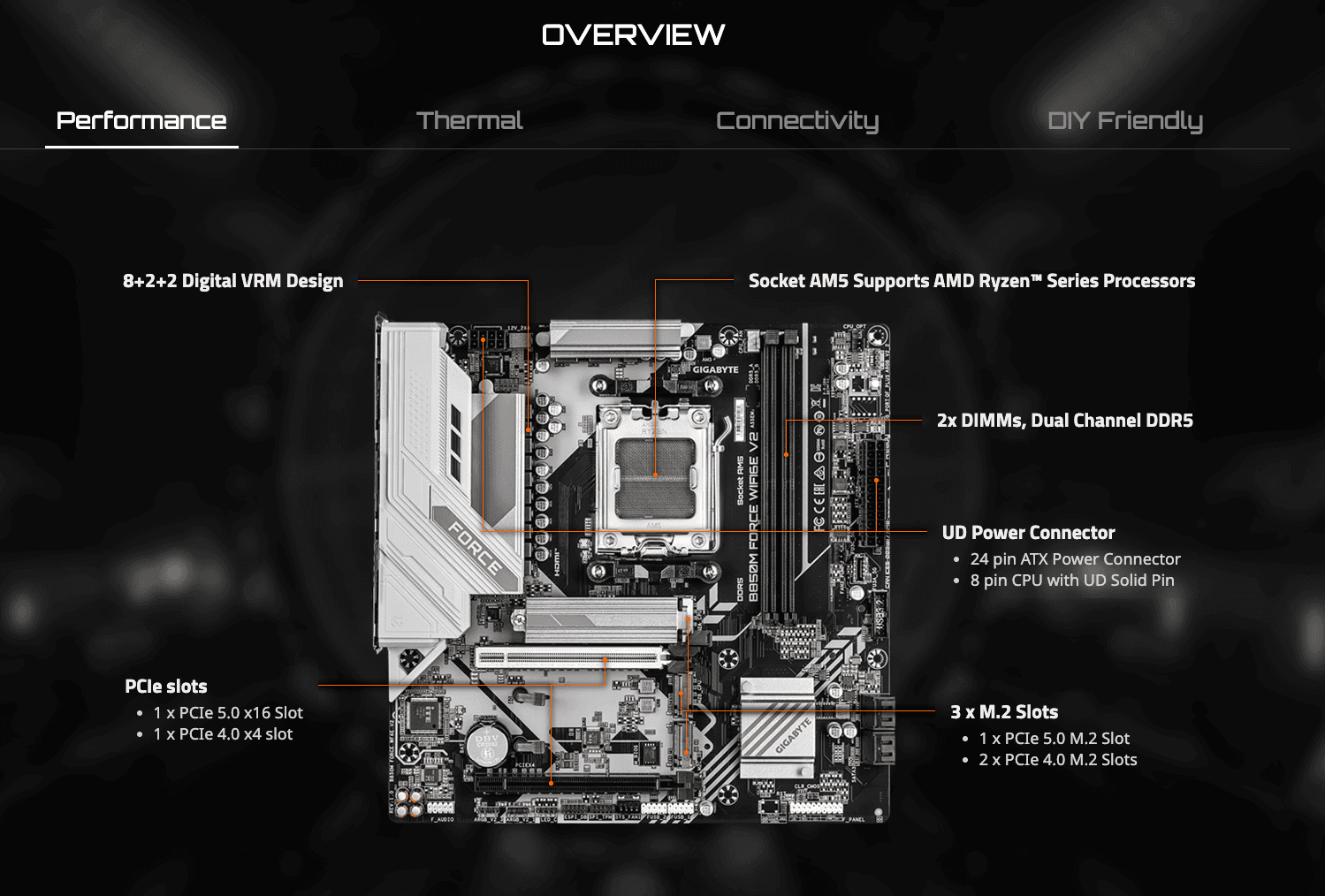

Experience the next evolution of compact gaming performance with the GIGABYTE B850M FORCE WIFI6E V2, a Micro-ATX motherboard meticulously engineered for the AMD AM5 platform. Designed to support the latest AMD Ryzen™ 9000, 8000, and 7000 Series processors, this board is built on a robust 8+2+2 phase digital VRM foundation with UD solid pin connectors, ensuring precise and stable power delivery even under heavy loads. The optimized 2-DIMM architecture is specifically tuned for extreme memory performance, supporting dual-channel DDR5 memory with overclocking speeds reaching up to 9600 MT/s. With exclusive features like X3D Turbo Mode, users can unlock up to 18% higher gaming performance, optimizing latency and frame rates with a single click in the BIOS.

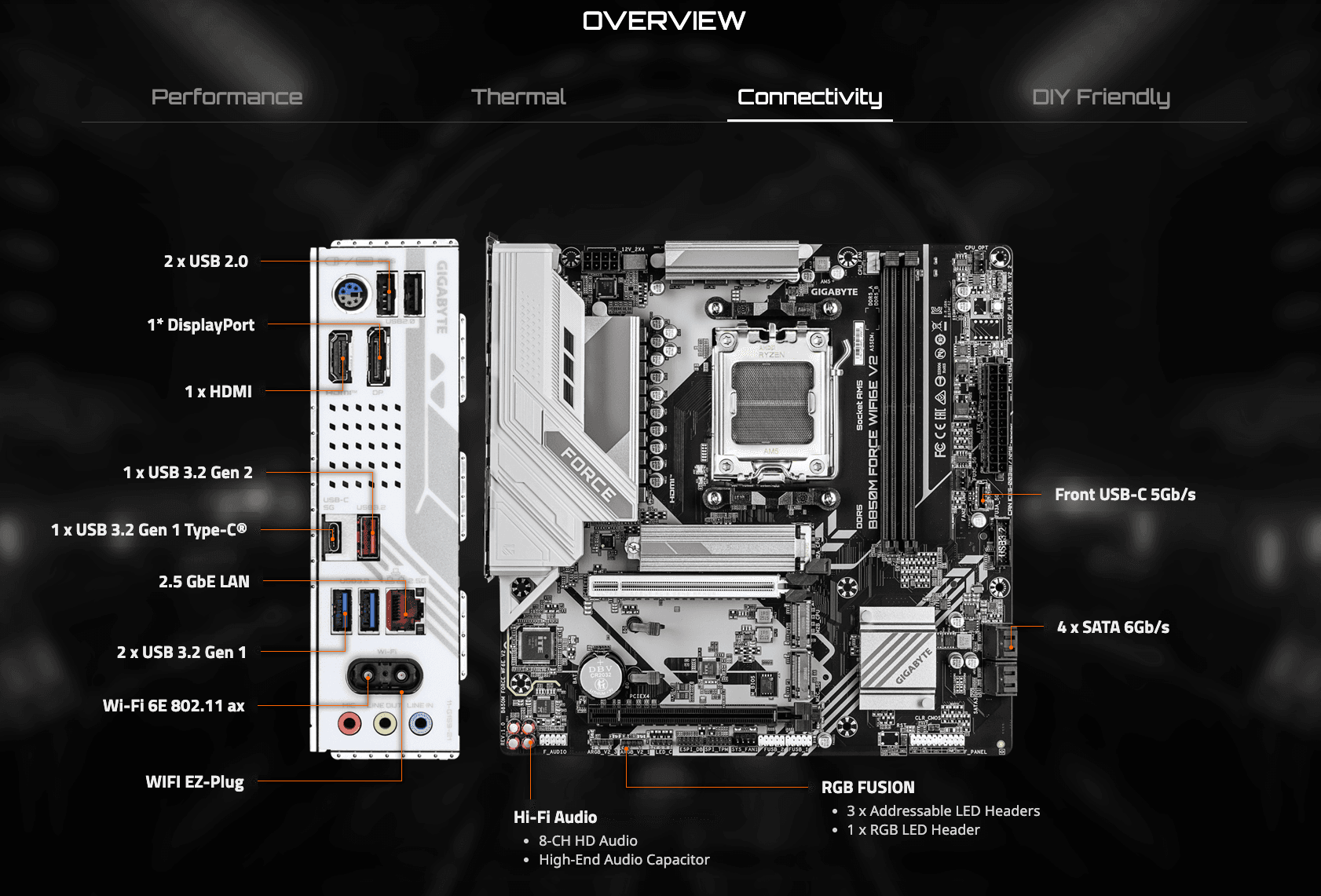

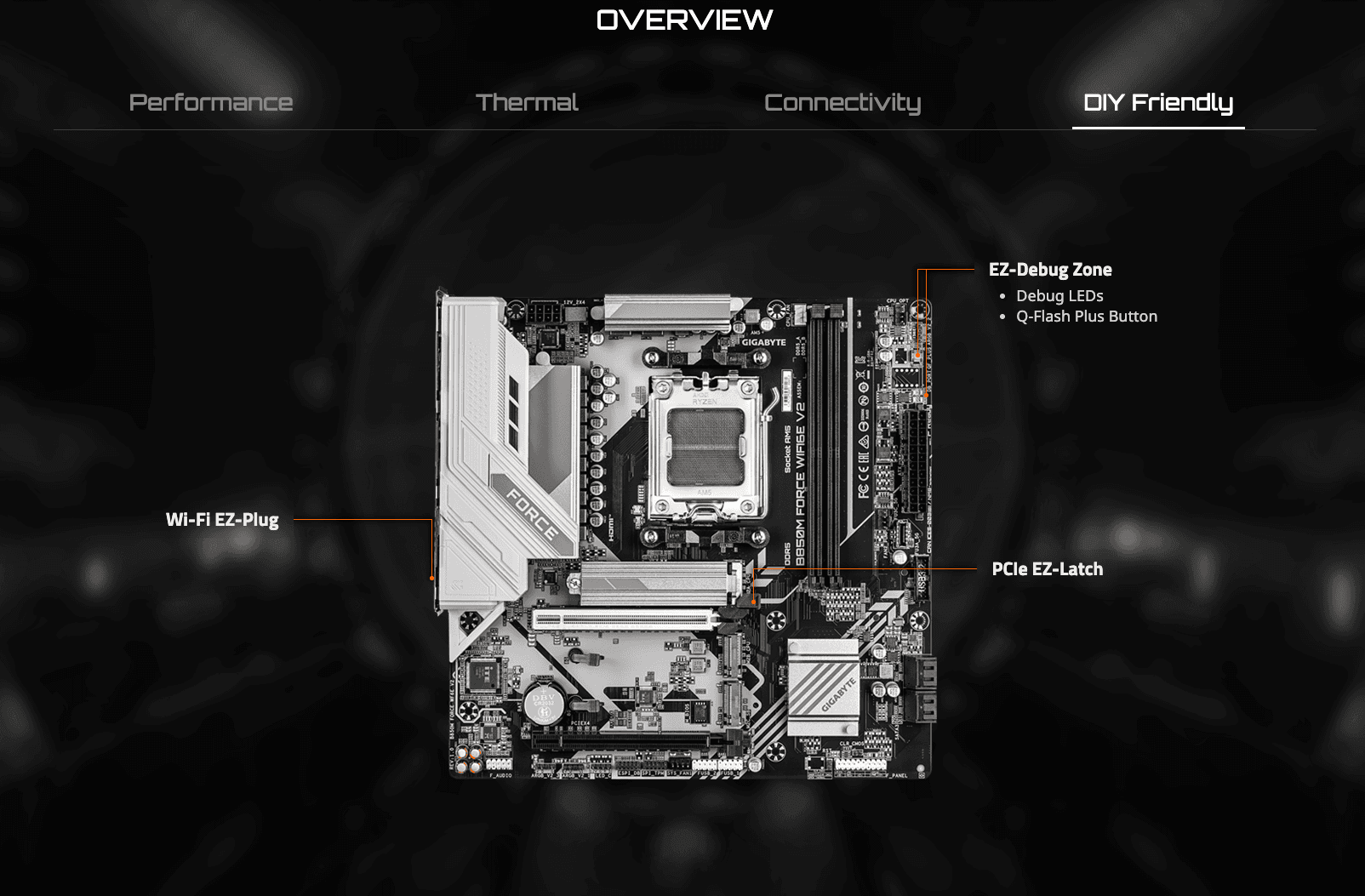

Future-proof your system with cutting-edge connectivity and storage options. The B850M FORCE WIFI6E V2 features a PCIe 5.0 x16 slot for next-generation graphics cards and a PCIe 5.0 M.2 slot for the fastest NVMe SSDs available, doubling the bandwidth of the previous generation. Comprehensive thermal solutions, including fully covered MOSFET heatsinks and advanced thermal guards, keep critical components cool. Networking is blazing fast with onboard 2.5GbE LAN and the latest Wi-Fi 6E technology, featuring the innovative WIFI EZ-Plug for hassle-free antenna installation. GIGABYTE’s Ultra Durable™ philosophy shines through with DIY-friendly additions like the PCIe EZ-Latch for quick graphics card removal, Q-Flash Plus for CPU-less BIOS updates, and the EZ Debug Zone for streamlined troubleshooting, making this the ideal foundation for a high-performance, compact gaming rig.










| Platform & Performance | |
|---|---|
| Model Name | GIGABYTE B850M FORCE WIFI6E V2 |
| Processor Support | AMD Socket AM5: Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors |
| Chipset | AMD B850 |
| Power Delivery | 8+2+2 Phases Digital VRM Solution |
| Performance Tech | X3D Turbo Mode, AI Overclocking, HyperTune BIOS |
| Memory | |
| Memory Slots | 2 x DDR5 DIMM Sockets (Dual Channel Architecture) |
| Max Capacity | Up to 128 GB (64 GB Single DIMM Capacity) |
| Supported Speeds (OC) | Up to 9600(OC) MT/s |
| Memory Profiles | Supports AMD EXPO™ and Intel® XMP Modules |
| Expansion Slots | |
| PCIe x16 Slot (CPU) | 1 x PCI Express x16 slot (PCIe 5.0 support for Ryzen™ 9000/7000; PCIe 4.0 for Ryzen™ 8000) |
| PCIe x16 Slot (Chipset) | 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 |
| Storage Interface | |
| M.2 Connectors (CPU) | 1 x M.2 (M2A_CPU): PCIe 5.0 x4/x2 (Ryzen 9000/7000) 1 x M.2 (M2B_CPU): PCIe 4.0 x4/x2 |
| M.2 Connector (Chipset) | 1 x M.2 (M2C_SB): PCIe 4.0 x2 |
| SATA Ports | 4 x SATA 6Gb/s connectors |
| RAID Support | RAID 0, 1, 10 (NVMe & SATA); RAID 5 (NVMe on Ryzen 9000 only) |
| Networking & Connectivity | |
| LAN | Realtek® 2.5GbE LAN (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Module | MediaTek Wi-Fi 6E MT7902 (802.11ax, 2.4/5/6 GHz) |
| Bluetooth | Bluetooth 5.3 |
| Audio & Graphics | |
| Audio Codec | Realtek® Audio CODEC, High Definition, 2/4/5.1/7.1-channel |
| Display Outputs | 1 x HDMI 2.1 (4096x2160@60Hz), 1 x DisplayPort 1.4 (3840x2160@144Hz) |
| USB Ports | |

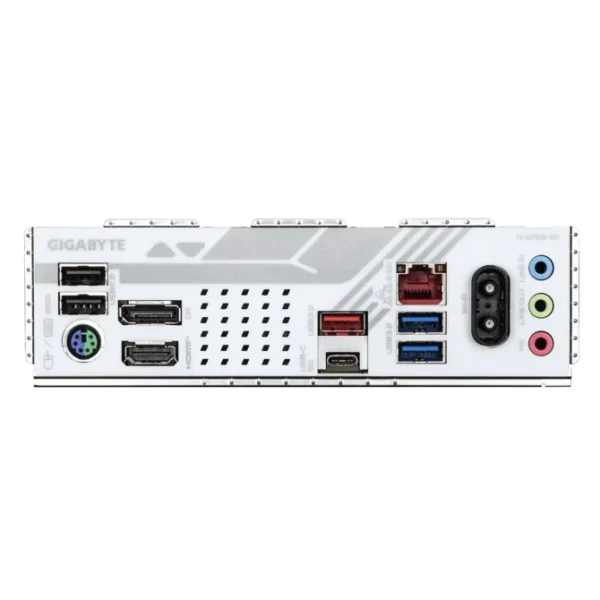

| Rear Panel USB | 1 x USB Type-C® (3.2 Gen 1), 1 x USB 3.2 Gen 2 Type-A (Red), 2 x USB 3.2 Gen 1, 2 x USB 2.0/1.1 |
| Internal USB Headers | 1 x USB Type-C® (3.2 Gen 1), 1 x USB 3.2 Gen 1 (2 ports), 2 x USB 2.0/1.1 (4 ports) |
| Internal I/O Connectors | |
| Power | 1 x 24-pin ATX Main, 1 x 8-pin ATX 12V |
| Cooling | 1 x CPU Fan, 1 x CPU/Water Pump, 1 x Sys Fan, 1 x Sys Fan/Water Pump |
| Lighting | 3 x Addressable RGB Gen2 Headers, 1 x RGB LED Strip Header |
| Other | 1 x TPM Header (SPI V2), 1 x Q-Flash Plus Button, 1 x Reset Jumper, 1 x Clear CMOS Jumper |
| Physical Specifications & Software | |
| Form Factor | Micro ATX (24.4cm x 24.4cm) |
| OS Support | Windows 11 64-bit, Windows 10 64-bit |
| Unique Features | GIGABYTE Control Center (GCC), Q-Flash Plus, Smart Backup, WIFI EZ-Plug, EZ-Latch, X3D Turbo Mode |
| Bundled Software | Norton® Internet Security (OEM version) |
| Weight | 2 kg |
|---|---|
| Dimensions | 30 × 10 × 30 cm |
| Brand | Gigabyte |
| Desktop RAM | DDR5 |
| Socket | AM5 CPU |
