DIY Features: EZ PCIe Release, EZ M.2 Shield Frozr II, Toolless EZ Antenna, Pre-installed I/O Shield
Aesthetics: True all-white design covering the heatsink, PCB, slots, and connectors
In stock
ℹ️
For walk-in customers: please always INQUIRE FIRST before visiting as not all items are displayed in our physical store. As an online-first store, most of our inventory is held in our online warehouse and is transferred to the store upon request.

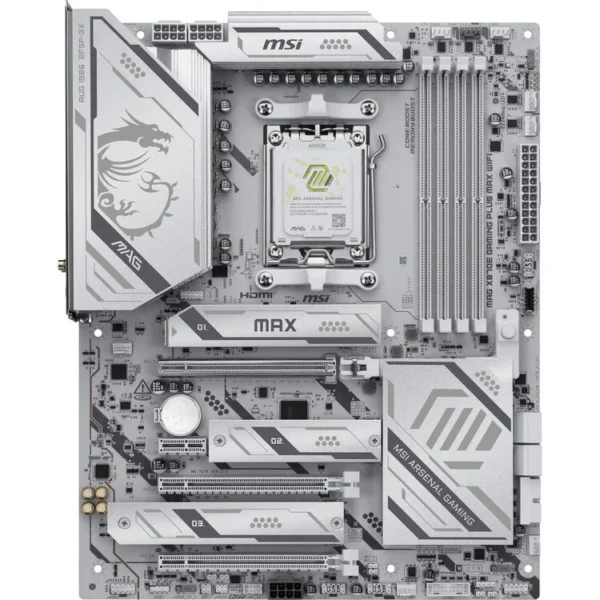

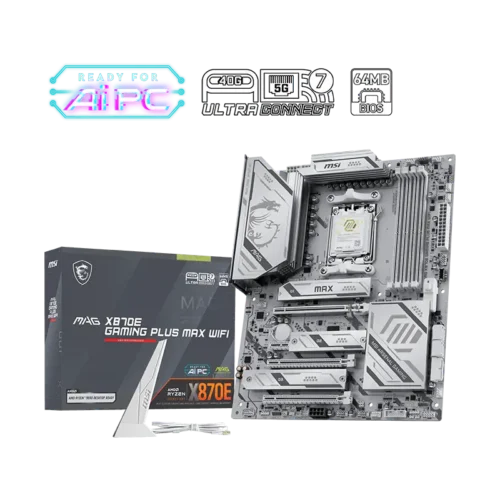

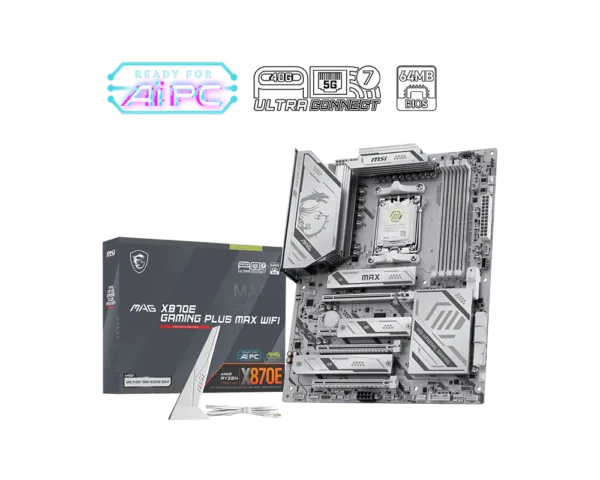

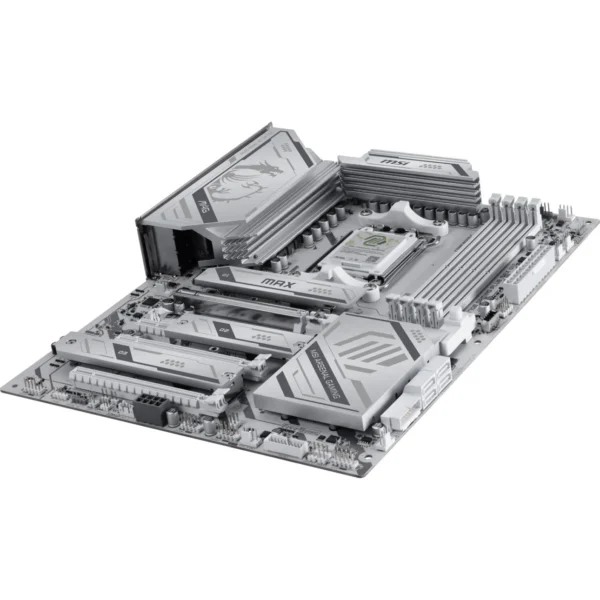

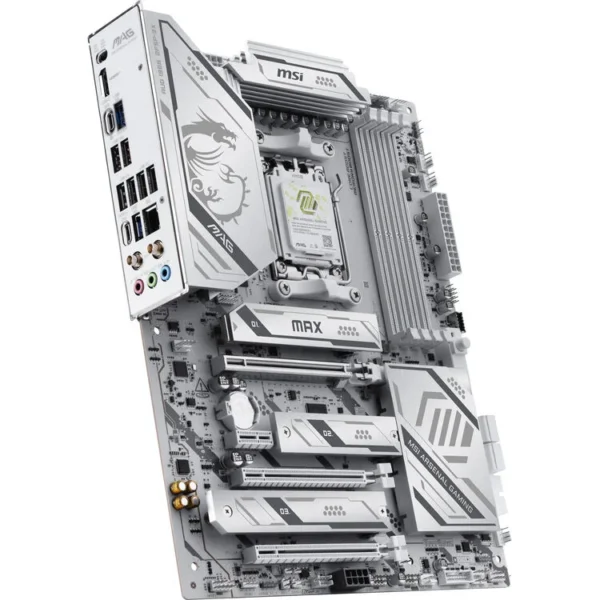

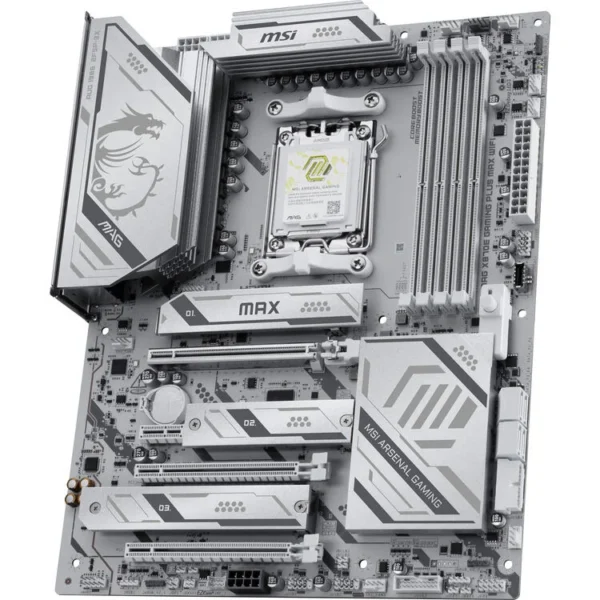

MSI MAG X870E GAMING PLUS MAX WIFI AM5 ATX White Motherboard DDR5 Wi-Fi 7
Price Drop Alerts & Price History
⚠️ That's a steep drop! You might be waiting a while.
We'll notify you the moment the price hits your target.
The MSI MAG X870E GAMING PLUS MAX WIFI brings an immaculate all-white aesthetic to AMD’s latest enthusiast platform. From the heavy-plated heatsinks down to the PCB and connectors, this motherboard is designed for visual perfection in light-themed builds. Backed by a robust 14+2+1 Duet Rail Power System equipped with 60A Smart Power Stages (SPS) and an 8-layer PCB, it provides the absolute stability required to extract maximum performance from flagship Ryzen 9000, 8000, and 7000 Series processors.
Next-Generation Connectivity and EZ DIY Design
Ultra-Fast Networking and USB4
Experience blazing-fast data transfer and latency-free gaming with the integrated Realtek 5G LAN and cutting-edge Wi-Fi 7 (802.11be) solution capable of speeds up to 5.8Gbps. The rear I/O is dominated by a 40Gbps USB4 Type-C port, allowing for massive file transfers, daisy-chaining, and even high-resolution DisplayPort output all from a single connection.
Hassle-Free PC Building
MSI has completely overhauled the building experience. The board features an EZ PCIe Release button to instantly unlatch massive modern GPUs, while the EZ M.2 Shield Frozr II allows for completely toolless SSD installation and thermal pad alignment. Troubleshooting is simplified with the onboard EZ Digi-Debug LED panel, keeping you informed of your system’s status at a glance.
What Philippine Buyers Are Saying
Premium all-white motherboards are highly sought after in the Philippine PC enthusiast community, and the MAG X870E GAMING PLUS MAX WIFI perfectly answers that demand. Local builders heavily appreciate the Extended VRM Heatsinks and 7W/mK thermal pads, which ensure processor stability without thermal throttling, even during the hottest summer months. Additionally, the inclusion of an exclusive Supplemental PCIe 8-pin power connector provides deep reassurance to users planning to install power-hungry flagship GPUs or multi-card setups for local AI rendering workflows.
Known Compatibility and Setup Notes
This motherboard uses the AM5 socket and requires DDR5 memory exclusively (DDR4 is not supported). While it supports Ryzen 7000 and 8000 series out of the box, you may want to use the rear Flash BIOS Button to update to the latest firmware when installing a new Ryzen 9000 series processor. For users with high-end graphics cards, ensure you connect a power supply cable to the dedicated 8-pin Supplemental PCIe Power connector at the bottom of the board to guarantee stable power delivery to the PCIe slots during power excursions.
Who Should Buy This
White-Theme PC Builders: The comprehensive white PCB, heatsinks, and connectors make this the ultimate centerpiece for an aesthetically focused light build.
High-End AM5 Upgraders: Built to fully support the demands of Ryzen 9000 CPUs and extremely fast DDR5 memory (up to 8200+ MT/s) with EXPO auto-tuning.
Future-Proofers: With a Lightning Gen 5 PCIe slot, Gen 5 M.2 storage, USB4 (40Gbps), and Wi-Fi 7, you are fully equipped for the next generation of PC hardware.
MSI MAG X870E GAMING PLUS MAX WIFI Specifications
General Information
Brand
MSI
Product Series
MAG Series (Arsenal Gaming)
Model Name
MAG X870E GAMING PLUS MAX WIFI
Form Factor
ATX (243.84 mm x 304.8 mm)
Processor & Chipset
CPU Socket
AM5
CPU Support
AMD Ryzen™ 9000, 8000, and 7000 Series Desktop Processors
Chipset
AMD X870E
Memory
Memory Type
DDR5 (Dual-Channel)
Memory Slots & Capacity
4 x DDR5 UDIMM Slots, Up to 256GB Maximum
Supported Speeds
Up to 8200+ MT/s (OC) depending on CPU architecture
Overclocking Tech
AMD EXPO™, A-XMP, High-Efficiency Mode, CUDIMM Support
Power Design & Cooling
Power Delivery
14+2+1 Duet Rail Power System with 60A Smart Power Stage (SPS)
CPU Power Connectors
2 x 8-pin (Solid Pin Design)
Thermal Solution
Extended VRM Heatsink, 7W/mK Thermal Pads, EZ M.2 Shield Frozr II, Enlarged Chipset Heatsink
PCB Construction
8-Layer PCB Fabric Technology with 2oz Thickened Copper
Expansion Slots & Storage
PCIe Slots
1 x PCIe 5.0 x16 (From CPU) 2 x PCIe x16 (PCIe 4.0 x4 & PCIe 3.0 x1 from Chipset) 1 x PCIe 3.0 x1
Supplemental PCIe Power
1 x 8-pin PCIE_PWR connector for demanding multi-GPU or AI setups
M.2 Slots
1 x M.2 Gen5 x4 (From CPU) 2 x M.2 Gen4 x4 (From Chipset)
Realtek® ALC897 7.1-Channel High Definition Audio (Isolated Structure)

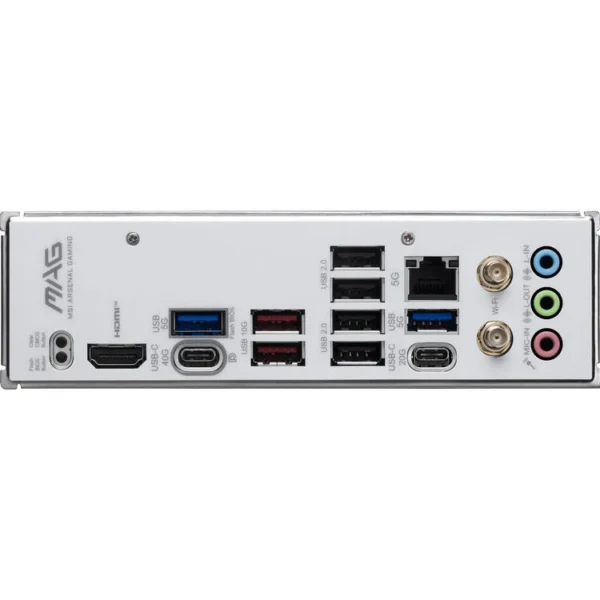

Rear I/O Panel
USB Type-C
1 x USB 40Gbps (USB4, supports DP 1.4 HBR3) 1 x USB 20Gbps
USB Type-A
2 x USB 10Gbps 2 x USB 5Gbps 4 x USB 2.0
Display Outputs
1 x HDMI™ 2.1 (4K @ 60Hz) 1 x DisplayPort via USB4 Type-C (4K @ 120Hz)
Buttons & Antenna
Clear CMOS Button, Flash BIOS Button, Wi-Fi EZ Antenna Connectors
Packaging Weight
2.1 kg
Packaging Dimensions (L×W×H)
35 × 30 × 9 cm
Brand
MSI
Desktop RAM
DDR5
Socket
AM5 CPU
