MSI MPG Z790 CARBON WIFI Motherboard Intel Z790 LGA 1700 DDR5 7600MHz Wi-Fi 6E - MPG Z790 CARBON WIFI

MSI MPG Z790 CARBON WIFI Motherboard Intel Z790 LGA 1700 DDR5 7600MHz Wi-Fi 6E – MPG Z790 CARBON WIFI

Original price was: ₱31,910.00.Current price is: ₱27,750.00.

Supports Intel Core 14th/13th/12th Gen Processors (LGA 1700)
DDR5 memory support up to 7600+ MHz (OC), max 256GB
Direct 19+1+1 power phase design with 105A SPS and Core Boost
Extended heatsink with heat-pipe, double-sided M.2 Shield Frozr
Wi-Fi 6E, Bluetooth 5.3, and 2.5G LAN with magnetic antenna
PCIe 5.0 and M.2 Gen 5 slots for ultra-fast storage
Mystic Light RGB, Audio Boost 5, and Smart Button
SKU: MPG Z790 CARBON WIFI

In stock

Price Drop Alerts & Price History

We'll notify you the moment the price hits your target.

💡 Suggested alert: ₱26,300 [ Use this ]

Want to track and manage your alerts? Sign in or create an account.

SKU: MPG Z790 CARBON WIFI Categories: Intel LGA 1700 Motherboards, Motherboards Tag: MSI

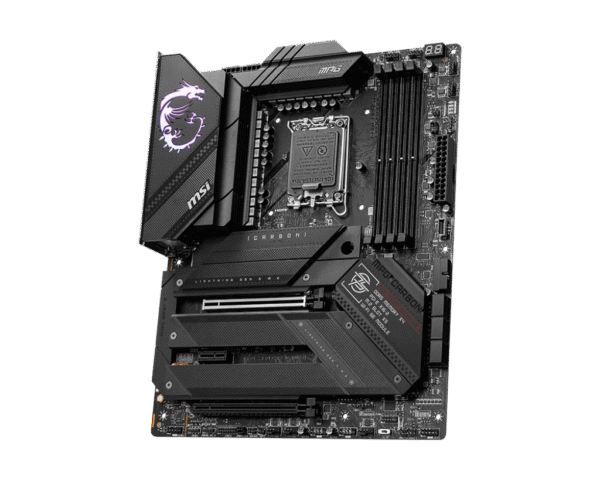

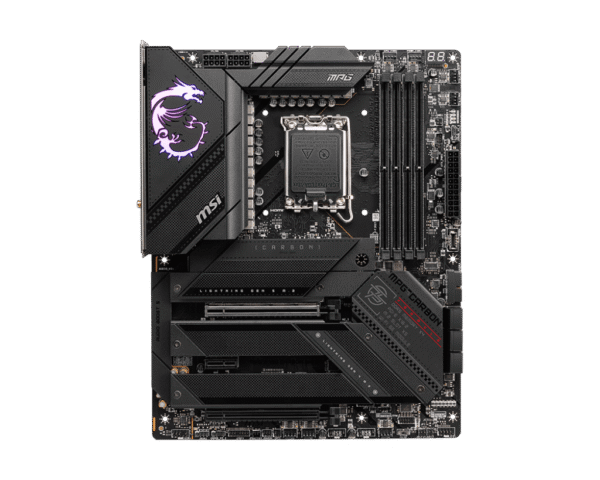

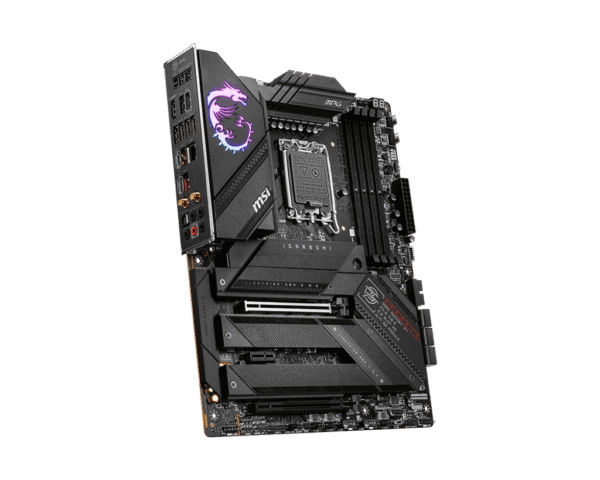

MSI MPG Z790 CARBON WIFI Motherboard

The MSI MPG Z790 CARBON WIFI motherboard blends premium aesthetics with top-tier performance for gamers and professionals. Supporting Intel Core 14th, 13th, and 12th Gen processors, it features a direct 19+1+1 power phase design with 105A Smart Power Stage and Core Boost for exceptional power delivery. Its advanced thermal solution, including an extended heatsink with heat-pipe, double-sided M.2 Shield Frozr, and 7W/mK MOSFET thermal pads, ensures optimal cooling under heavy loads. With DDR5 memory support up to 7600+ MHz (OC) and an 8-layer server-grade PCB, it delivers world-class performance and signal integrity. Wi-Fi 6E, Bluetooth 5.3, and 2.5G LAN provide high-speed, low-latency connectivity, enhanced by a magnetic antenna. Lightning Gen 5 PCIe and M.2 slots offer ultra-fast storage and expansion. Mystic Light RGB adds vibrant customization, while Audio Boost 5 delivers studio-grade sound. Features like a pre-installed IO shield and Smart Button enhance ease of use for high-performance builds.

Specification	Details
Chipset	Intel Z790
CPU Support	Intel Core 14th/13th/12th Gen Processors, Intel Pentium Gold, Celeron Processors (LGA 1700)
Memory	4x DDR5, Max 256GB, Supports 7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(JEDEC)/5400(JEDEC)/5200(JEDEC)/5000(JEDEC)/4800(JEDEC) MHz, Dual-Controller Dual-Channel, Non-ECC, Un-buffered, Intel XMP 3.0
Max Overclocking Frequency	1DPC 1R: Up to 7600+ MHz, 1DPC 2R: Up to 6600+ MHz, 2DPC 1R: Up to 6400+ MHz, 2DPC 2R: Up to 5600+ MHz
Onboard Graphics	1x HDMI 2.1 (4K 60Hz) *Available only on processors with integrated graphics
Expansion Slots	2x PCIe x16 (1x PCIe 5.0 x16/x8 from CPU, 1x PCIe 4.0 x4 from Chipset), 1x PCIe 3.0 x1
Audio	Realtek ALC4080 Codec, 7.1-Channel USB High Performance Audio, Up to 32-Bit/384 kHz playback on front panel, Optical S/PDIF Out
Storage	5x M.2 (1x PCIe 5.0 x4, 3x PCIe 4.0 x4, 1x PCIe 4.0 x4/SATA, supports 22110/2280/2260), 6x SATA 6Gbps
RAID	Supports RAID 0, 1, 5, 10 for SATA (except SATA_A1_A2) and M.2 NVMe storage devices
USB	4x USB 2.0 (Front), 2x USB 5Gbps Type-A (Rear), 2x USB 5Gbps Type-A (Front), 6x USB 10Gbps Type-A (Rear), 1x USB 10Gbps Type-C (Rear), 1x USB 20Gbps Type-C (Rear), 1x USB 20Gbps Type-C (Front)
LAN	Intel 2.5Gbps LAN
Wireless & Bluetooth	Intel Wi-Fi 6E (2.4GHz/5GHz/6GHz up to 2.4Gbps, 802.11 a/b/g/n/ac/ax), Bluetooth 5.3
Internal I/O	1x ATX_PWR, 2x CPU_PWR, 1x CPU Fan, 1x Pump Fan, 5x System Fan, 2x Front Panel, 1x Chassis Intrusion, 1x Front Audio, 1x Tuning Controller, 2x Addressable V2 RGB LED, 1x RGB LED, 1x TPM, 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 20Gbps Type-C
LED Features	1x EZ LED Control switch, 1x 2-Digit Debug Code LED, 4x EZ Debug LED

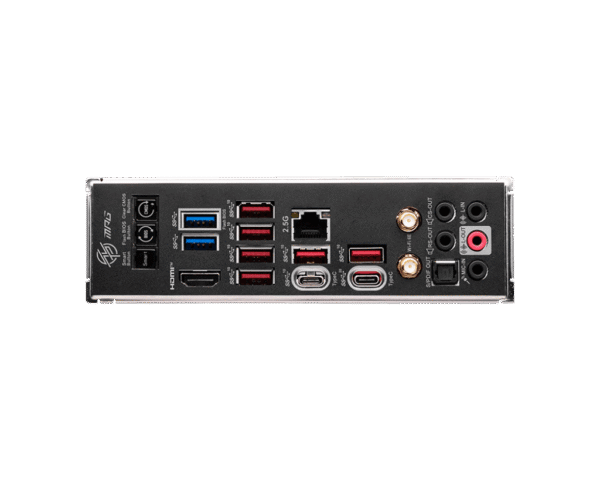

Back Panel Ports	HDMI, 2x USB 5Gbps Type-A, 6x USB 10Gbps Type-A, 1x USB 10Gbps Type-C, 1x USB 20Gbps Type-C, 2.5G LAN, Wi-Fi/Bluetooth, Audio Connectors, Optical S/PDIF Out, Clear CMOS/Flash BIOS Button, Smart Button
Operating System	Windows 11 64-bit, Windows 10 64-bit
Form Factor	ATX (243.84mm x 304.8mm)
