Auto Driver Installer, BIOS Flashback, and Post Status Checker
Rear I/O: 1 × HDMI, 1 × D-Sub, 4 × USB 3.2 Gen1, 4 × USB 2.0
Micro ATX Form Factor (24.4 × 22.9 cm)
In stock
ℹ️
For walk-in customers: please always INQUIRE FIRST before visiting as not all items are displayed in our physical store. As an online-first store, most of our inventory is held in our online warehouse and is transferred to the store upon request.
ASRock A620AM-HVS Micro ATX AM5 motherboard with DDR5, PCIe 4.0, RGB Sync, and Dr.MOS Power Design for AMD Ryzen 9000/8000/7000 processors
Price Drop Alerts & Price History
⚠️ That's a steep drop! You might be waiting a while.
We'll notify you the moment the price hits your target.

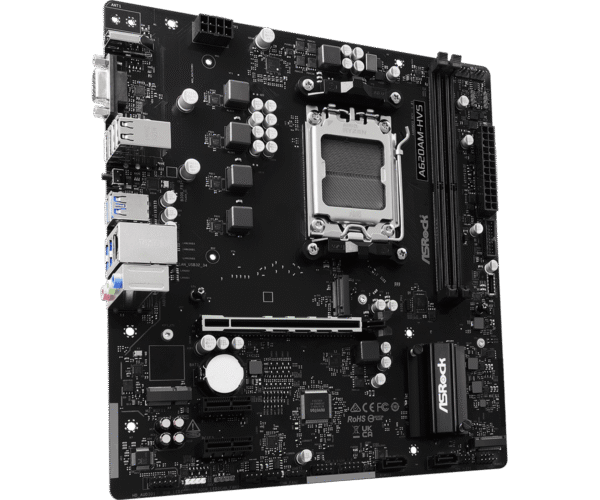

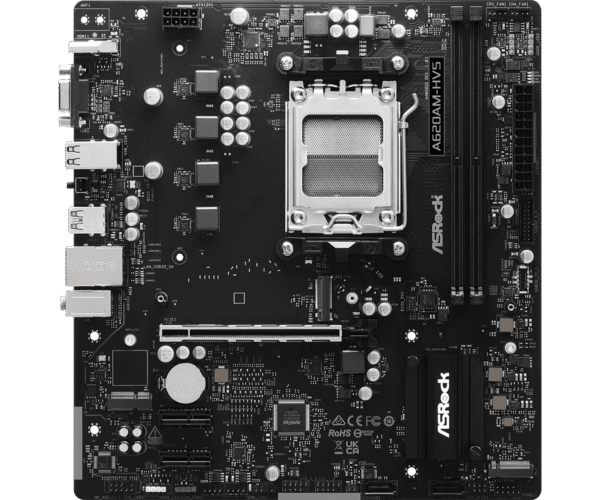

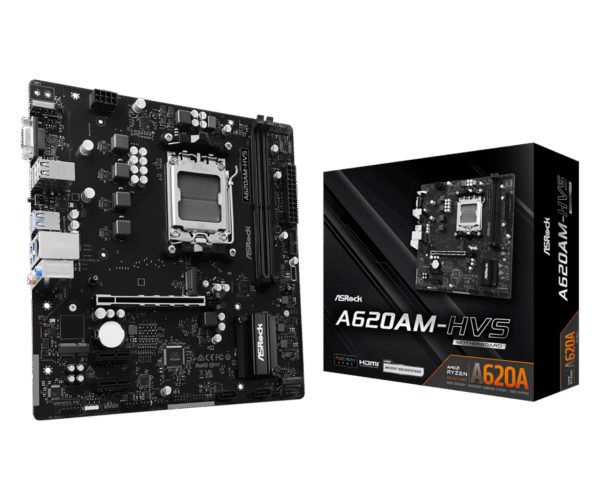

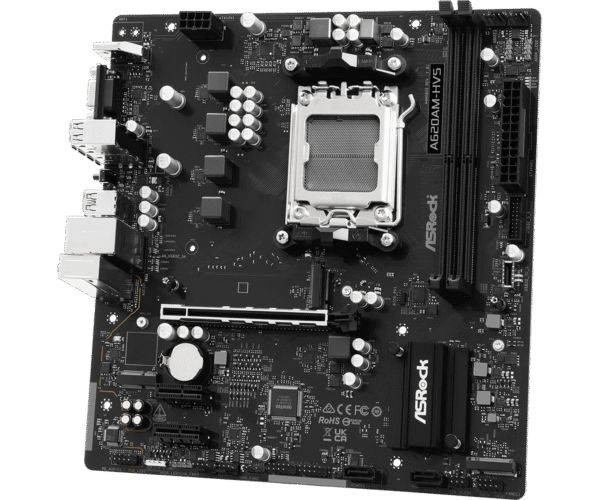

The ASRock A620AM-HVS is a dependable Micro ATX motherboard designed for AMD’s Ryzen™ 9000, 8000, and 7000 Series processors on the AM5 socket. Featuring a solid 4+1+1 Dr.MOS power phase and a 2oz copper PCB, it provides reliable power delivery and thermal efficiency. It supports Dual Channel DDR5 memory up to 128GB with speeds reaching DDR5-6800+(OC), making it ideal for productivity and everyday workloads. The board includes a PCIe 4.0 x16 slot, dual M.2 slots (Gen4x4 and Gen3x4/SATA3), and two SATA ports for flexible storage options. Users benefit from ASRock’s signature features such as Auto Driver Installer, BIOS Flashback, and Post Status Checker LEDs for effortless setup and maintenance. For connectivity, it offers a full range of USB 3.2 and 2.0 ports, front USB-C support, Realtek Gigabit LAN, and integrated RGB/ARGB headers compatible with Polychrome Sync and SignalRGB. Built with stability, usability, and value in mind, the A620AM-HVS is a great choice for modern AM5 systems focused on durability and simplicity.
Specification
Details
Model
ASRock A620AM-HVS
Chipset
AMD A620A
CPU Support
AMD Ryzen™ 9000, 8000, and 7000 Series Processors (Socket AM5)
Power Design
4+1+1 Power Phase, Dr.MOS for Vcore, 2oz Copper PCB
Memory Support
2 × DDR5 DIMM slots, up to 128GB Dual Channel DDR5
Supports up to DDR5-6800+(OC)
Supports XMP & EXPO memory profiles
Graphics
Integrated AMD RDNA™ Graphics (varies by CPU)
1 × HDMI 2.1 (up to 4K 120Hz, HDR, HDCP 2.3)
1 × D-Sub (up to 1920×1080 @60Hz)
Expansion Slots
1 × PCIe 4.0 x16 Slot (x16 for Ryzen 9000/7000, x8 for 8000 Phoenix 1, x4 for 8000 Phoenix 2)
2 × PCIe 3.0 x1 Slots
1 × M.2 (Key E) for WiFi Module
1 × CPU Fan (4-pin, 1A)
3 × Chassis/Water Pump Fan (4-pin, 3A each)
Supports PWM/DC mode auto detection

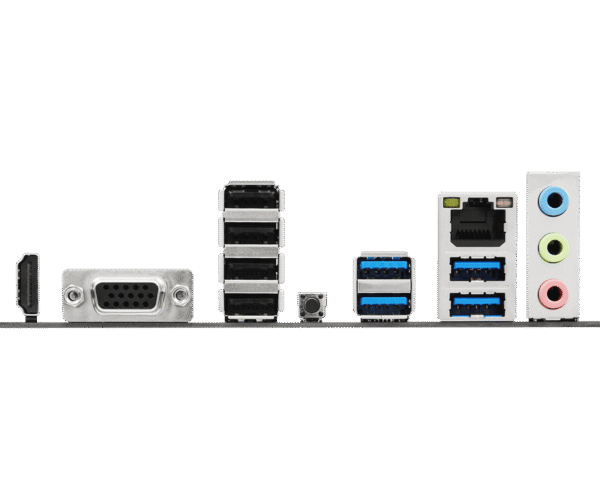

Rear I/O Ports
1 × D-Sub, 1 × HDMI
4 × USB 3.2 Gen1 Type-A
4 × USB 2.0
1 × RJ-45 LAN
1 × BIOS Flashback Button
3 × HD Audio Jacks (Line-in, Front Speaker, Mic)
2 × WiFi Antenna Mounts
Internal Headers
24-pin ATX Power / 8-pin CPU Power
Front Panel Audio / Front Panel Header
2 × USB 2.0 Headers (4 ports)
1 × USB 3.2 Gen1 Header (2 ports)
1 × Front USB 3.2 Gen1 Type-C Header
Unique Features
Dr.MOS Power Stage
Auto Driver Installer
BIOS Flashback Button
Post Status Checker LEDs
SignalRGB Integration
ASRock Polychrome Sync
