₱5,900.00Original price was: ₱5,900.00.₱4,989.00Current price is: ₱4,989.00.
Supports AMD Ryzen 7000/8000/9000 Series processors (SKU: GA-A620M-H)
Dual-channel DDR5, up to 128GB, supports 6400MT/s (OC) with AMD EXPO & Intel XMP
PCIe 4.0 x4 M.2 and 4 x SATA 6Gb/s with RAID 0/1/10 support
DisplayPort (3840×2160@144 Hz) and HDMI 2.1 (4096×2160@60 Hz) for up to 3 displays
Realtek GbE LAN for fast networking
Smart Fan 6 with multiple sensors and hybrid fan headers
EZ-Latch PCIe x16 slot and Q-Flash Plus for easy BIOS updates
Micro ATX form factor (23.0cm x 22.5cm) for compact builds
In stock
ℹ️
For walk-in customers: please always INQUIRE FIRST before visiting as not all items are displayed in our physical store. As an online-first store, most of our inventory is held in our online warehouse and is transferred to the store upon request.

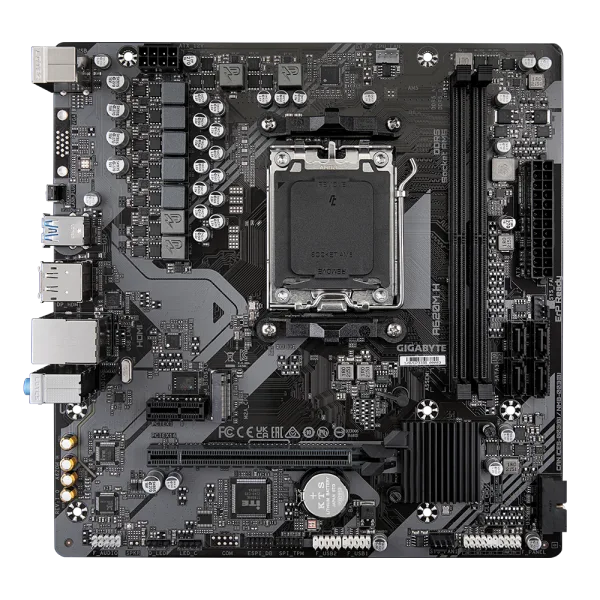

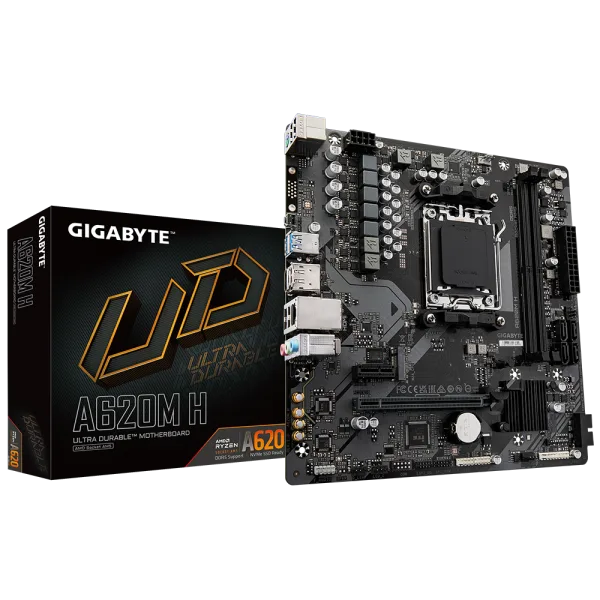

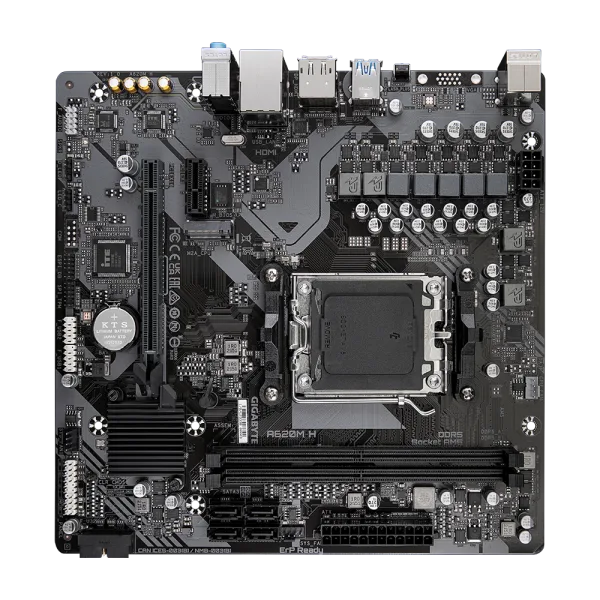

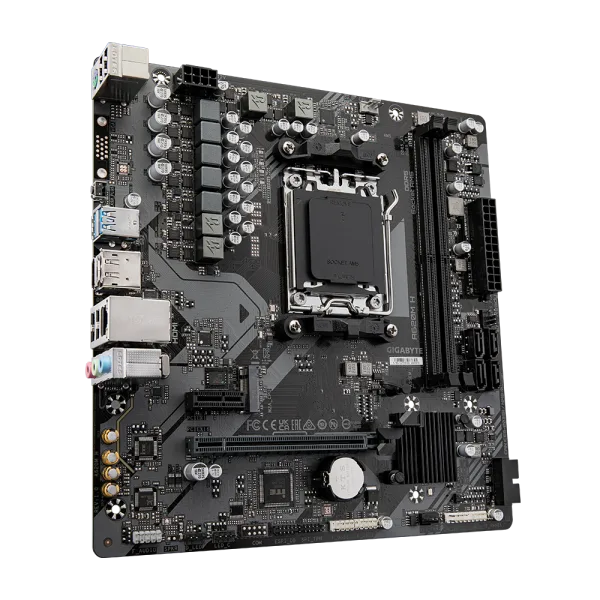

Gigabyte A620M H (rev. 1.0) Micro ATX Motherboard for AMD Ryzen AM5
The Gigabyte A620M H (rev. 1.0) motherboard delivers robust performance for AMD Ryzen 7000, 8000, and 9000 Series processors, leveraging the AMD A620 chipset for modern computing needs. Designed with a 5+2+2 phases digital VRM solution, it ensures stable power delivery for seamless operation under demanding workloads. Supporting dual-channel DDR5 memory up to 128GB with speeds reaching 6400MT/s (OC) and compatibility with AMD EXPO and Intel XMP profiles, this board maximizes memory performance for gaming and productivity. Its PCIe 4.0 x4 M.2 connector and four SATA 6Gb/s ports offer high-speed storage options with RAID 0, 1, and 10 support. Integrated graphics support via DisplayPort (3840×2160@144 Hz) and HDMI 2.1 (4096×2160@60 Hz) enables vibrant visuals for up to three displays. The Realtek GbE LAN ensures fast and reliable networking, while Smart Fan 6 technology with multiple temperature sensors and hybrid fan headers optimizes cooling efficiency. Features like EZ-Latch PCIe x16 slot and Q-Flash Plus for BIOS updates without CPU, memory, or GPU simplify upgrades and maintenance. With comprehensive connectivity, including USB 3.2 Gen 1 and extensive internal I/O, this Micro ATX board balances performance, affordability, and versatility for compact builds.
2 x DDR5 DIMM sockets, up to 128GB (64GB single DIMM), supports DDR5 6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s, AMD EXPO & Intel XMP
Onboard Graphics
1 x DisplayPort (3840x2160@144 Hz), 1 x HDMI (4096x2160@60 Hz), supports up to 3 displays
Audio
Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel
LAN
Realtek® GbE LAN (1 Gbps/100 Mbps/10 Mbps)
Expansion Slots
1 x PCIe x16 (CPU, PCIe 4.0 x16/x8/x4 modes), 1 x PCIe x1 (Chipset, PCIe 3.0 x1)
Storage Interface
1 x M.2 (PCIe 4.0 x4/x2, type 2580), 4 x SATA 6Gb/s, RAID 0/1/10 support
USB
CPU: 2 x USB 3.2 Gen 1, 1 x USB 2.0/1.1 (back panel); Chipset: 2 x USB 3.2 Gen 1, 7 x USB 2.0/1.1 (internal/back panel)
Internal I/O Connectors
1 x 24-pin ATX, 1 x 8-pin ATX 12V, 1 x CPU fan, 2 x system fan, 1 x addressable LED, 1 x RGB LED, 1 x M.2, 4 x SATA 6Gb/s, 1 x front panel, 1 x front panel audio, 1 x USB 3.2 Gen 1, 2 x USB 2.0/1.1, 1 x TPM, 1 x Clear CMOS
Back Panel Connectors
4 x USB 2.0/1.1, 1 x PS/2, 1 x Q-Flash Plus button, 2 x USB 3.2 Gen 1, 1 x DisplayPort, 1 x HDMI, 1 x RJ-45, 3 x audio jacks
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage, temperature, fan speed, water cooling flow rate detection, fan fail warning, fan speed control
BIOS
256 Mbit flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
GIGABYTE Control Center, Q-Flash, Q-Flash Plus
Bundled Software
Norton® Internet Security (OEM), LAN bandwidth management
Operating System
Windows 11 64-bit, Windows 10 64-bit
Form Factor
Micro ATX (23.0cm x 22.5cm)
Weight
1 kg
Dimensions
28 × 27 × 6 cm
Brand
Gigabyte
Desktop RAM
DDR5
Socket
AM5 CPU
