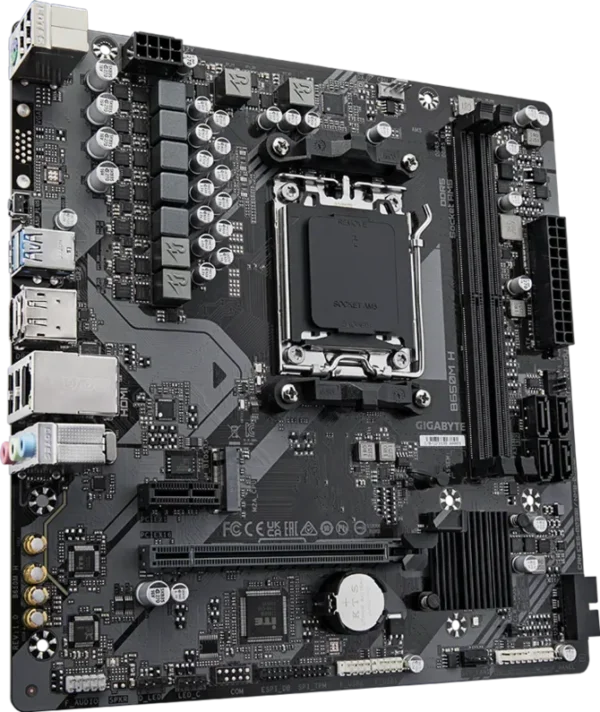

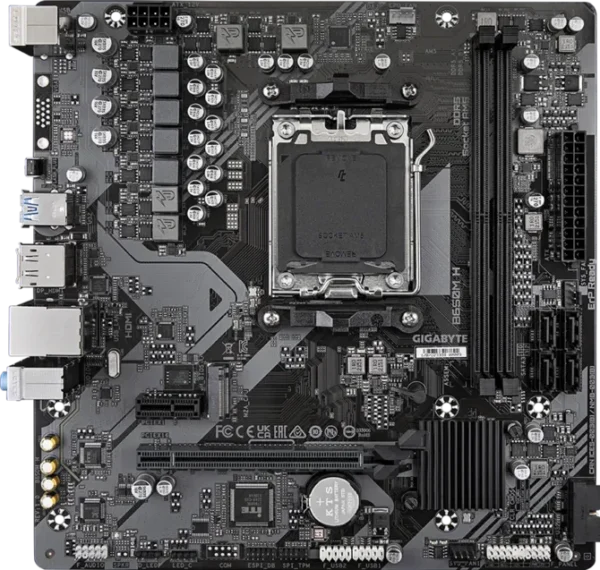

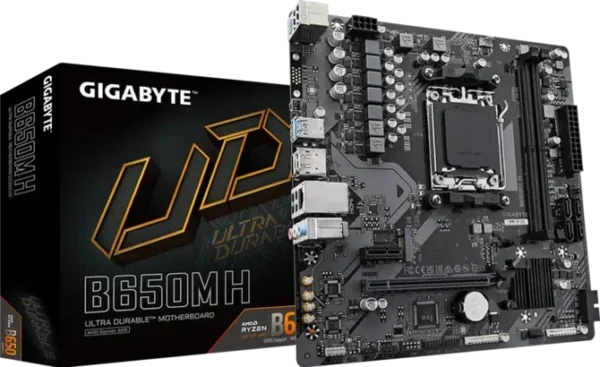

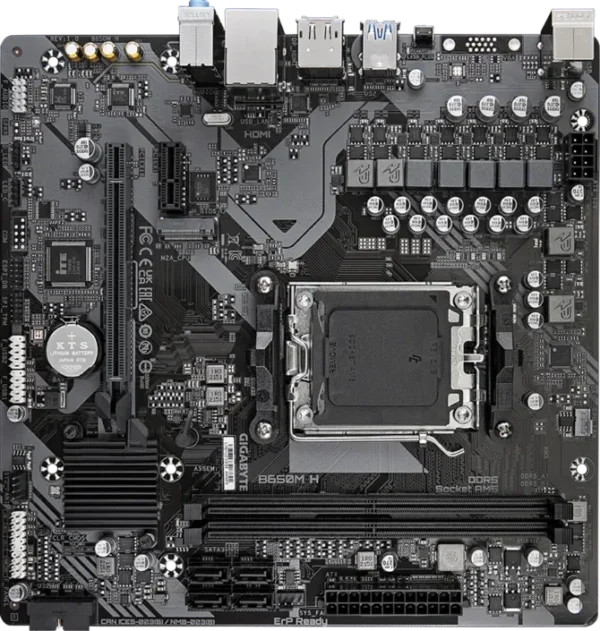

GIGABYTE Micro-ATX AMD B650 DDR5 AM5 Motherboard with PCIe 4.0 & GbE LAN – GA-B650M-H

Next-Generation AM5 Platform Performance

The GIGABYTE B650M H motherboard is meticulously crafted to deliver unparalleled performance and reliability for modern PC builds. Serving as a robust foundation for the AMD AM5 Socket, it natively supports the latest AMD Ryzen™ 7000, 8000, and 9000 Series Processors. This makes it an exceptionally versatile choice for gamers, content creators, and professionals who demand bleeding-edge processing power. Operating on the AMD B650 Chipset, this Micro-ATX board balances high-end features with a compact footprint, ensuring it fits easily into a wide variety of PC cases while still providing the immense throughput required by today’s most demanding applications.

Power delivery is the lifeblood of processor performance, and GIGABYTE addresses this with a formidable 5+2+2 Phases Digital VRM Solution. Utilizing Low RDS(on) MOSFETs, this digital PWM design provides incredible precision when delivering power to the motherboard’s most energy-sensitive components. It ensures your high-end AMD processor receives clean, stable power under heavy loads, which directly translates to enhanced system stability and ultimate hardware scalability. Complementing this is the solid pin CPU power connector, designed to create a secure physical connection that minimizes impedance and heat generation during intense computing tasks.

Extreme DDR5 Memory Optimization

Pushing the boundaries of system memory, the B650M H features two Surface-Mount Device (SMD) DDR5 DIMM sockets, supporting a massive total capacity of up to 128 GB. GIGABYTE has rigorously tested this platform to ensure immense overclocking capability, supporting DDR5 speeds of 6400 MT/s and beyond. Achieving these extreme speeds is remarkably simple thanks to dual support for both AMD EXPO™ and Intel® XMP technology. The motherboard automatically detects these performance profiles, allowing users to unlock massive memory bandwidth with a single click in the BIOS, dramatically improving in-game frame rates and application loading times.

To further maximize DDR5 potential, GIGABYTE includes an exclusive circuit design that unlocks Native DDR5 PMIC secure mode into a programmable mode. This allows for a wider range of voltage control, essentially transforming native DDR5 modules into overclocked powerhouses. The physical design of the board also contributes to this stability; all memory routing is shielded beneath the PCB inner layer by a large ground plane, protecting sensitive data signals from external electrical interference. Additionally, the DDR5 Auto Booster feature can automatically boost native memory frequencies to 5000MHz under heavy loads, ensuring you always have the bandwidth you need, exactly when you need it.

SuperSpeed Storage and Future Connectivity

Storage speed is paramount for a responsive system, and this motherboard delivers with a dedicated PCIe 4.0 x4 M.2 connector integrated directly into the CPU lanes. This high-speed interface allows for the installation of lightning-fast NVMe SSDs (Type 2580/2280), drastically reducing operating system boot times and allowing massive game worlds to load in seconds. For users who require extensive storage pools for media or backups, the board also includes four SATA 6Gb/s connectors. Both the NVMe and SATA storage interfaces support comprehensive RAID 0, RAID 1, and RAID 10 configurations, providing options for either maximized data transfer speeds or mirrored data redundancy.

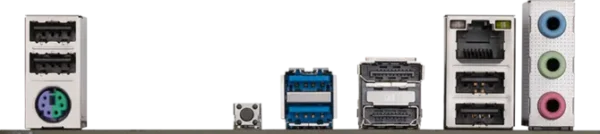

Networking is handled by a robust Realtek® GbE LAN chip, which provides a fast and stable wired internet connection essential for competitive online gaming and large file transfers. To ensure the best possible online experience, GIGABYTE includes a network bandwidth management application that actively prioritizes gaming packets, helping to improve network latency and maintain low ping times even in crowded network environments. For peripheral connectivity, the board offers a versatile array of USB ports, including high-speed USB 3.2 Gen 1 ports natively supported by both the CPU and the chipset, ensuring rapid data transfer to external drives and seamless operation of high-end accessories.

Advanced Cooling and Audio Fidelity

Thermal management is elegantly handled by the Smart Fan 6 ecosystem. This intuitive hardware and software combination features multiple temperature sensors placed strategically across the board and three hybrid fan headers that support both PWM and DC fans, as well as water cooling pumps (up to 24W). The Smart Fan 6 BIOS interface provides precision control over fan curves, including a unique Slope/Stair dual-mode for different acoustic scenarios. The Fan Stop feature allows fans to halt completely when system temperatures fall below a specified threshold, providing a completely silent operating environment during light workloads like web browsing or media playback.

On the audio front, the B650M H delivers a premium Hi-Fi experience utilizing a Realtek® Audio CODEC. It features High-End Audio Capacitors that help deliver high-resolution and high-fidelity sound, providing gamers and audiophiles with incredibly realistic audioscapes. To maintain the purity of the sound signal, GIGABYTE implements an Audio Noise Guard. This physical isolation on the PCB level separates the board’s sensitive analog audio components from potential digital noise pollution generated by other motherboard components, ensuring crystal-clear audio output across up to 7.1 channels.

Builder-Friendly Features and System Customization

GIGABYTE has prioritized the user experience with several Easy Friendly innovations. The PCIe EZ-Latch on the primary PCIe 4.0 x16 slot allows builders to easily unlock and remove heavy modern graphics cards without struggling in tight spaces. Perhaps most conveniently, the Q-Flash Plus button allows for effortless BIOS updates. Users can flash a new BIOS version using only a USB drive and the power supply, without ever needing to install a CPU, memory, or graphics card—a crucial feature when building with newly released processors.

System customization is centralized through the GIGABYTE Control Center (GCC), a unified software platform that provides an intuitive interface for controlling all essential motherboard functions. For aesthetic personalization, the board includes both an Addressable LED strip header and a standard RGB LED strip header, allowing users to sync their system lighting via RGB FUSION. Built with GIGABYTE Ultra Durable™ components, the B650M H guarantees a prime performance platform that combines lasting durability, cutting-edge speed, and builder-centric conveniences in a compact Micro-ATX form factor.
