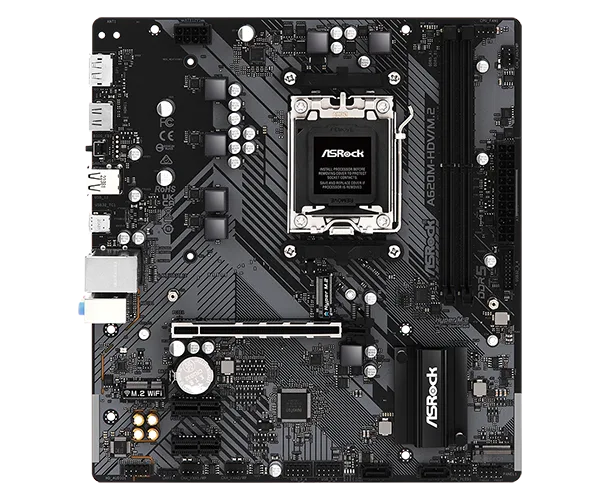

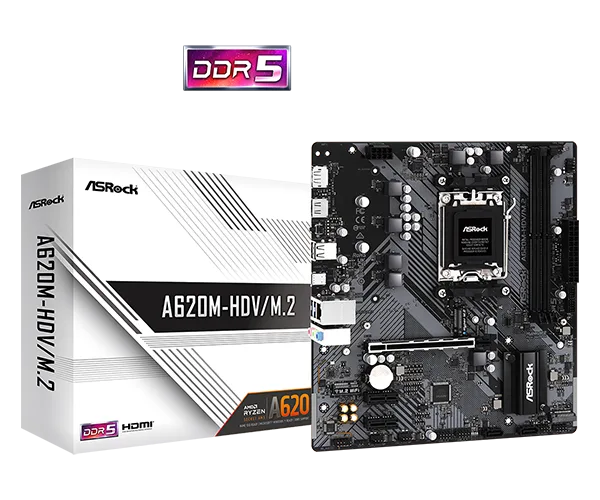

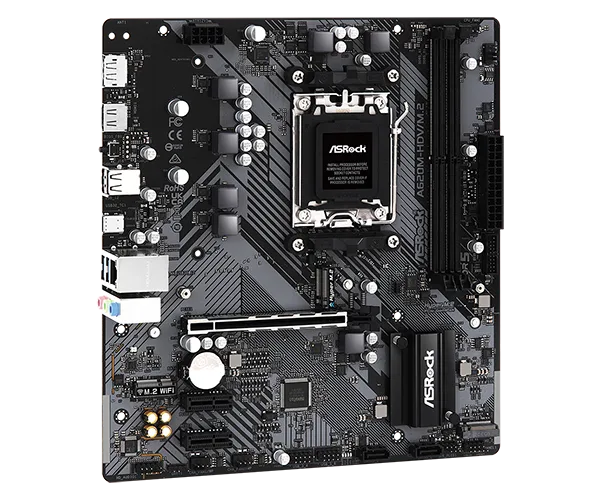

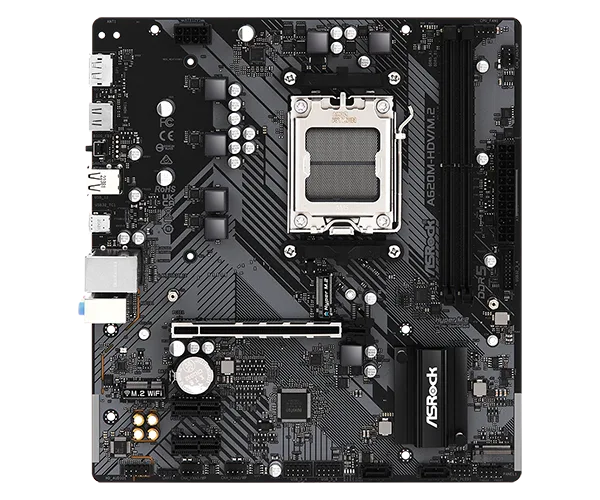

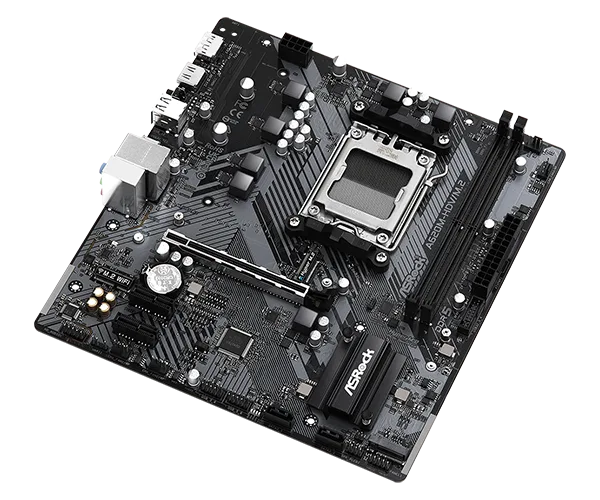

ASRock A620M-HDV/M.2 Micro ATX Motherboard w/ AM5 Socket, DDR5 Memory Support


- Supports AMD Ryzen™ 9000, 8000, and 7000 Series Processors on AM5 Socket
- Dual Channel DDR5 with speeds up to 6400+(OC) for high-performance computing
- PCIe 4.0 x16 slot for advanced graphics and high-speed storage support
- Integrated AMD RDNA™ Graphics with HDMI 2.1 and DisplayPort 1.4 (4K 120Hz)
- 7.1 Channel HD Audio with Realtek ALC897 and Nahimic Audio for immersive sound
- Gigabit LAN for reliable and high-speed networking
- BIOS Flashback Button and ASRock Auto Driver Installer for easy updates
- Compact Micro ATX form factor with durable 2oz Copper PCB construction
Description
The ASRock A620M-HDV/M.2 Micro ATX Motherboard is designed for users seeking exceptional performance and stability. Built on the AMD A620 chipset, it supports the latest AMD Ryzen™ 9000, 8000, and 7000 Series processors, providing seamless multitasking and gaming experiences. With dual-channel DDR5 memory, it allows for high-speed data processing and improved efficiency.
This motherboard features a 4+1+1 power phase design with 50A Dr.MOS for VCore, ensuring rock-solid durability and stable power delivery. Its integrated AMD RDNA™ graphics supports 4K 120Hz via HDMI 2.1 and DisplayPort 1.4, offering stunning visuals. High-definition audio powered by Realtek ALC897 and Nahimic Audio ensures immersive sound quality.
Designed for easy setup and maintenance, the board includes an EZ Update system with a BIOS Flashback Button and ASRock Auto Driver Installer. Troubleshooting is effortless with ASRock Post Status Checker, helping users diagnose issues quickly. Connectivity is enhanced with Gigabit LAN, multiple USB 3.2 ports, and PCIe 4.0 support, making it an ideal choice for a modern computing setup.
Specification | Details |
---|---|
Unique Features | Superb Productivity - Dual Channel DDR5 Rock-Solid Durability - 4+1+1 Power Phase, 50A Dr.MOS for VCore EZ Update - BIOS Flashback Button, ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker |
CPU Support | AMD Socket AM5 Ryzen™ 9000, 8000, and 7000 Series Processors |
Chipset | AMD A620 |
Memory | Dual Channel DDR5, 2 x DIMM Slots Supports up to 6400+(OC) MHz, 128GB Max Capacity Supports XMP & EXPO Memory Profiles |
Graphics | Integrated AMD RDNA™ Graphics (Varies by CPU) HDMI 2.1 (4K 120Hz), DisplayPort 1.4 (4K 120Hz) |
Audio | 7.1 CH HD Audio (Realtek ALC897), Nahimic Audio |
LAN | Gigabit LAN (Realtek RTL8111H) |
Expansion Slots | 1 x PCIe 4.0 x16 (CPU), 2 x PCIe 3.0 x1 (Chipset) 1 x M.2 Key E for WiFi Module |
Storage | 1 x PCIe Gen4x4 M.2, 1 x PCIe Gen3x2/SATA M.2 2 x SATA3 (6 Gb/s) |
RAID Support | RAID 0, 1 (SATA); RAID 0, 1, 10 (NVMe) |
USB Ports | Rear: 1 x USB 3.2 Gen1 Type-C, 2 x USB 3.2 Gen1, 2 x USB 2.0 Front: 2 x USB 3.2 Gen1, 4 x USB 2.0 |
Rear I/O | HDMI, DisplayPort, USB Type-C, USB 3.2 Gen1, USB 2.0, RJ-45 LAN, Audio Jacks |
Form Factor | Micro ATX (9.6" x 8.9"), 2oz Copper PCB |
OS Compatibility | Windows 10 64-bit, Windows 11 64-bit |
Additional information
Weight | 1 kg |
---|---|
Dimensions | 28 × 27 × 6 cm |
Brand | ASROCK |
Socket | AM5 CPU |
Desktop RAM | DDR5 |
