₱21,100.00Original price was: ₱21,100.00.₱18,350.00Current price is: ₱18,350.00.
Supports 12th/13th/14th Gen Intel Core, Pentium Gold, Celeron (LGA 1700)
4x DDR5 up to 192GB, 6400+ MHz (OC), Dual-Channel
Direct 16+1+1 phases power, Core Boost, Memory Boost
Premium thermal solution with aluminum cover, M.2 Shield Frozr
4x M.2 (1x Lightning Gen 4), 6x SATA 6Gb/s, RAID 0/1/5/10
Intel Wi-Fi 6E, 2.5G LAN, USB 3.2 Gen 2×2
Audio Boost 5 with Realtek ALC4080 Codec
Mystic Light with 16.8M colors, CrossFire support
ATX form factor, SKU: MPG Z690 EDGE WIFI
In stock
ℹ️
For walk-in customers: please always INQUIRE FIRST before visiting as not all items are displayed in our physical store. As an online-first store, most of our inventory is held in our online warehouse and is transferred to the store upon request.

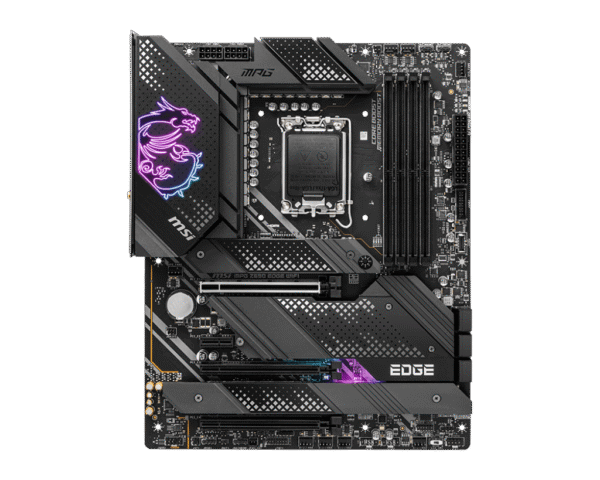

The MSI MPG Z690 EDGE WIFI motherboard delivers exceptional performance for gaming and professional applications, supporting 12th, 13th, and 14th Gen Intel Core, Pentium Gold, and Celeron processors on the LGA 1700 socket. Its ATX design supports up to 192GB of DDR5 memory at 6400+ MHz with overclocking, enhanced by Memory Boost and XMP 3.0 for world-class speed and stability. The enhanced power design, featuring direct 16+1+1 phases and dual 8-pin CPU connectors, optimizes multi-core performance. A premium thermal solution with an aluminum cover, heat-pipe, 7W/mk MOSFET thermal pads, and M.2 Shield Frozr ensures sustained high performance. Four M.2 slots, including one Lightning Gen 4 x4, paired with six SATA 6Gb/s ports and RAID support, provide versatile storage. Connectivity excels with Intel Wi-Fi 6E, 2.5G LAN with LAN Manager, and USB 3.2 Gen 2×2 for rapid data transfer. Audio Boost 5 with Realtek ALC4080 Codec delivers immersive sound, while Mystic Light offers 16.8 million colors for stunning customization. The 6-layer PCB with 2oz thickened copper and pre-installed I/O shield enhance durability and ease of installation for gamers and enthusiasts.
4x DDR5, up to 192GB, 6400+(OC)/6200(OC)/6000(OC)/5800(OC)/5600(JEDEC)/5400(JEDEC)/5200(JEDEC)/5000(JEDEC)/4800(JEDEC) MHz, Dual-Channel
Onboard Graphics
1x HDMI, 1x DisplayPort, DirectX 12
Expansion Slots
3x PCIe x16, 1x PCIe x1, supports CrossFire
Audio
Realtek ALC4080 Codec, 5+ Optical S/PDIF
Storage
4x M.2 (1x Lightning Gen 4 x4), 6x SATA 6Gb/s, RAID 0/1/5/10
USB
1x USB 3.2 Gen 2 Type C (Front), 2x USB 3.2 Gen 1 Type A (Front), 1x USB 3.2 Gen 2x2 Type C (Rear), 5x USB 3.2 Gen 2 Type A (Rear), 4x USB 2.0 (Front), 2x USB 2.0 (Rear)
LAN
2.5G LAN with LAN Manager
WiFi & Bluetooth
Intel Wi-Fi 6E module
Back Panel Ports
HDMI, DisplayPort, 1x USB 3.2 Gen 2x2 Type C, 5x USB 3.2 Gen 2 Type A, 2x USB 2.0, 5+ Optical S/PDIF Audio ports, LAN
Operating System
Windows 11 64-bit, Windows 10 64-bit
Form Factor
ATX, 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Weight
2.19 kg
Dimensions
35 × 28 × 8 cm
Brand
MSI
Desktop RAM
DDR5
Socket
LGA 1700 CPU
