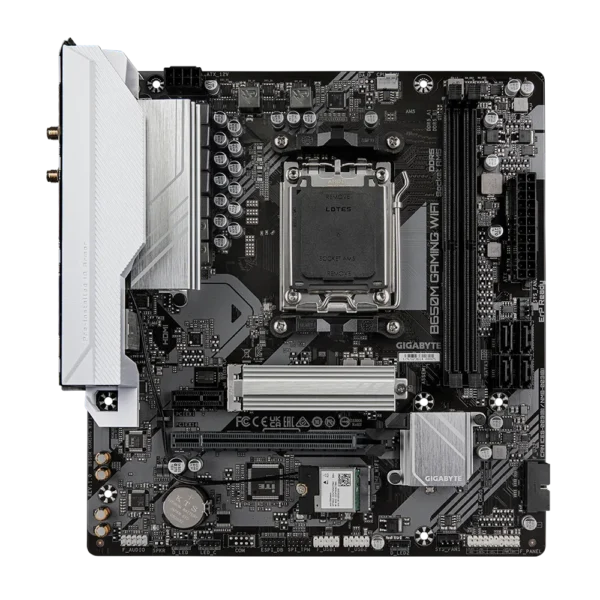

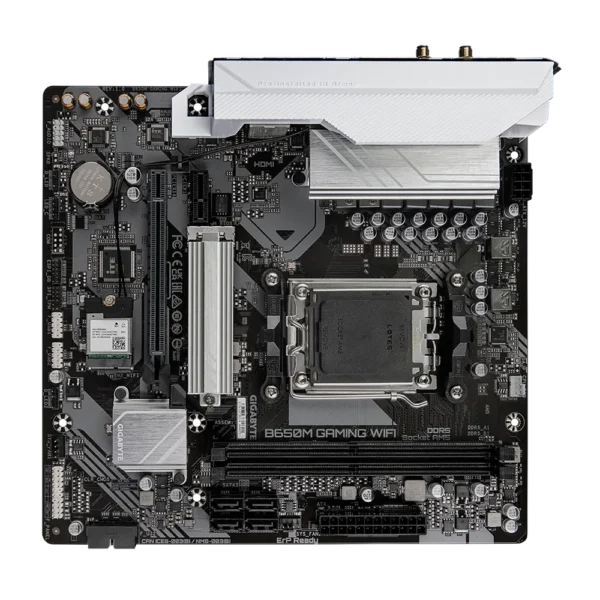

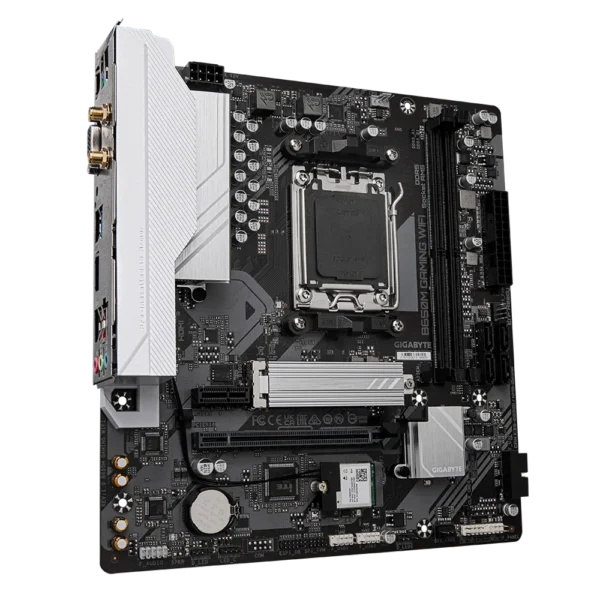

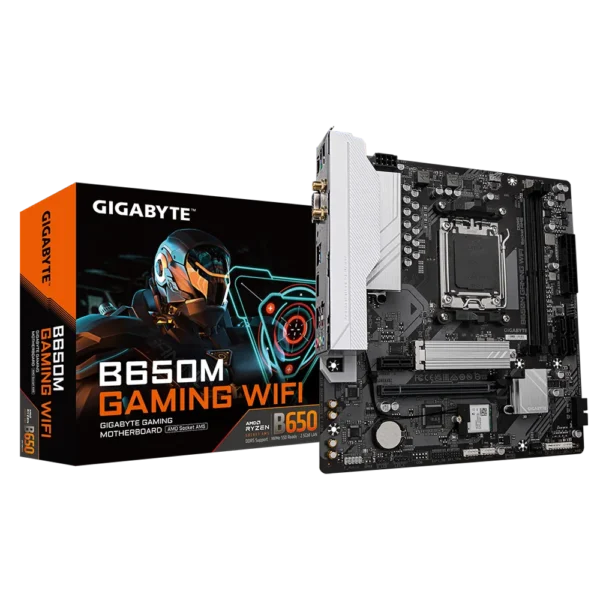

Build a compact, high-performance AMD PC with the GIGABYTE GA-B650M-GAMING-WIFI, a Micro-ATX motherboard designed for AMD Ryzen™ 7000, 8000, and 9000 Series processors. Featuring the AMD B650 chipset, it supports up to 128GB of DDR5 memory at speeds up to 6400MT/s (OC) with AMD EXPO and XMP for superior performance. The PCIe 4.0 x16 slot supports GPUs like the AMD Radeon RX 7600. One M.2 slot (PCIe 4.0 x4) delivers storage speeds up to 64Gbps. A 6+2+1 phase VRM ensures stable power for CPUs like the Ryzen 5 7600. Wi-Fi 5 and 2.5GbE LAN provide connectivity, while dual-display support (HDMI 2.1, D-Sub) adds versatility. Q-Flash Plus simplifies BIOS updates, and RGB Fusion 2.0 offers customizable lighting. Ideal for budget-conscious AMD gaming builds.
Specification
Details
Model
GIGABYTE GA-B650M-GAMING-WIFI
CPU
AM5: AMD Ryzen™ 7000/8000/9000 Series Processors
Chipset
AMD B650 Chipset
Memory
2 x DDR5 DIMM, up to 128GB, 6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s, Non-ECC Un-buffered, Dual Channel, AMD EXPO, XMP
Onboard Graphics
1 x HDMI (4096x2160@60Hz, HDMI 2.1, HDCP 2.3), 1 x D-Sub (1920x1200@60Hz), Dual-Display Support
Expansion Slots
CPU: 1 x PCIe 4.0 x16 (x16/x8/x4 modes); Chipset: 1 x PCIe 3.0 x1
Storage
CPU: 1 x M.2 (2580/2280, PCIe 4.0 x4/x2); 4 x SATA 6Gb/s; RAID 0/1/10 (NVMe/SATA)
Audio
Realtek Audio CODEC, 7.1-channel
LAN
Realtek 2.5GbE (2.5 Gbps/1 Gbps/100 Mbps)
Wireless
AzureWave Wi-Fi AW-CB304NF (802.11ac, 2.4/5GHz), Bluetooth 4.2
USB
Rear: 2 x USB 3.2 Gen 1, 4 x USB 2.0; Front: 1 x USB 3.2 Gen 1 header (2 ports), 2 x USB 2.0 headers (4 ports)
Internal I/O Connectors
1 x 24-pin ATX, 1 x 8-pin 12V, 1 x CPU Fan, 2 x System Fan, 2 x ARGB, 1 x RGB, 1 x M.2, 4 x SATA 6Gb/s, 1 x Front Panel, 1 x Front Panel Audio, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers, 1 x TPM, 1 x Clear CMOS Jumper

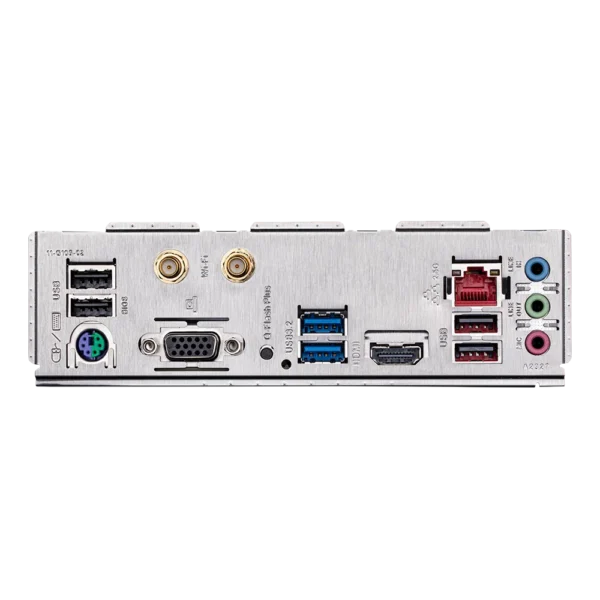

Back Panel Connectors
4 x USB 2.0, 1 x PS/2 Keyboard/Mouse, 1 x D-Sub, 1 x Q-Flash Plus Button, 2 x USB 3.2 Gen 1, 1 x HDMI, 1 x RJ-45, 3 x Audio Jacks
I/O Controller
iTE I/O Controller Chip
H/W Monitoring
Voltage, Temperature, Fan Speed, Water Cooling Flow Rate, Fan Fail Warning, Fan Speed Control
BIOS
256 Mbit AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
GIGABYTE Control Center, Q-Flash, Q-Flash Plus
Bundled Software
Norton Internet Security (OEM), LAN Bandwidth Management
Operating System
Windows 11 64-bit, Windows 10 64-bit
Form Factor
Micro-ATX, 24.0 x 22.5 cm
Notes
Check CPU/Memory support at www.gigabyte.com
Packaging Weight
1.7 kg
Packaging Dimensions (L×W×H)
31 × 29 × 8 cm
Brand
Gigabyte
Desktop RAM
DDR5
Socket
AM5 CPU
